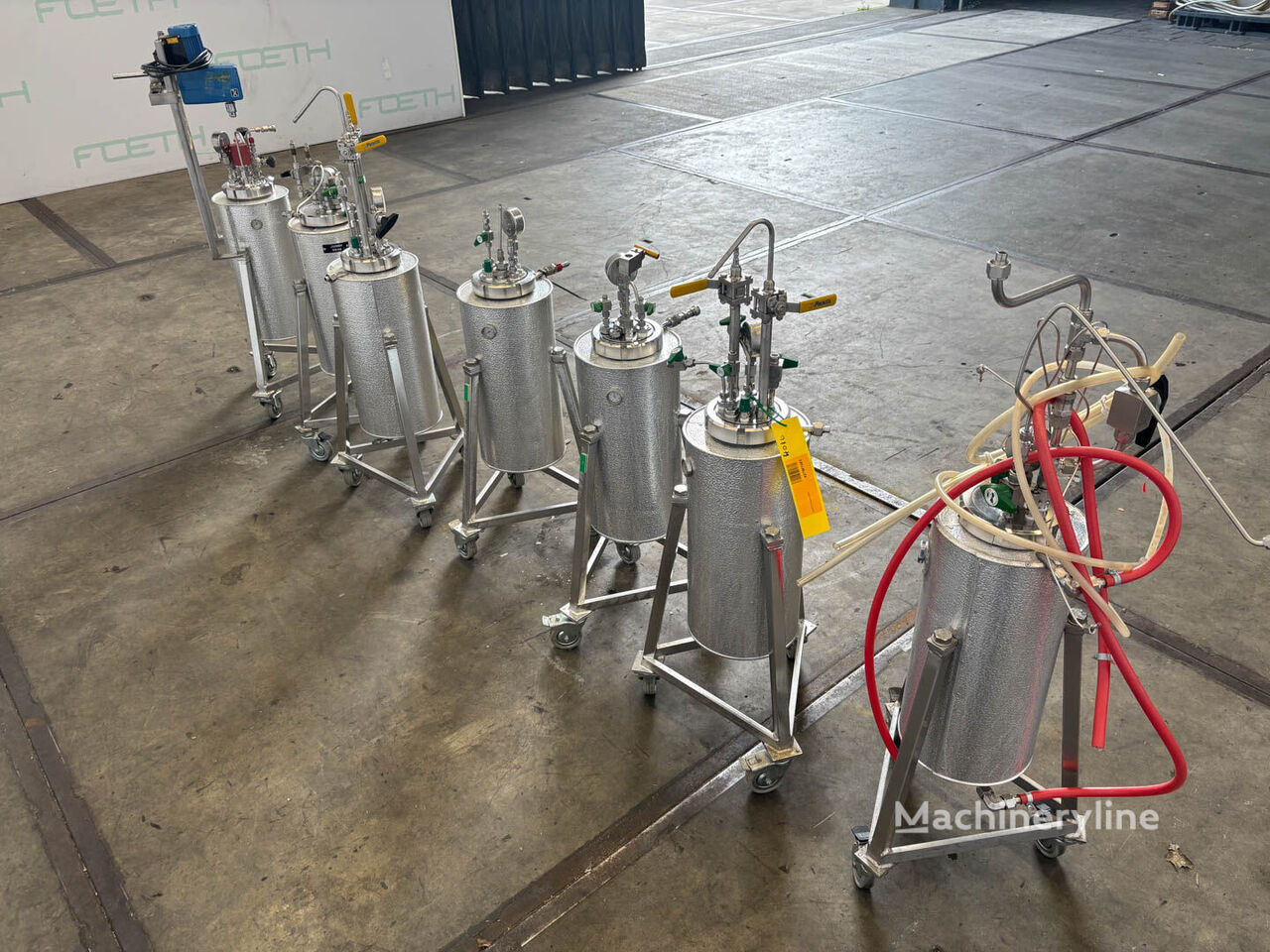

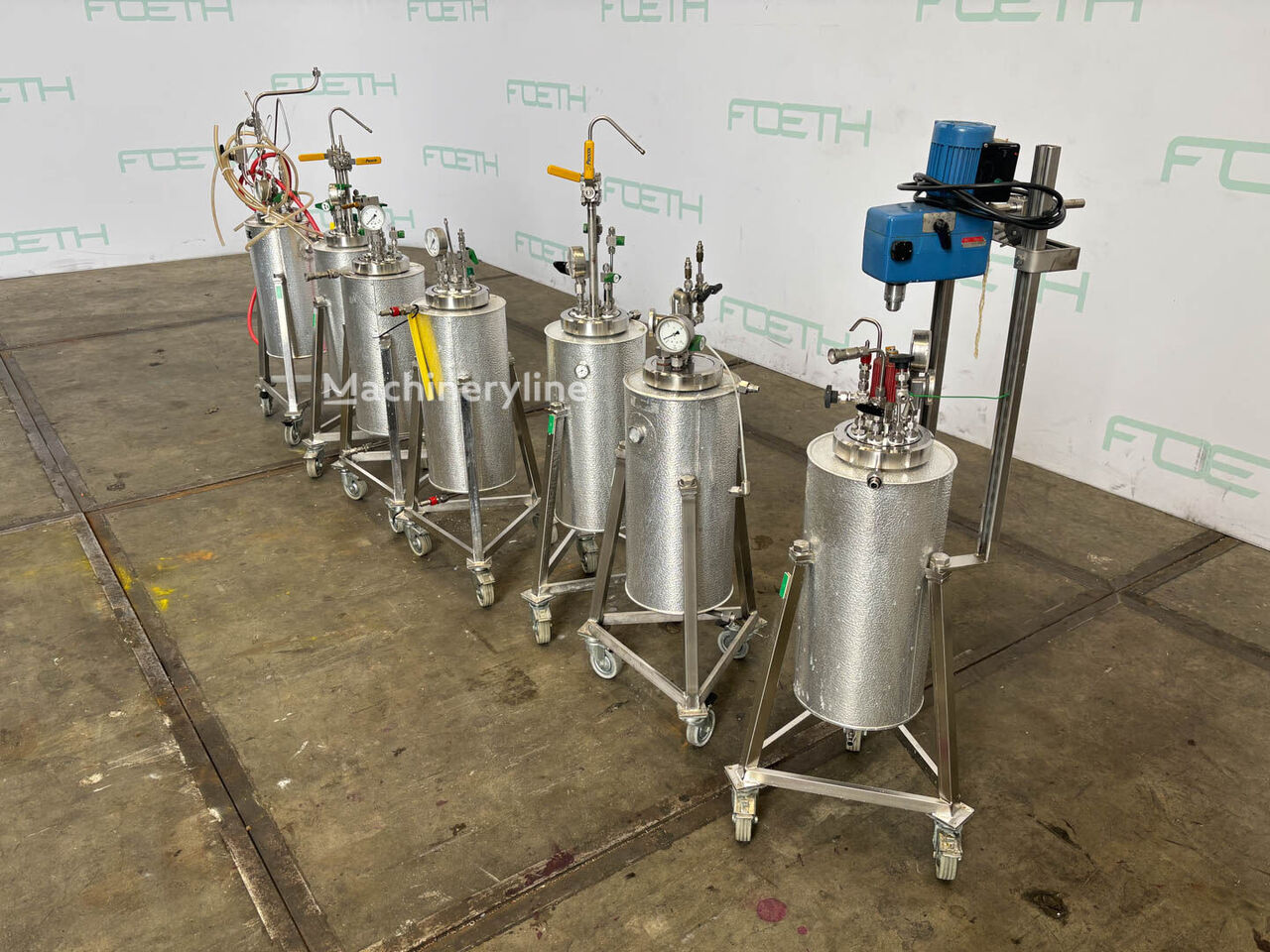

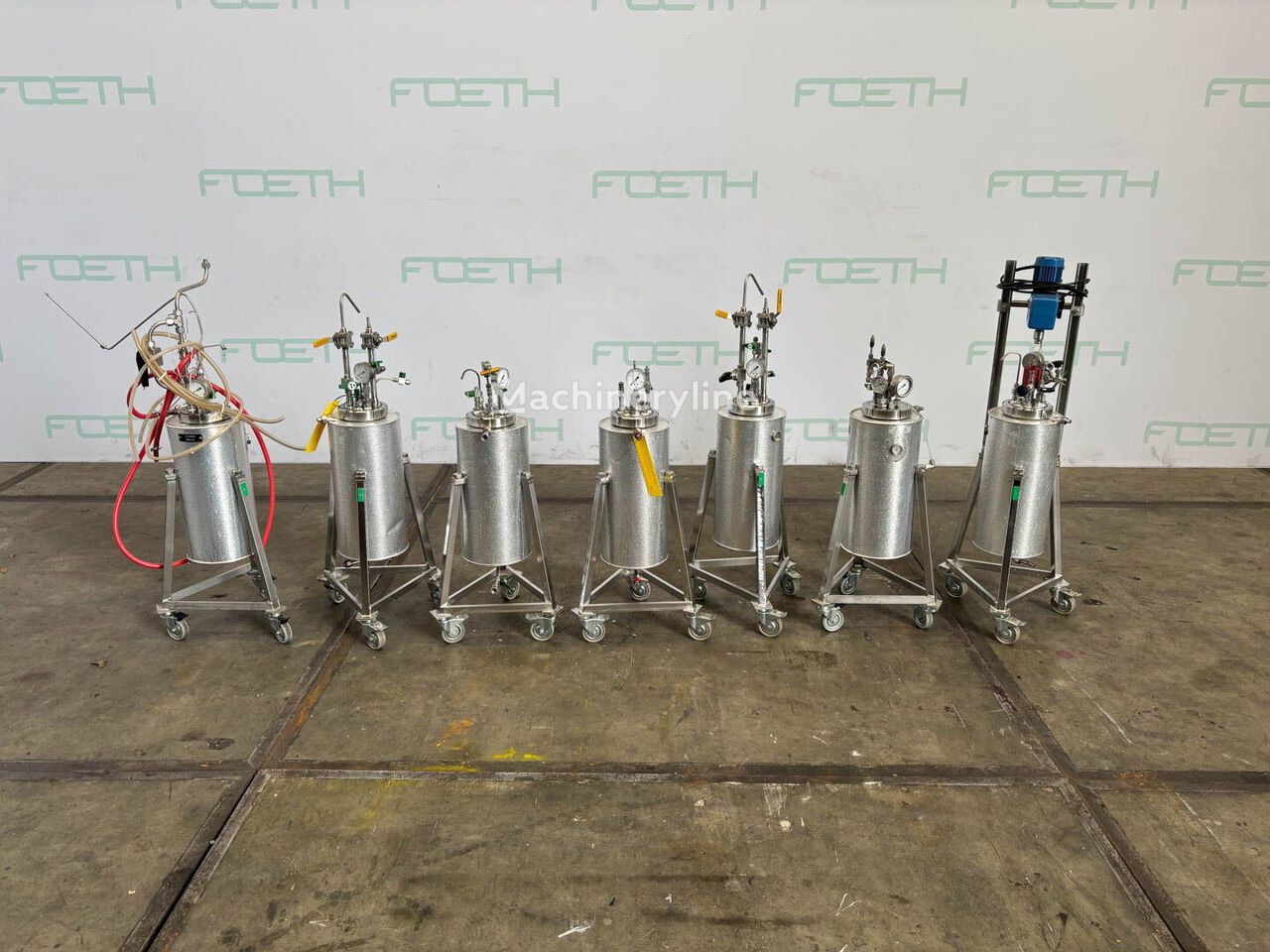

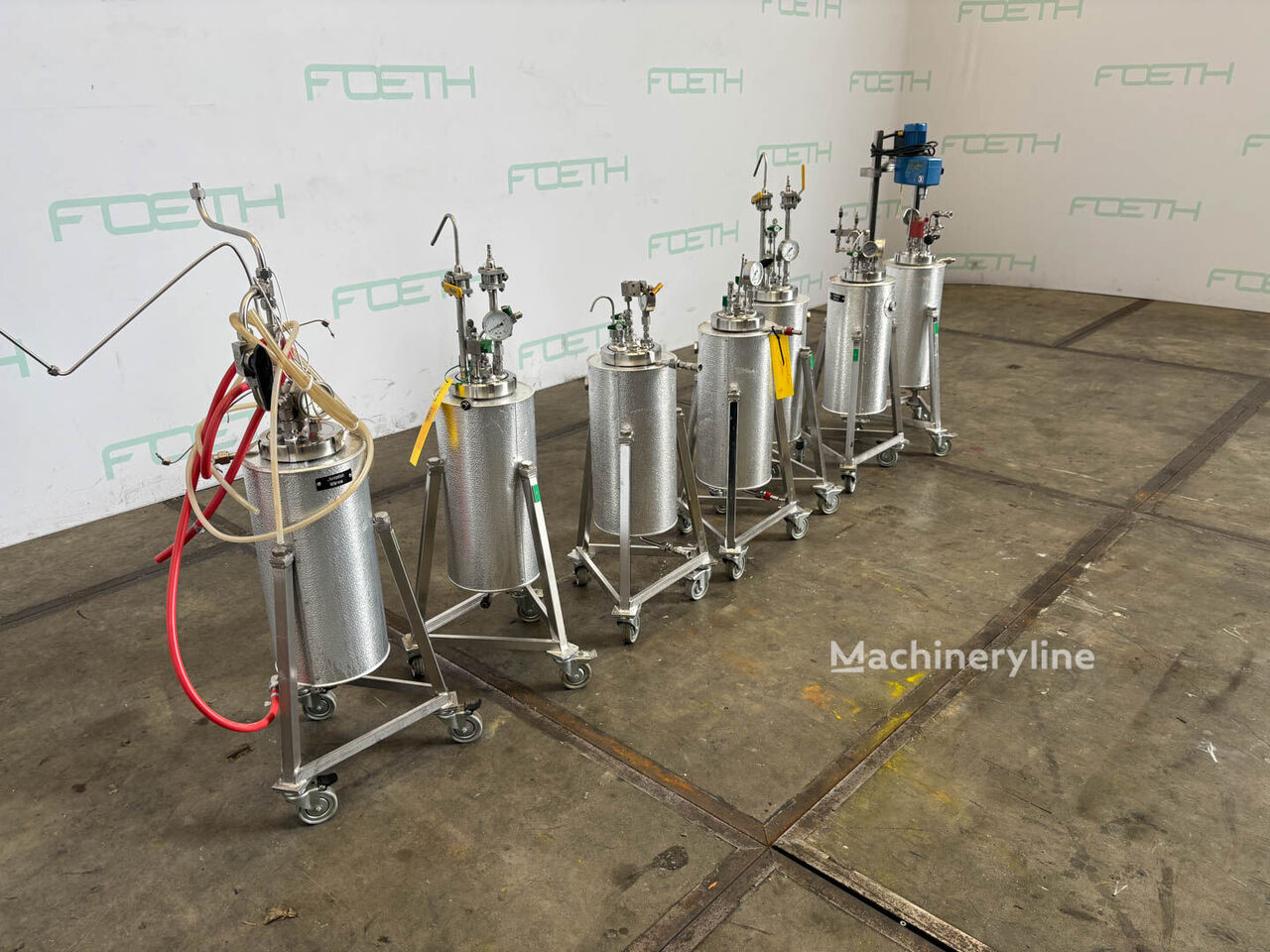

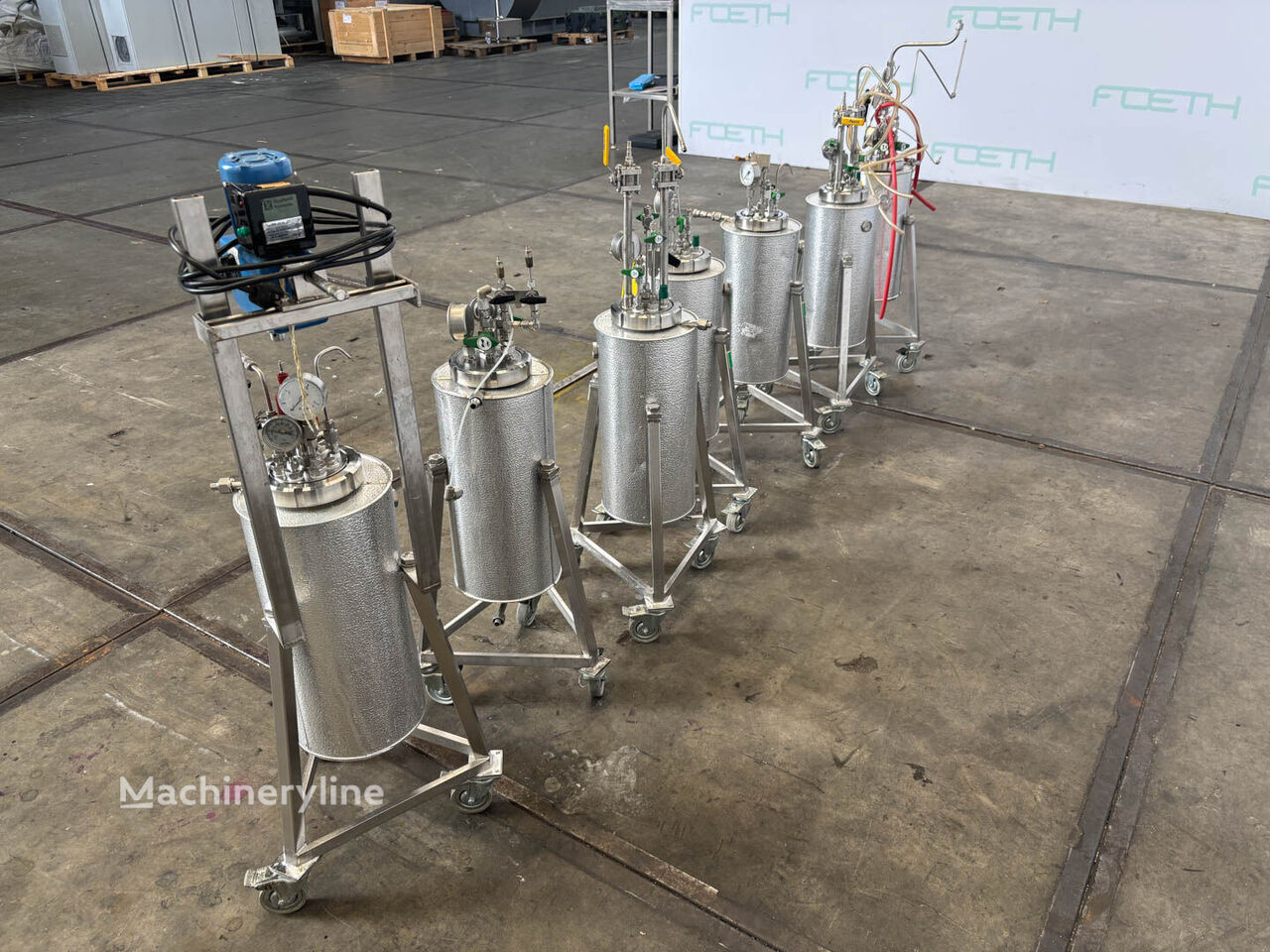

7x 20l Pressure vessel Tank Container()
- Listing No
- 1177776
- Year
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Working pressure jacket: 10 Bar Material: Stainless steel 1.4401 (316) Volume: 20 Ltr Pressure: 10 Bar Capacity: 20 l Vessel sizes: Dia. 120x390 mm Dished bottom: check With cover: check Top connections: check With jacket: check With propellor stirrer: check Motor: 60watt, 220V, 25-2000rpm Speed mixing shaft: 25-2000rpm Mounted on legs: On wheels Floorspace: 0,40x0,40 m Total height: 1,10 m Extra Specifications: 7 pieces, with pressure gauge 1x with Ika stirrer netto gewicht: 7x 40kg jaar: unknown General Pressure Main Features Specified Features - Pressure vessel Information
About this machine
This listing comprises seven used pressure vessels — also known as pressure tanks or autoclave vessels — of the type used in process industries for mixing, storing, and handling pressurised liquids or gases. Each unit is a jacketed, agitated pressure vessel suitable for laboratory-scale or small-batch process applications where controlled mixing under pressure is required.
Each vessel offers a volume of 20 litres, with a cylindrical body measuring 120 mm in diameter and 390 mm in length, and is fabricated from stainless steel grade 1.4401 (AISI 316), making it well suited to corrosive or hygienic process environments. Both the vessel and its jacket are rated to a working pressure of 10 bar, enabling pressurised processing as well as heating or cooling via the jacket. Each vessel is fitted with a dished bottom, a removable cover, top connections, and a pressure gauge for monitoring operating conditions.
A propeller stirrer is integrated into each unit, driven by a 60-watt motor operating on 220 V single-phase power. The mixing shaft speed is variable across a wide range of 25 to 2,000 rpm, allowing adjustment to suit different product viscosities and process requirements. One of the seven units is equipped with an IKA stirrer rather than the standard propeller drive.
Each vessel is mounted on legs fitted with wheels, giving a floor footprint of 0.40 × 0.40 metres and a total standing height of 1.10 metres, making the units easily repositionable within a facility. The net weight of each vessel is approximately 40 kg. The year of manufacture is not known. All seven vessels are located in Barneveld, Netherlands, and are offered as a single lot.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
