1998 - A. Berents Becomix MV300 – Processing vessel Tank Container()
- Listing No
- 1178286
- Year
- 1998
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: Becomix MV 300 No: 030/4-646 ( no type plate) Working pressure: 3 Bar Vacuum possible: check Working pressure jacket: 6 Bar Material: Stainless steel 1.4571 (316Ti) Volume: 400 Ltr Motor: 5,5 kW, 220/380 volt, 2870 rpm Closed stirring vessel: check Capacity: 400 l., (300 l.) Vessel sizes: Dia. 1000x850 mm Dished bottom: check Manhole: DN 450 Top connections: check Outlet: DN40 With jacket: check 28 l Max. temperature: 144°C With homogeniser: check Mounted on legs: check Floorspace: 1,50x1,00 m Total height: 2,0 m Extra Specifications: With ball spray cleaner, pressure meter, valves, load cells(as is), pressure vessel, cap. 4 l merk: A. Berents General Pressure Main Features Specified Features - Processing vessel Information
About this machine

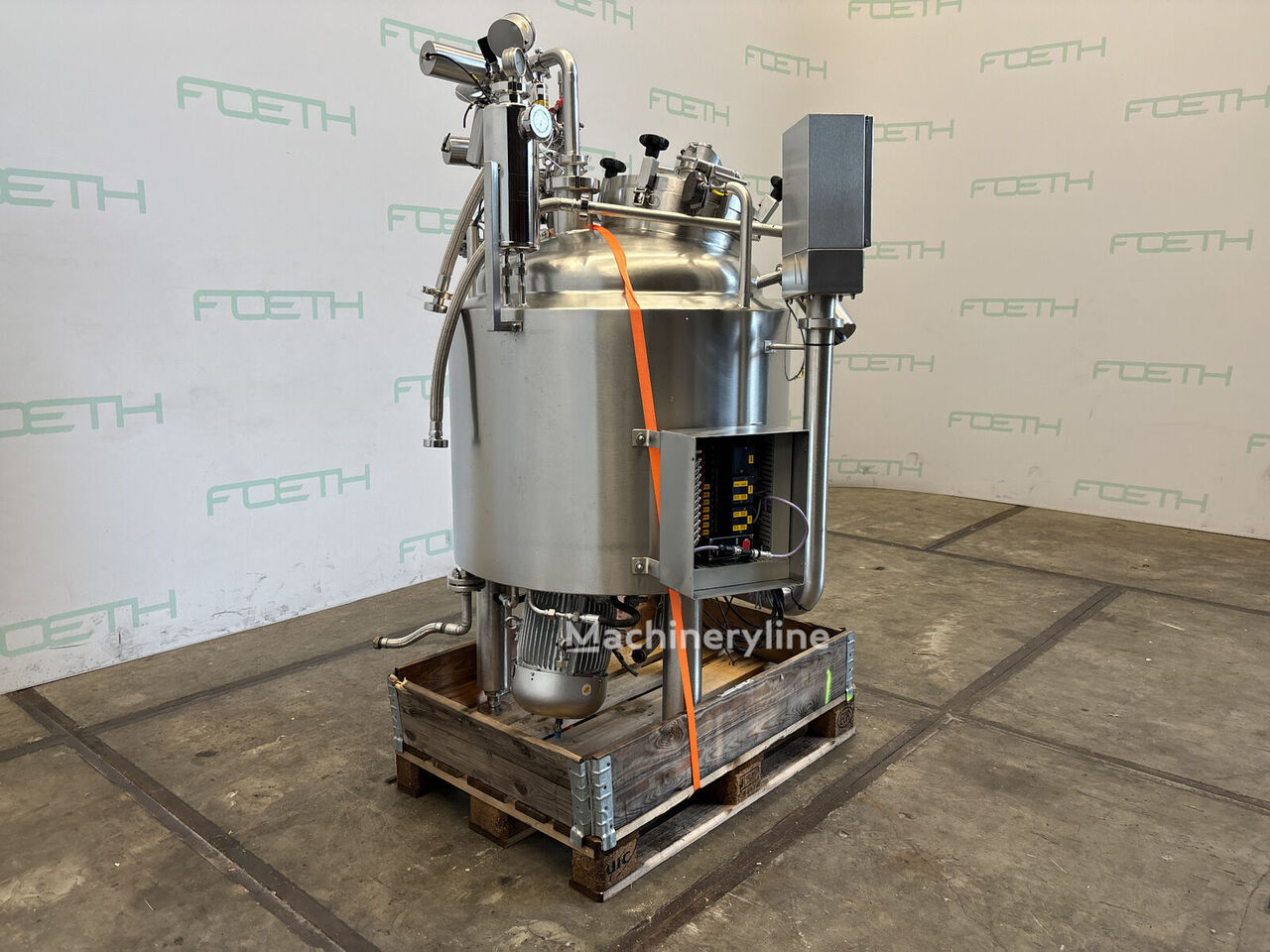

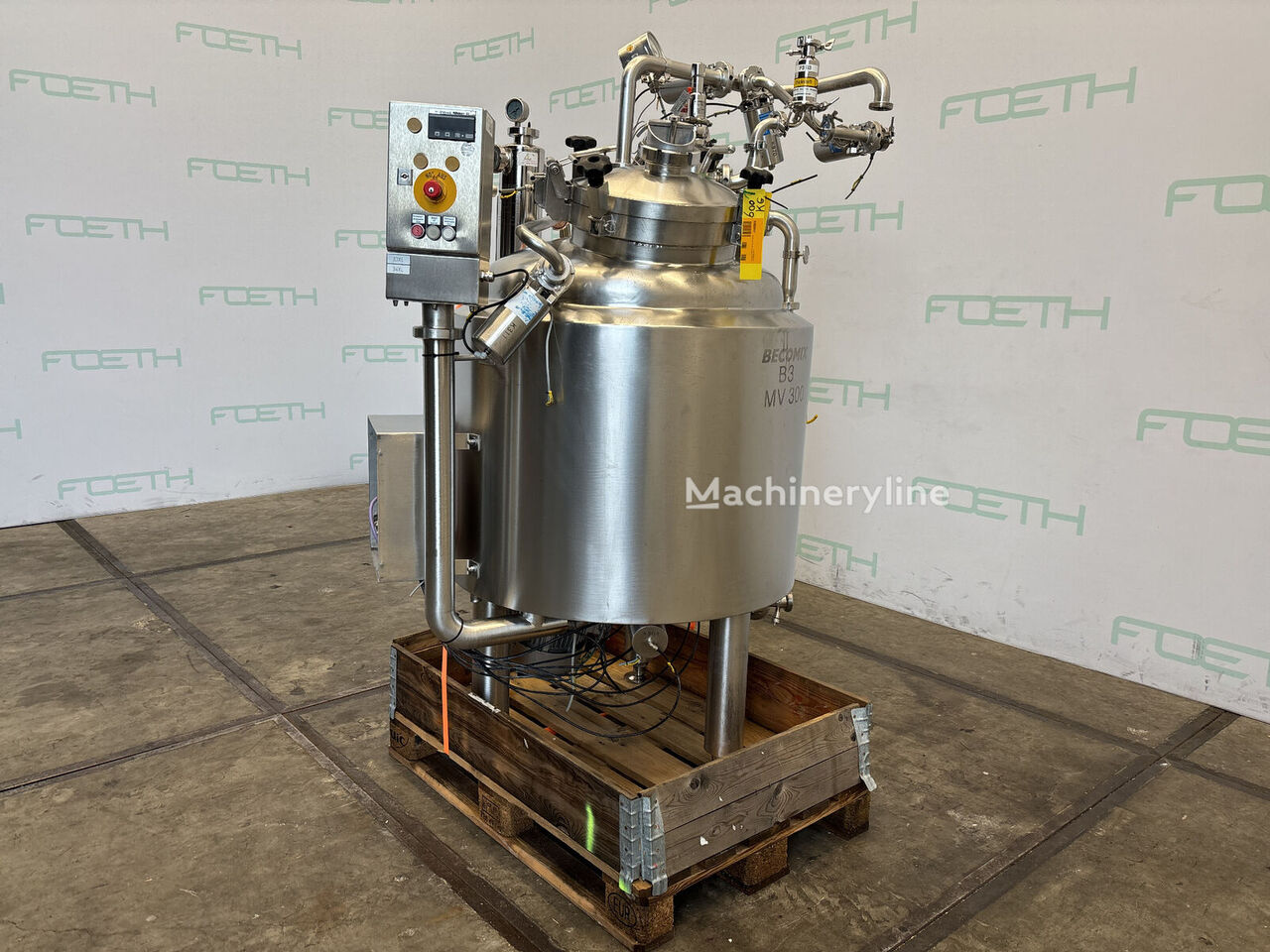

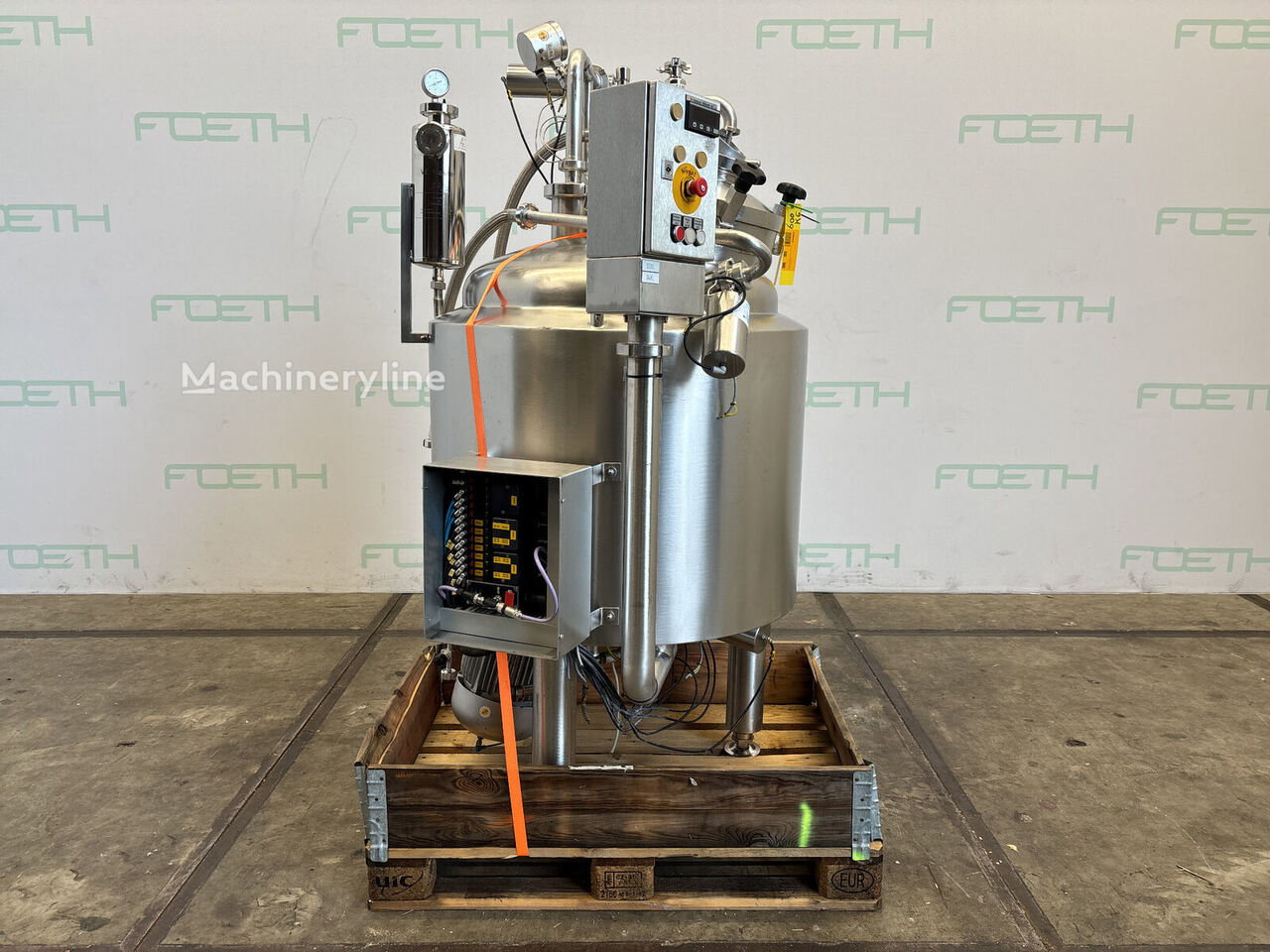

This A. Berents Becomix MV300 is a used tank and container — a closed, jacketed processing vessel designed for mixing, heating, and homogenising liquid and semi-liquid products under controlled pressure and temperature conditions. Machines of this type are sometimes referred to as mixing vessels or process tanks, and are widely used in the food, pharmaceutical, cosmetics, and chemical industries wherever precise, hygienic processing in a sealed, pressurised environment is required. A. Berents is a Dutch manufacturer with a long-standing reputation for building stainless steel processing and mixing equipment for these industries.
The vessel is constructed entirely from stainless steel grade 1.4571 (the equivalent of AISI 316Ti), a titanium-stabilised austenitic alloy chosen for its corrosion resistance and suitability for demanding process environments. The total volume is 400 litres, with a nominal working capacity of 300 litres. The vessel body measures 1,000 mm in diameter by 850 mm tall, with a dished bottom, and is mounted on legs giving a total installation height of 2.0 metres and a floor footprint of 1.50 × 1.00 metres.

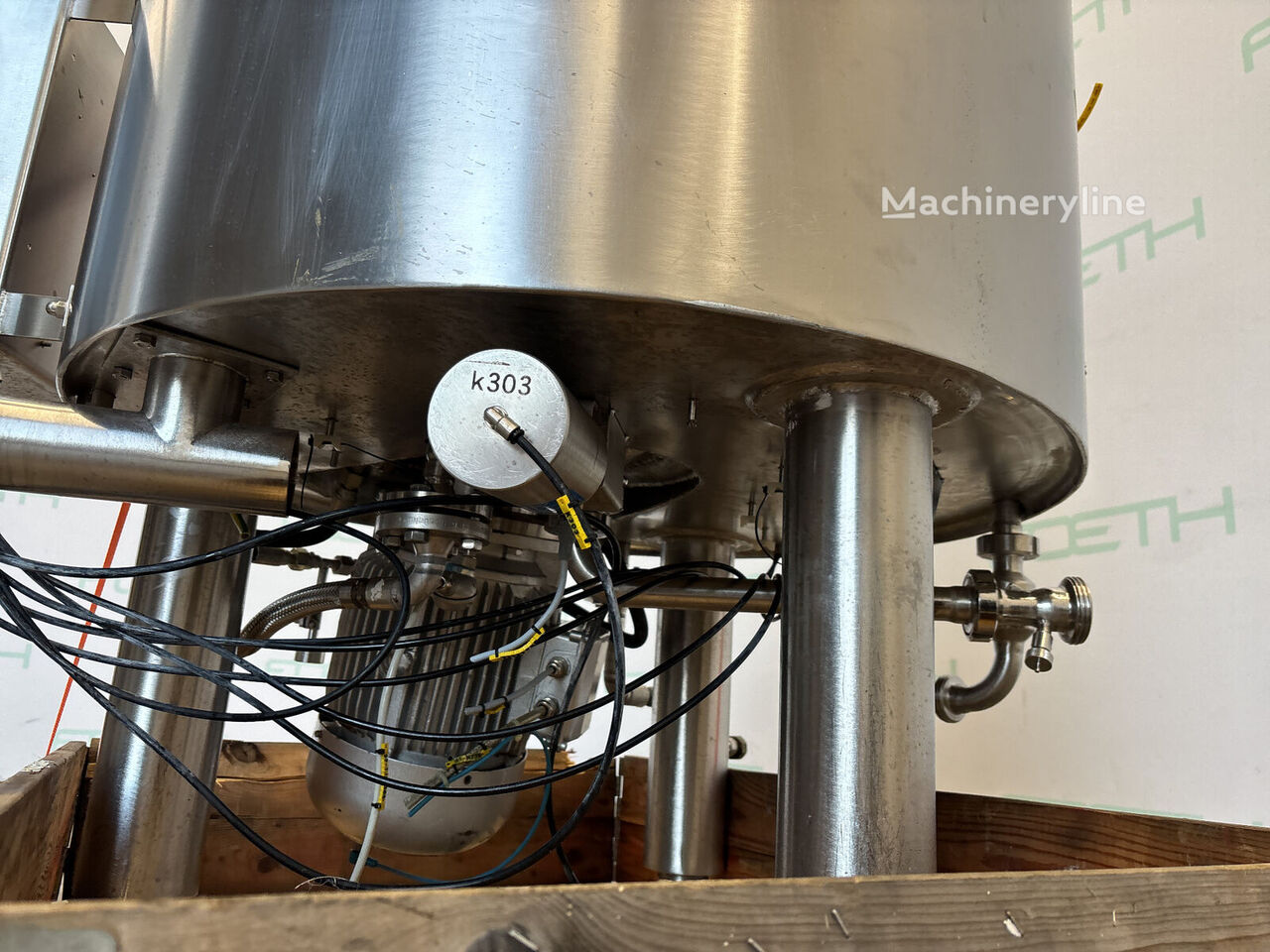

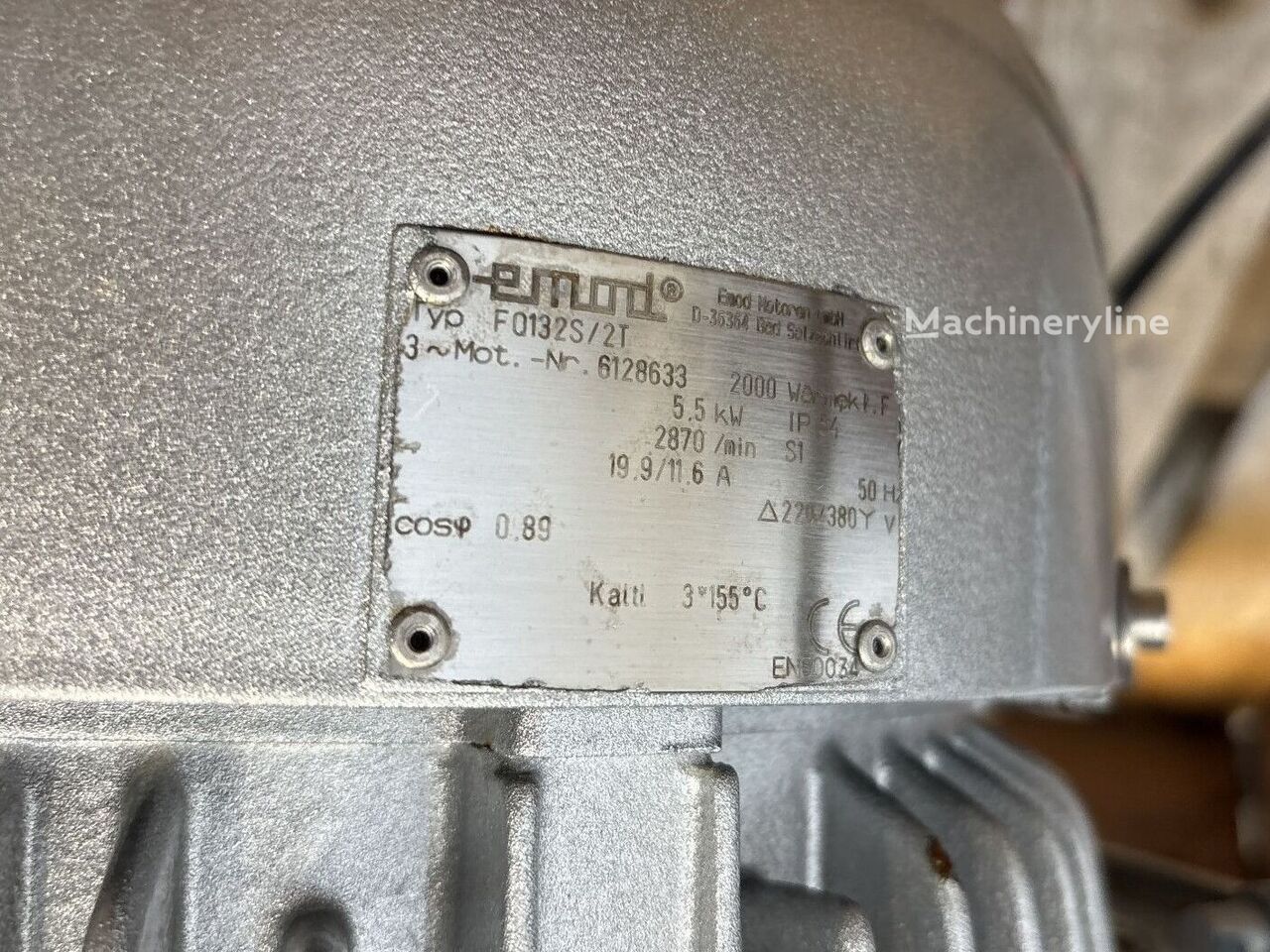

The vessel operates at a working pressure of 3 bar and is vacuum-capable. The heating and cooling jacket, which holds 28 litres, is rated to a working pressure of 6 bar, and the maximum process temperature is 144°C. The main drive motor is rated at 5.5 kW, running on 220/380 V at 2,870 rpm. A built-in homogeniser is fitted, extending the vessel's capability to fine emulsification and dispersion tasks. Access is provided via a DN 450 manhole, with a DN 40 product outlet and additional top connections.
Included with the vessel are a ball spray cleaner for CIP (clean-in-place) washing, a pressure gauge, process valves, and load cells (supplied as-is). A separate pressure vessel with a capacity of 4 litres is also part of the package. The unit carries serial number 030/4-646; note that the type plate is absent. This vessel was manufactured in 1998 and is located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
