1999 - Ana-GmbH Tank Container()
- Listing No
- 1177423
- Year
- 1999
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 8020 84/2 Working pressure: 3 Bar Vacuum possible: check Working pressure jacket: 10 Bar Material: Stainless steel 1.4571 (316Ti) Volume: 450 Ltr Pressure: 3 Bar Vacuum: check Closed vertical tank: check Notified body: TÜV Capacity: 450 ltr Vessel sizes: 800x1100 mm Dished top: check Dished bottom: check Top connections: DN 25 Outlet: DN50 Max. temperature: 20ºC/+180ºC With jacket: check Internal heating spiral: checkSurface 1,8 m², volume 30 Ltr, max allowable work pressure -1/+10 bar Mounted on legs: check Floorspace: 0,95x0,95 m Total height: 1,75 m merk: Ana-GmbH General Pressure Main Features Specified Features - Vertical tank Information
About this machine

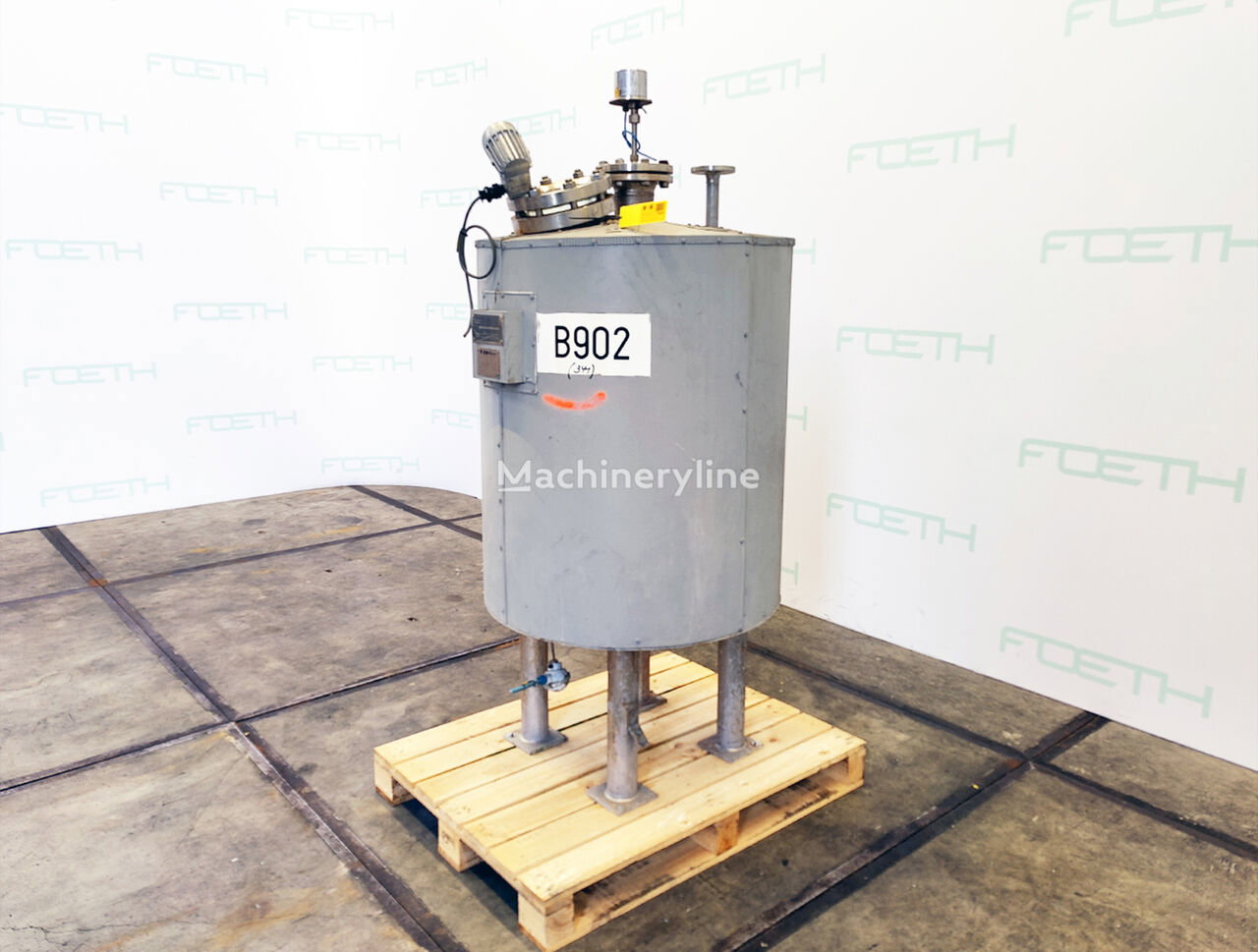

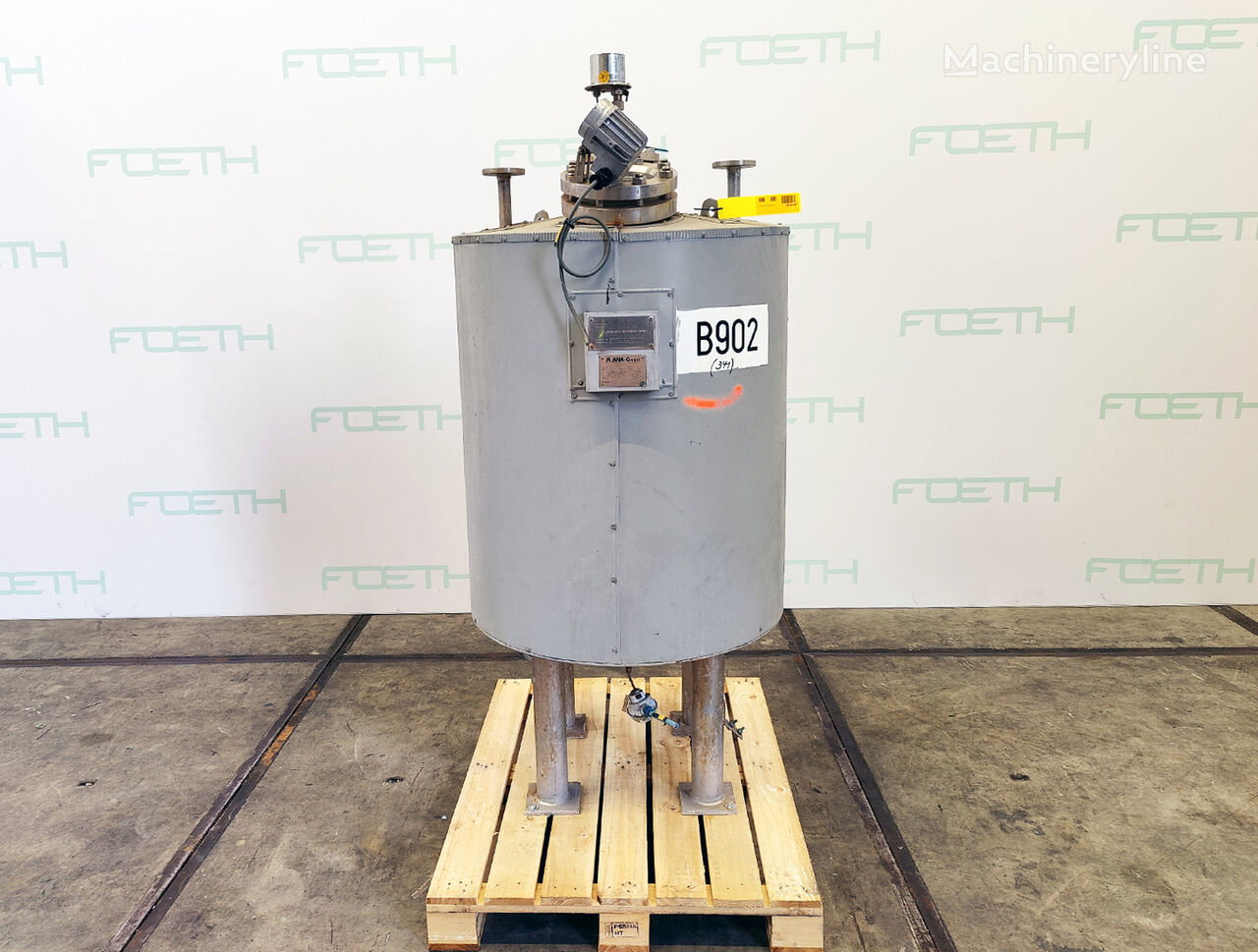

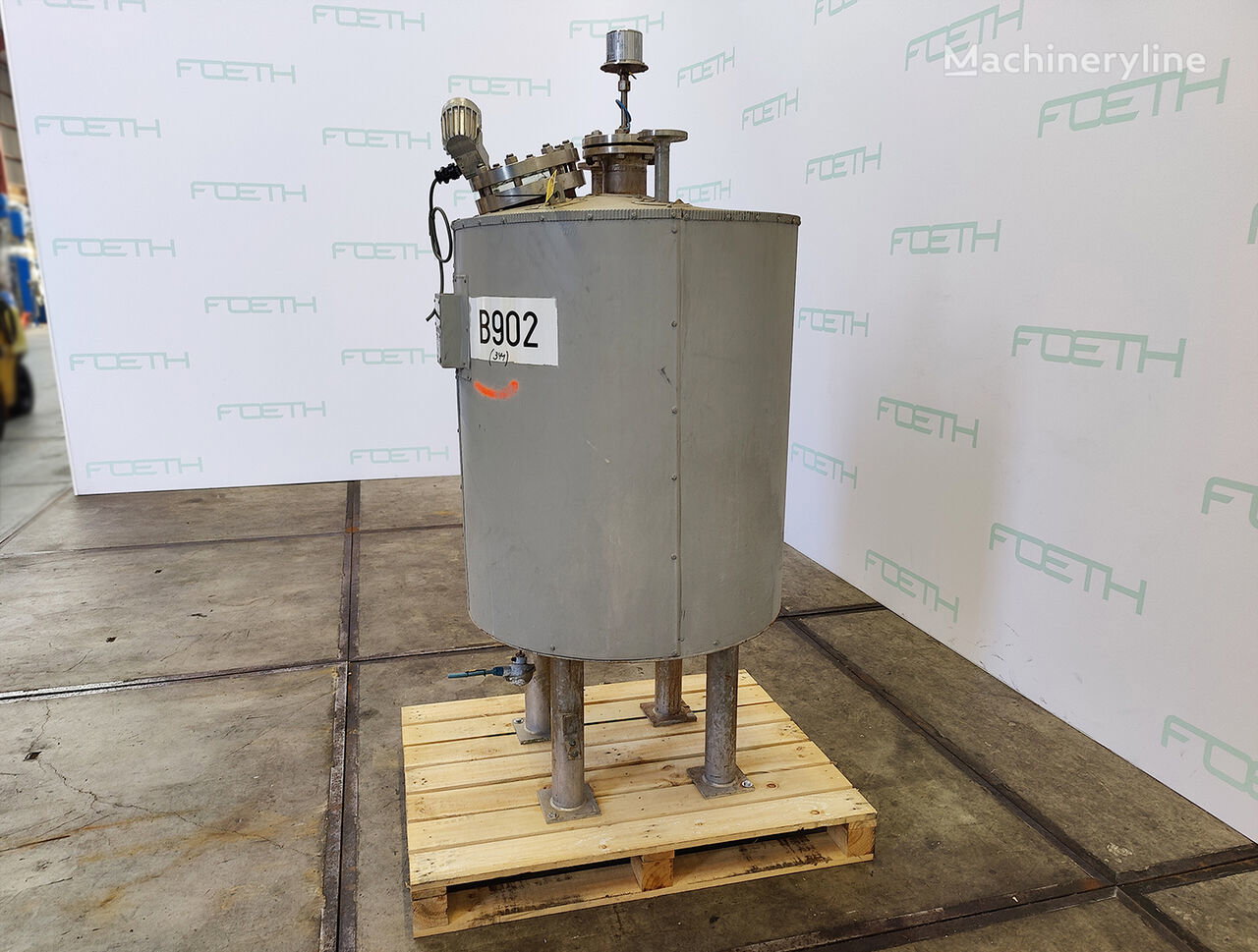

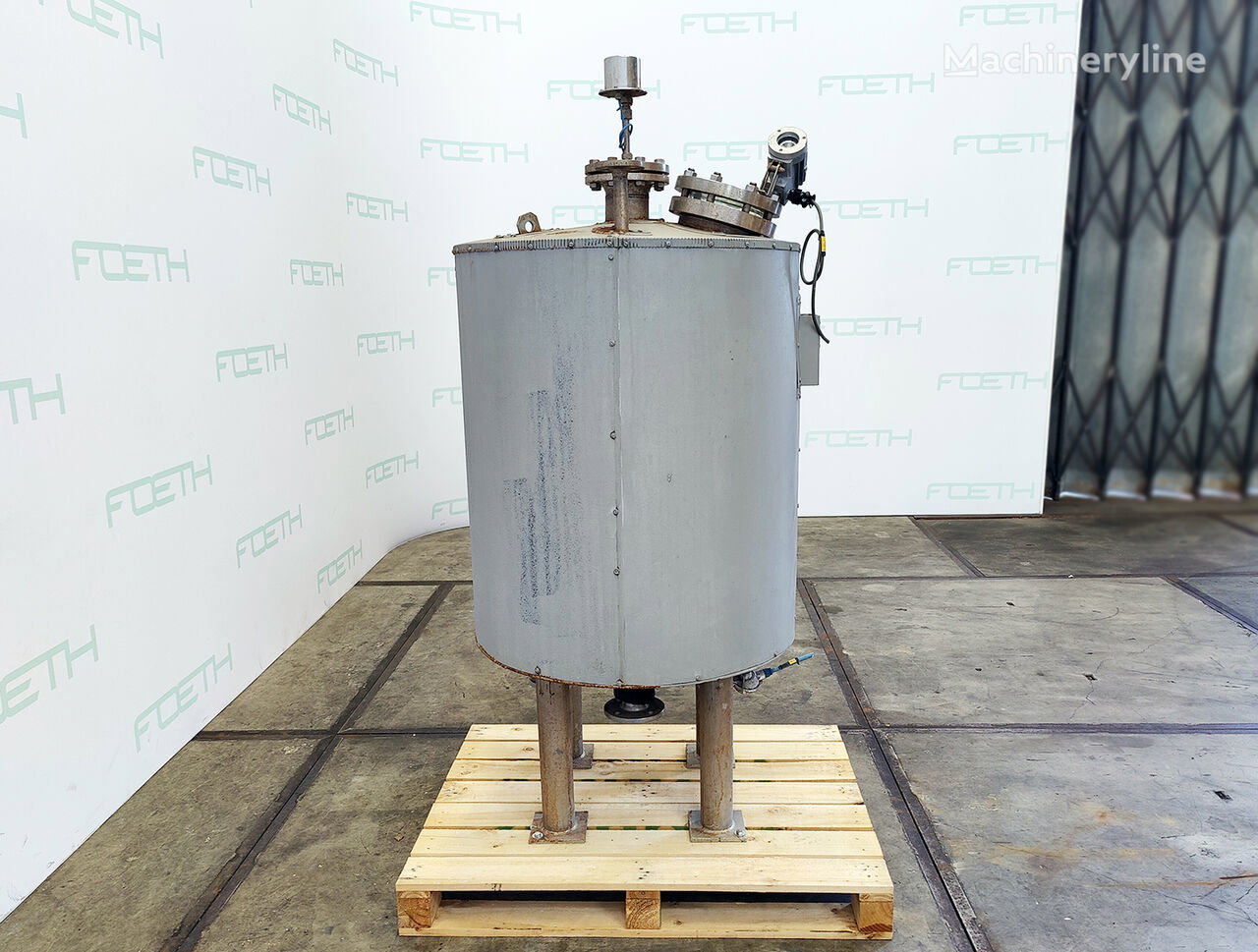

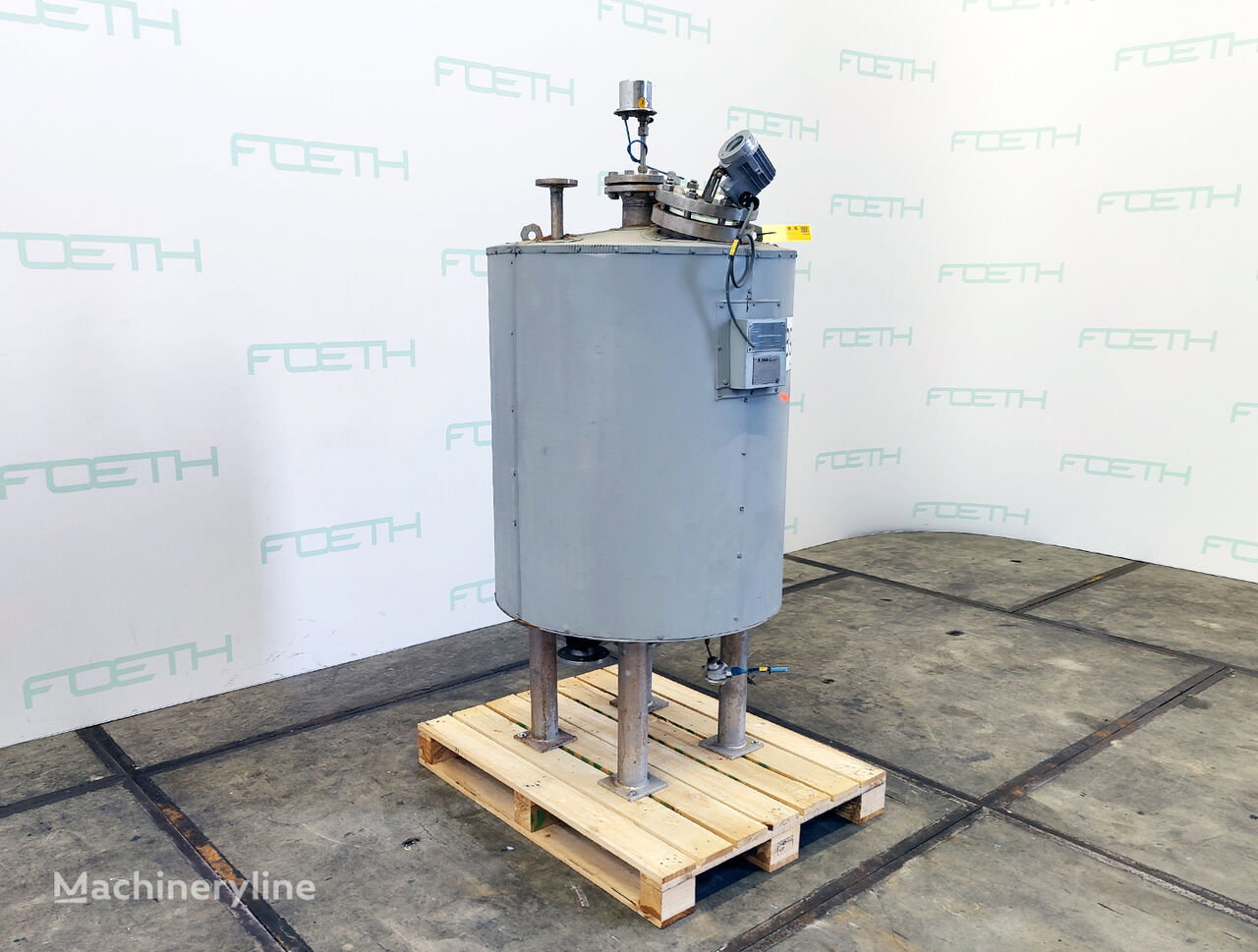

This Ana-GmbH tank container is a closed vertical pressure vessel used for storing, processing, and transporting liquids under controlled temperature and pressure conditions. Sometimes referred to as a process tank or pressure vessel, this type of equipment is a staple in food, chemical, pharmaceutical, and industrial processing environments where hygiene, pressure integrity, and thermal control are essential.
Built in 1999 and located in Barneveld, Netherlands, the tank has a working capacity of 450 litres with a vessel body measuring 800 × 1,100 mm. It stands 1,750 mm in total height and occupies a floor space of 950 × 950 mm, mounted on legs for stable, freestanding installation. The construction material is stainless steel grade 1.4571, the European designation for 316Ti — a titanium-stabilised austenitic stainless steel chosen for its superior corrosion resistance and suitability for aggressive media and elevated temperatures.
The vessel is designed for a working pressure of 3 bar and is vacuum-capable, making it suitable for processes that require reduced pressure environments. The temperature operating range extends from −20 °C to +180 °C, reflecting its versatility across both low and high-temperature applications. The tank features a dished top and dished bottom, which are standard in pressure vessel design to efficiently distribute internal stresses. Top connections are DN 25, and the outlet is DN 50.
The tank is fitted with a heating jacket rated to a maximum allowable working pressure of 10 bar, and additionally incorporates an internal heating spiral. The spiral has a heat transfer surface area of 1.8 m², a volume of 30 litres, and is rated for a working pressure range of −1 to +10 bar, giving operators two independent means of thermal management within the vessel. The tank carries a TÜV certification from a notified body, confirming that it has been inspected and approved to relevant pressure equipment standards. The unit reference number is 8020 84/2.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
