2001 - Asca Pressure Vesse Tank Container()
- Listing No
- 1166087
- Year
- 2001
- Manufacturer
- Asca
- Model
- Pressure Vesse
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: Agitated Tank 0,63 m³ Working pressure: 6 Bar Vacuum possible: check Material: Stainless steel 1.4571 (316Ti) Volume: 903 Ltr Motor: 1,1 kW (400 V, 1450 rpm) Closed stirring vessel: check Capacity: 630 Ltr. (903 Ltr.) Vessel sizes: ø 1000 x 1300 mm Dished bottom: check Dished top side: check Top connections: check DN100 - DN150 Outlet: check DN50 Max. temperature: 200 °C With propellor stirrer: check (FLUID, FKL 40) Speed mixing shaft: 44—425 rpm No: 2294 Mounted on legs: check Floorspace: 1,2 x 1,2 m Total height: 2,2 m General Pressure Main Features Specified Features - Pressure vessel Pressure vessels Information
About this machine
This Asca is a used agitated tank and container — a type of pressure vessel commonly used in industrial processing for mixing, storing, and conditioning liquids under controlled pressure and temperature conditions. Built in 2001 and located in Barneveld, Netherlands, it is constructed from stainless steel grade Ti), a titanium-stabilised austenitic alloy well suited to corrosive or high-temperature process media.
The vessel has a total volume of 903 litres and a working capacity of 630 litres, with a cylindrical body measuring 1,000 mm in diameter and 1,300 mm in height. Both the bottom and the top of the vessel are dished, providing structural integrity under pressure and facilitating complete drainage. The unit is rated for a maximum working pressure of 6 bar and is also suitable for vacuum service. Maximum permissible temperature is 200 °C, making it appropriate for a broad range of thermal process applications.

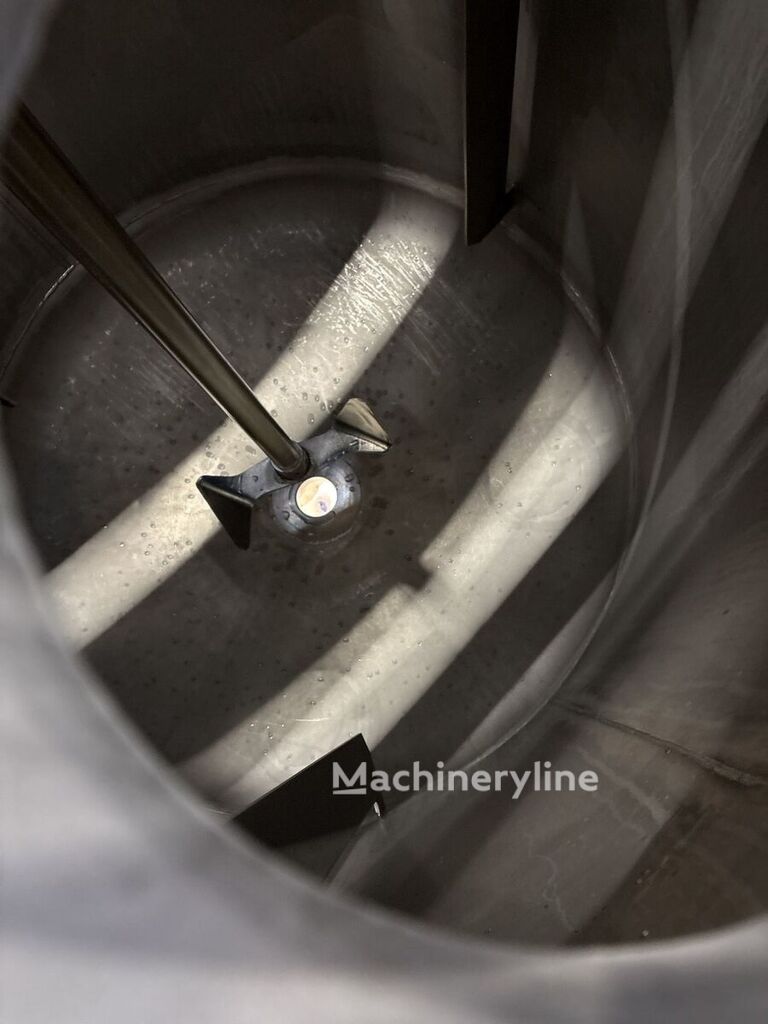

Agitation is provided by a propeller stirrer of the FLUID FKL 40 type, driven by a 1.1 kW electric motor rated at 400 V and 1,450 rpm. The mixing shaft operates across a variable speed range of 44 to 425 rpm, allowing the agitation intensity to be matched to the requirements of different process fluids. The vessel is a closed stirring vessel, meaning it is fully sealed for pressurised or vacuum operation.

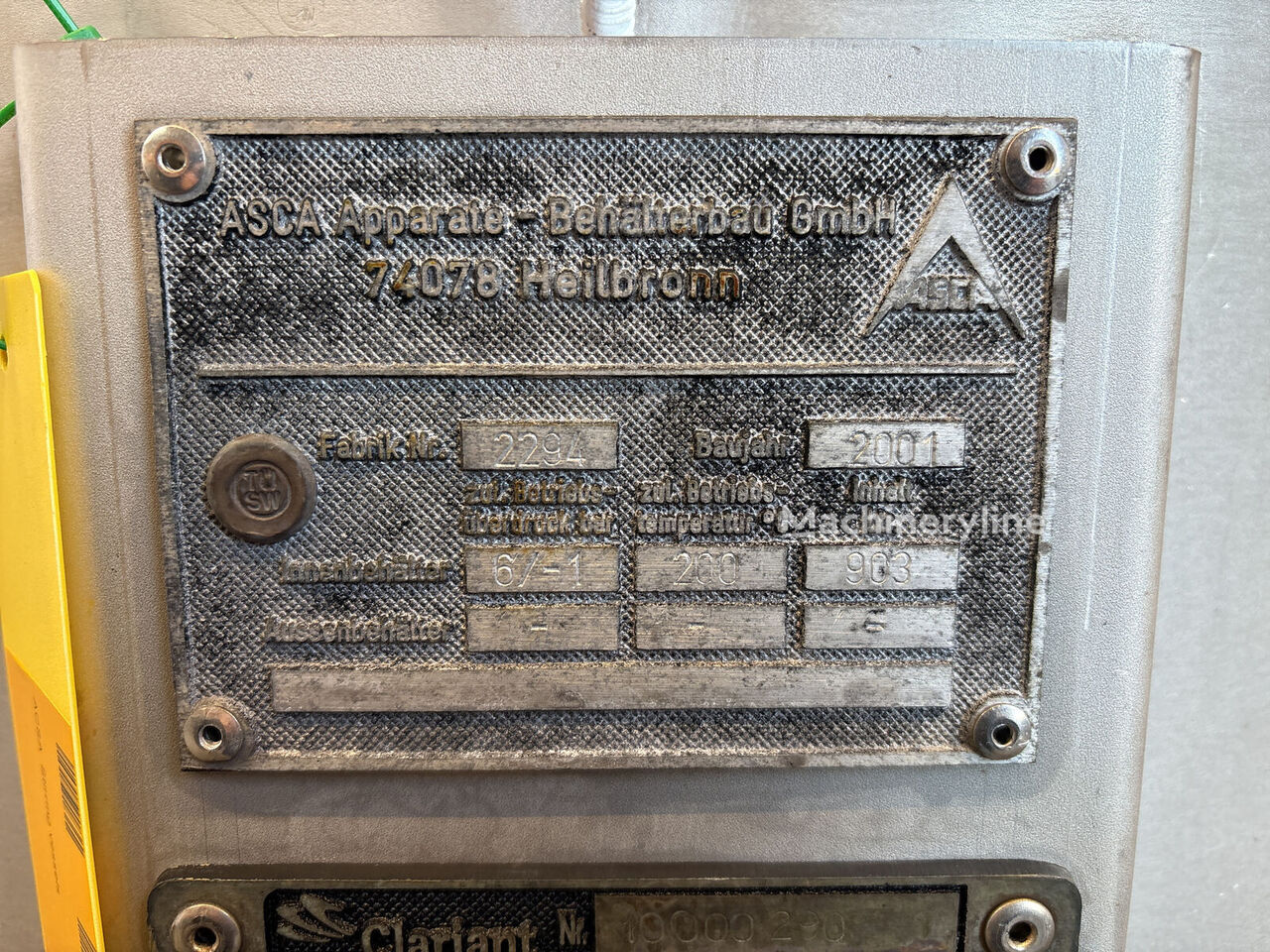

Connections include top openings sized DN100 and DN150, with a DN50 outlet at the base. The vessel is mounted on legs, giving a floor footprint of 1.2 × 1.2 metres and a total installed height of 2.2 metres. The unit carries the serial number 2294 and is offered in used condition from its current location in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
