2004 - Baumgartner & Co 103 Ltr. – Pressure vessel Tank Container()
- Listing No
- 1179583
- Year
- 2004
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 566 Working pressure: 2.5 Bar Number of vertical pressure tanks: 1 Material: Stainless steel 1.4301 (304), Stainless steel 1.4435 (316L) Volume: 103 Ltr Pressure: 2.5 Bar Capacity: 103 Ltr Vessel sizes: dia. 450x715 mm Dished bottom: check Top connections: DN50 (CIP), DN40 Outlet: dia. 33 mm Max. temperature: 15/150 °C With propellor stirrer: check (magnetic) Motor: 0.25 kW, 230/400 volt, 2720 rpm Speed mixing shaft: ± 200 rpm Mounted on consoles: check Floorspace: 0,74x0,74 m CE: check Total height: 1,2 m merk: Baumgartner & Co General Pressure Main Features Specified Features - Pressure vessel Information
About this machine

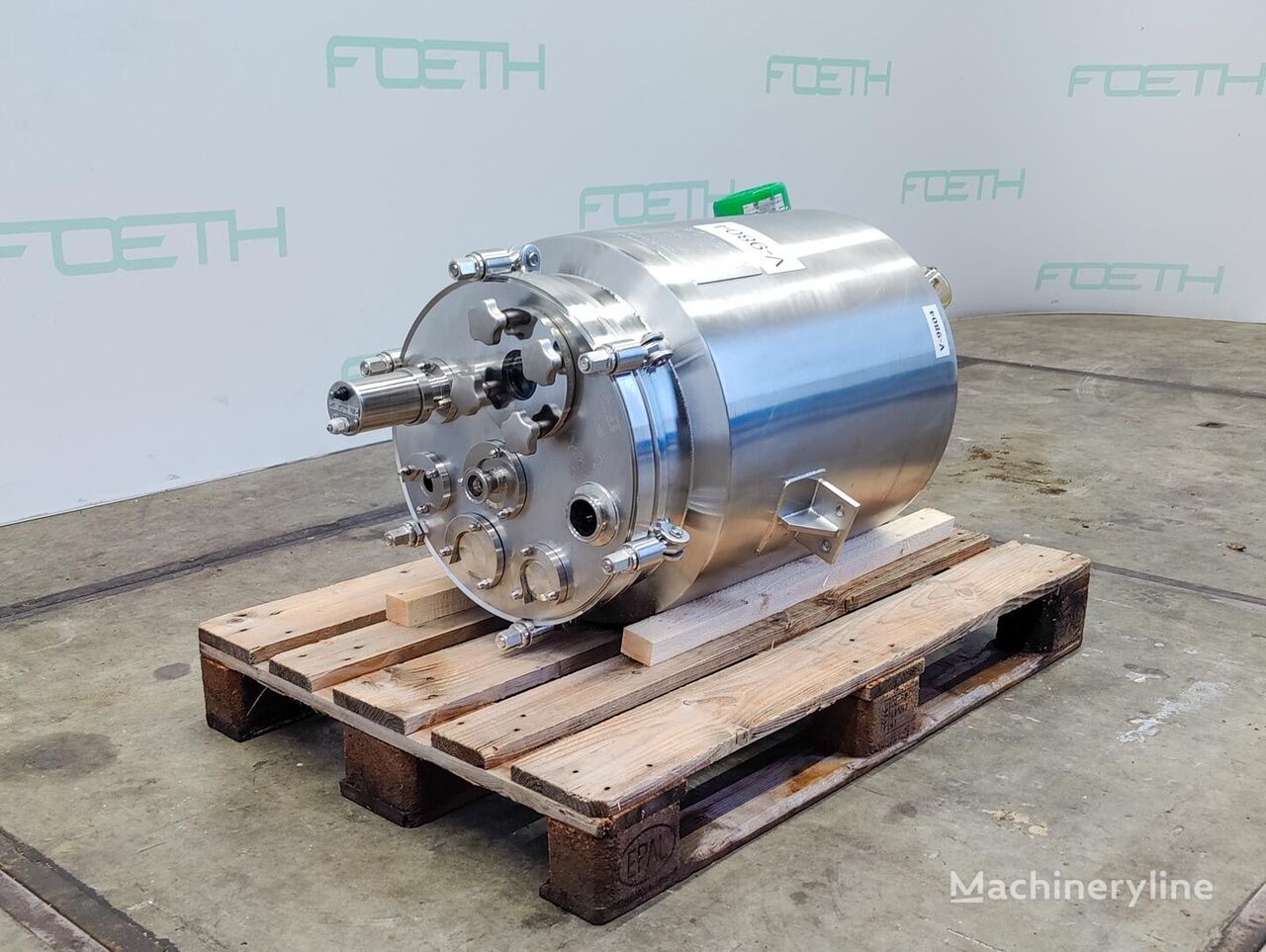

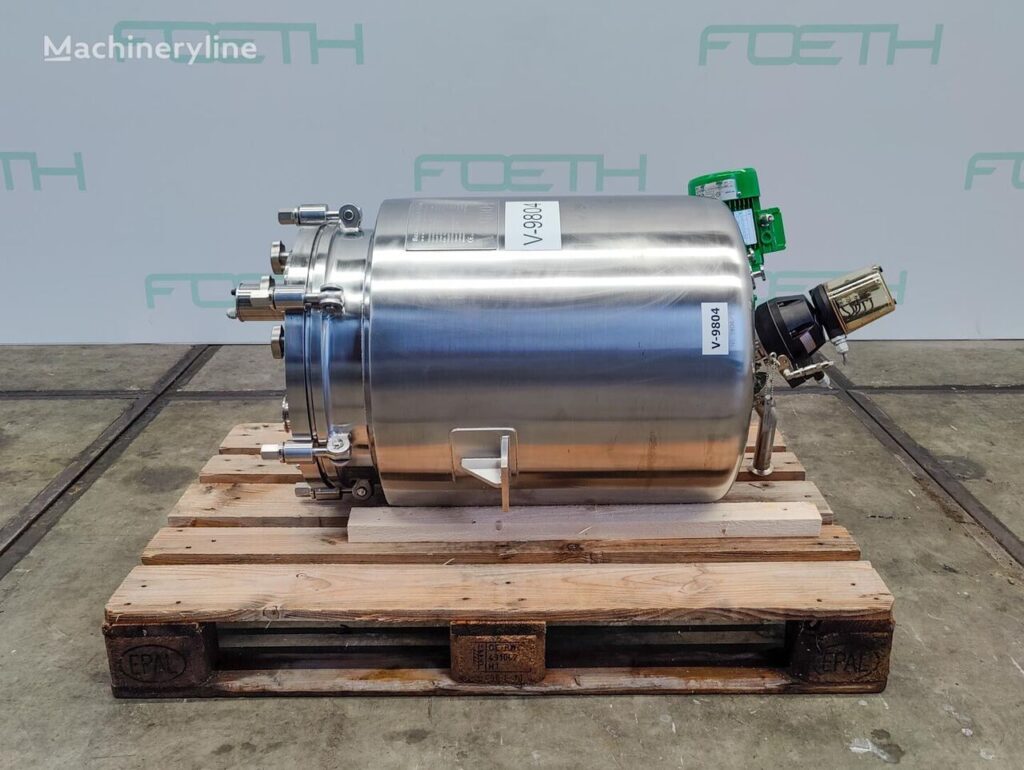

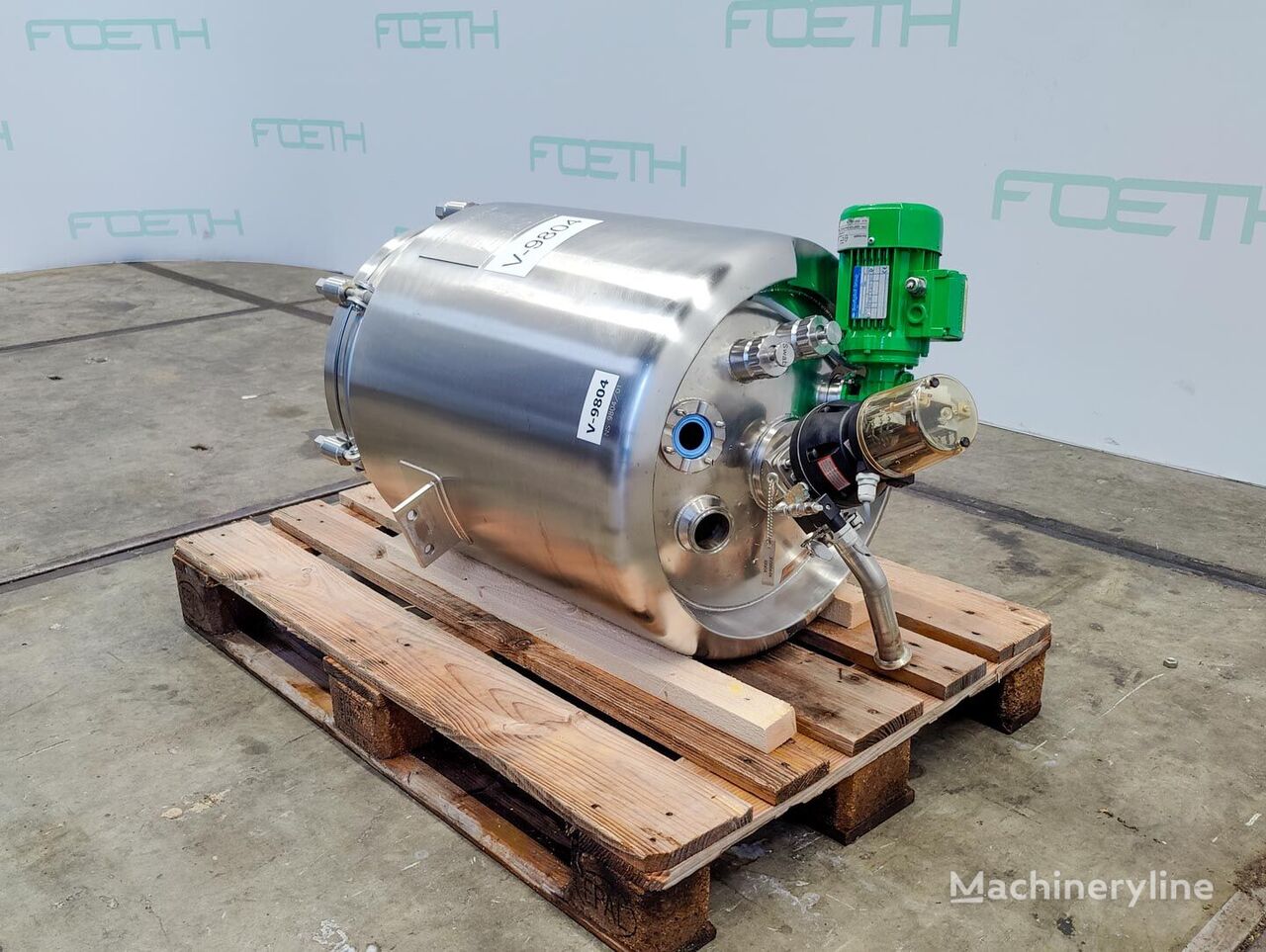

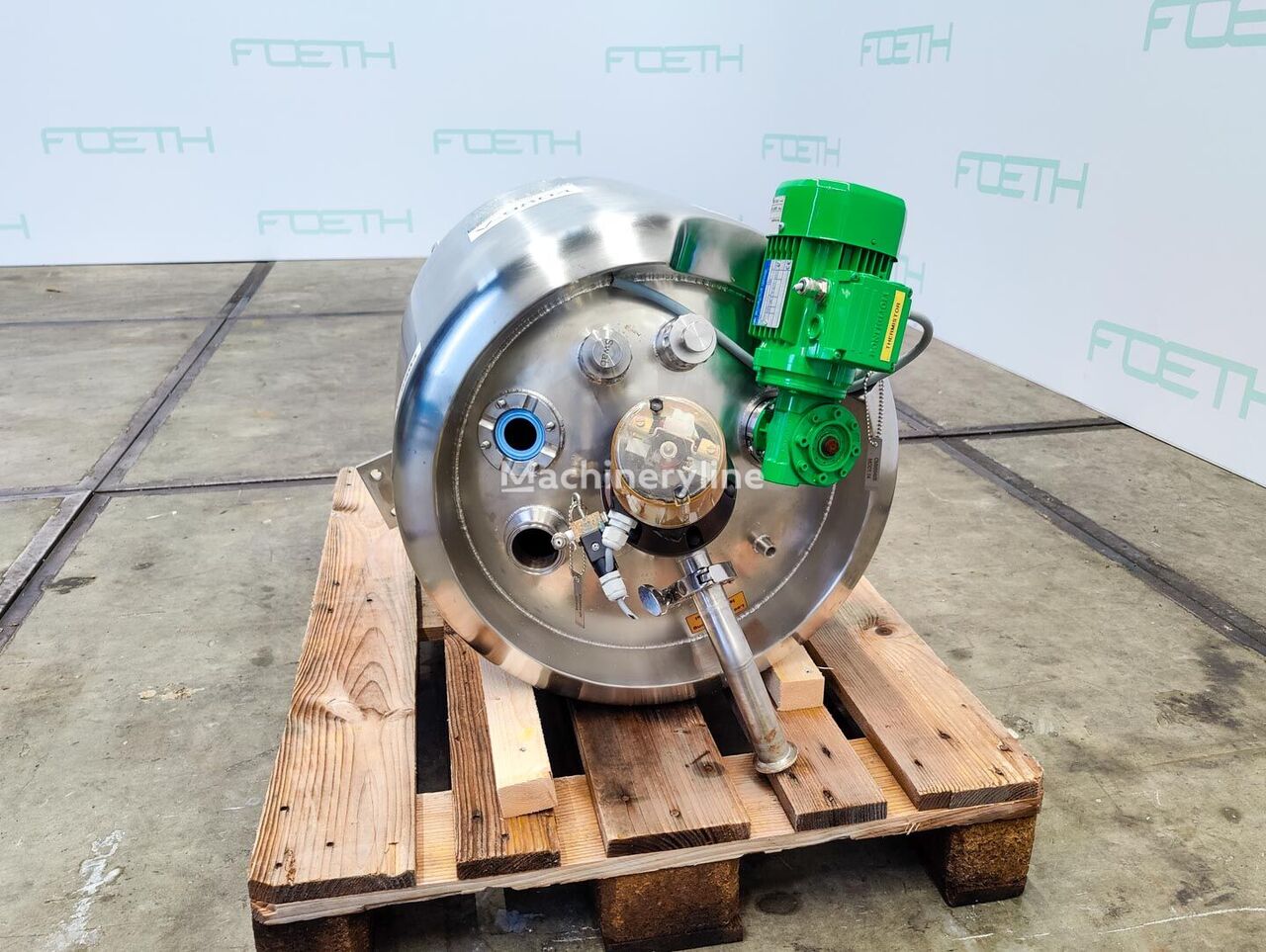

This Baumgartner & Co 103 Ltr. - Pressure vessel Tank Container is a used pressure vessel tank, sometimes referred to as a pressure tank or pressure container, designed for the hygienic storage, mixing, and processing of liquids under controlled pressure conditions. Pressure vessels of this type are widely used in the food, dairy, beverage, pharmaceutical, and chemical industries wherever sanitary containment and agitation of liquid product is required.
The vessel has a volume and capacity of 103 litres and is constructed from stainless steel in two grades: 1.4301 (AISI 304) for general structural elements and 1.4435 (AISI 316L) for surfaces requiring higher corrosion resistance. The cylindrical body measures 450 mm in diameter by 715 mm in height, and the vessel is fitted with a dished bottom, a standard feature in sanitary process vessels that promotes complete drainage and cleaning. The total overall height of the unit is 1.2 m, and it occupies a floor footprint of 0.74 × 0.74 m, making it compact enough for integration into existing process lines.
The vessel operates at a working pressure of 2.5 bar and accommodates a temperature range of 15 °C to 150 °C, giving it considerable flexibility across process heating and cooling applications. On the process connections side, the top is equipped with a DN50 connection designated for CIP (clean-in-place) service and a DN40 connection, while the outlet measures 33 mm in diameter.

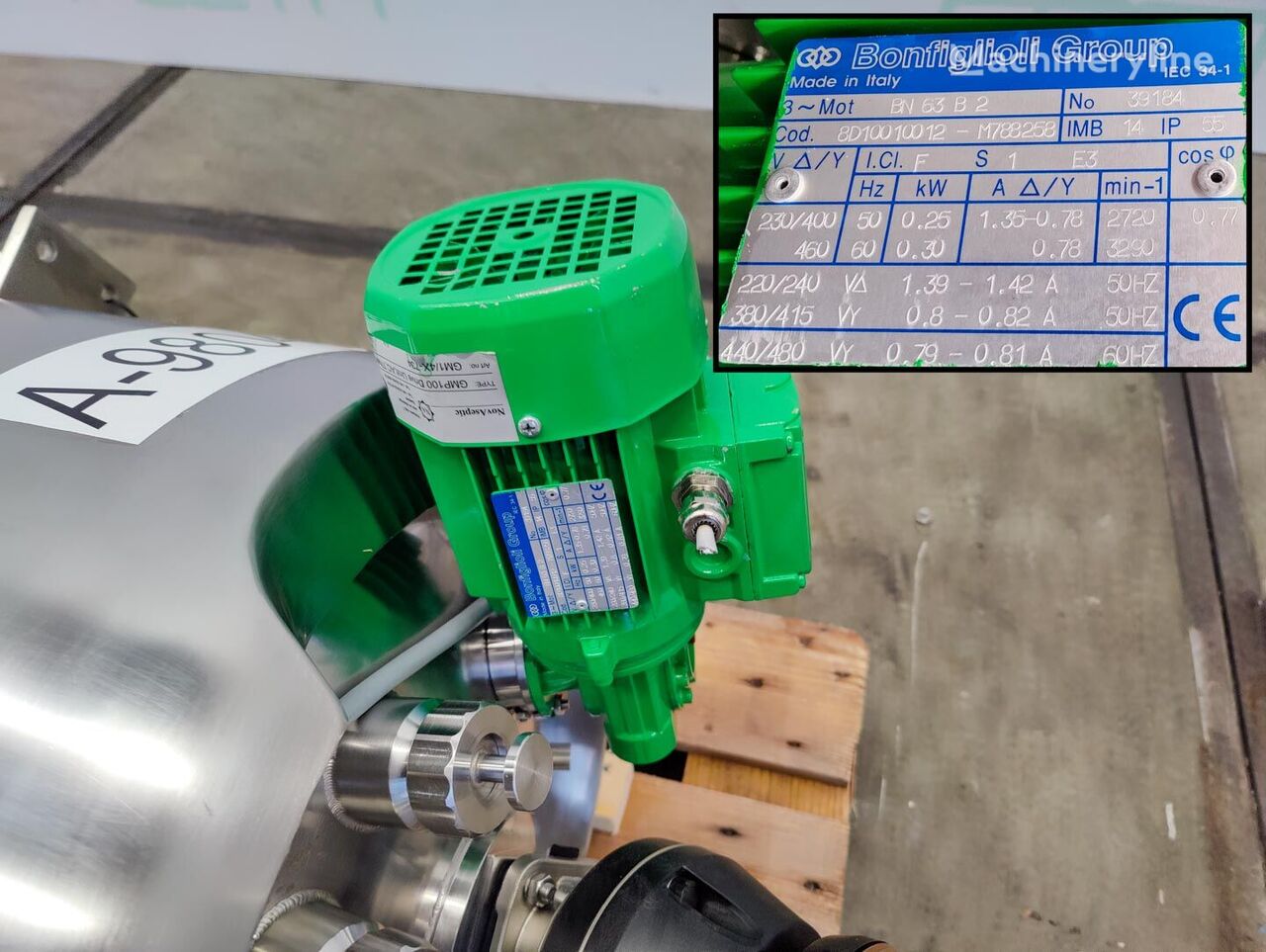

Agitation is provided by a magnetically driven propeller stirrer, a sealed arrangement that eliminates the need for a mechanical shaft seal penetrating the vessel wall and thereby maintains full pressure integrity. The stirrer motor is rated at 0.25 kW and runs on 230/400 volt supply at 2,720 rpm, driving the mixing shaft at approximately 200 rpm. The complete unit is mounted on consoles, positioning it at working height without requiring a separate support frame.
The vessel carries CE certification and is located in Barneveld, Netherlands. It is listed as a single vertical pressure tank (seller reference number 566), manufactured in 2004, and offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
