2004 - Baumgartner & Co 103 Ltr. – Pressure vessel Tank Container()
- Listing No
- 1179566
- Year
- 2004
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 564 Working pressure: 4 Bar Vacuum possible: check Number of vertical pressure tanks: 1 Material: Stainless steel 1.4301 (304), Stainless steel 1.4435 (316L) Volume: 103 Ltr Pressure: 4 Bar Vacuum: check Capacity: 103 Ltr Vessel sizes: dia. 450x715 mm Dished bottom: check Top connections: DN50 (CIP), DN40 Outlet: dia. 33 mm Max. temperature: 15/150 °C With propellor stirrer: check (magnetic) Motor: 0.25 kW, 230/400 volt, 2720 rpm Speed mixing shaft: ± 200 rpm Mounted on consoles: check Floorspace: 0,74x0,74 m CE: check Total height: 1,2 m merk: Baumgartner & Co General Pressure Main Features Specified Features - Pressure vessel Information
About this machine

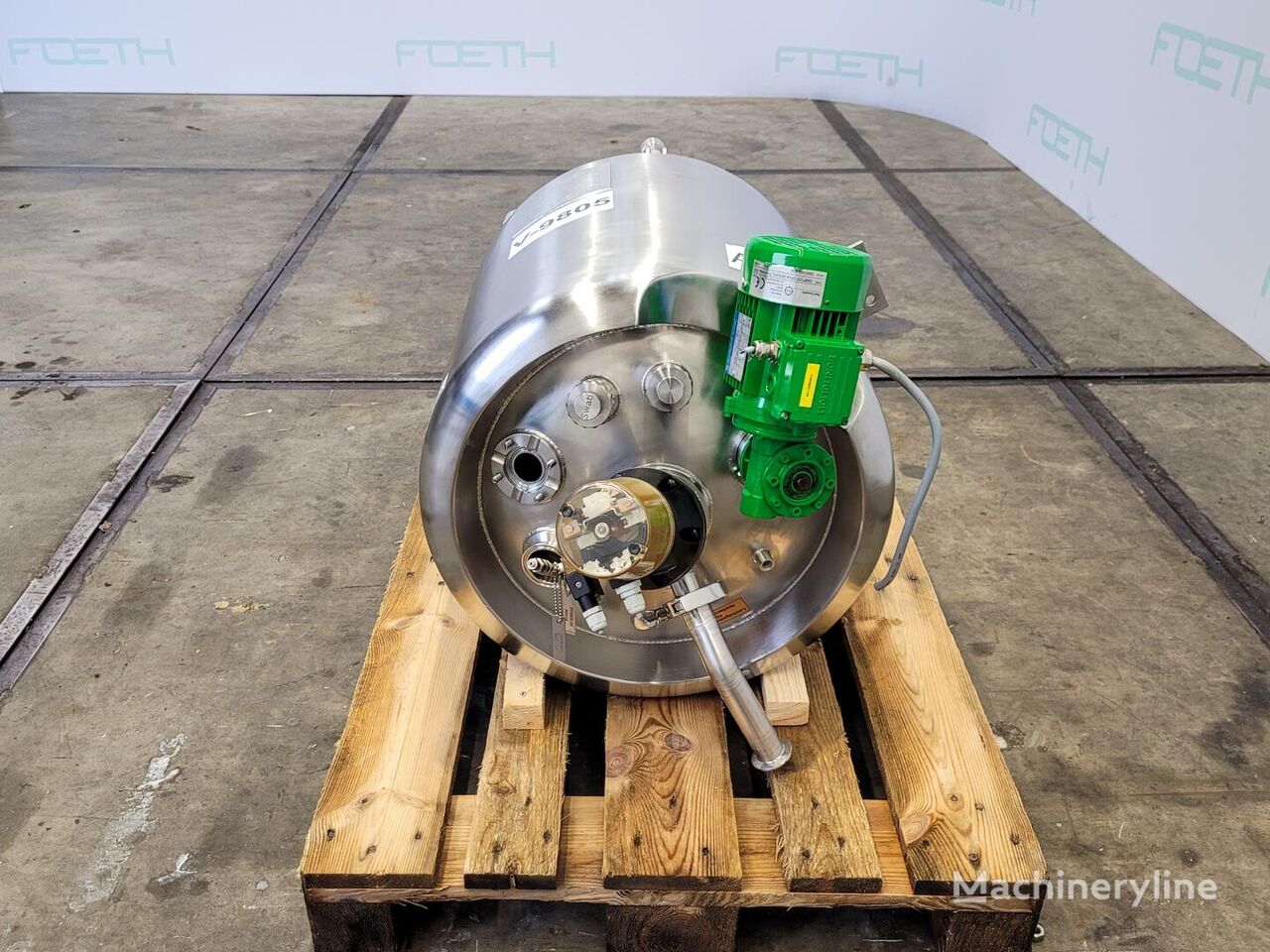

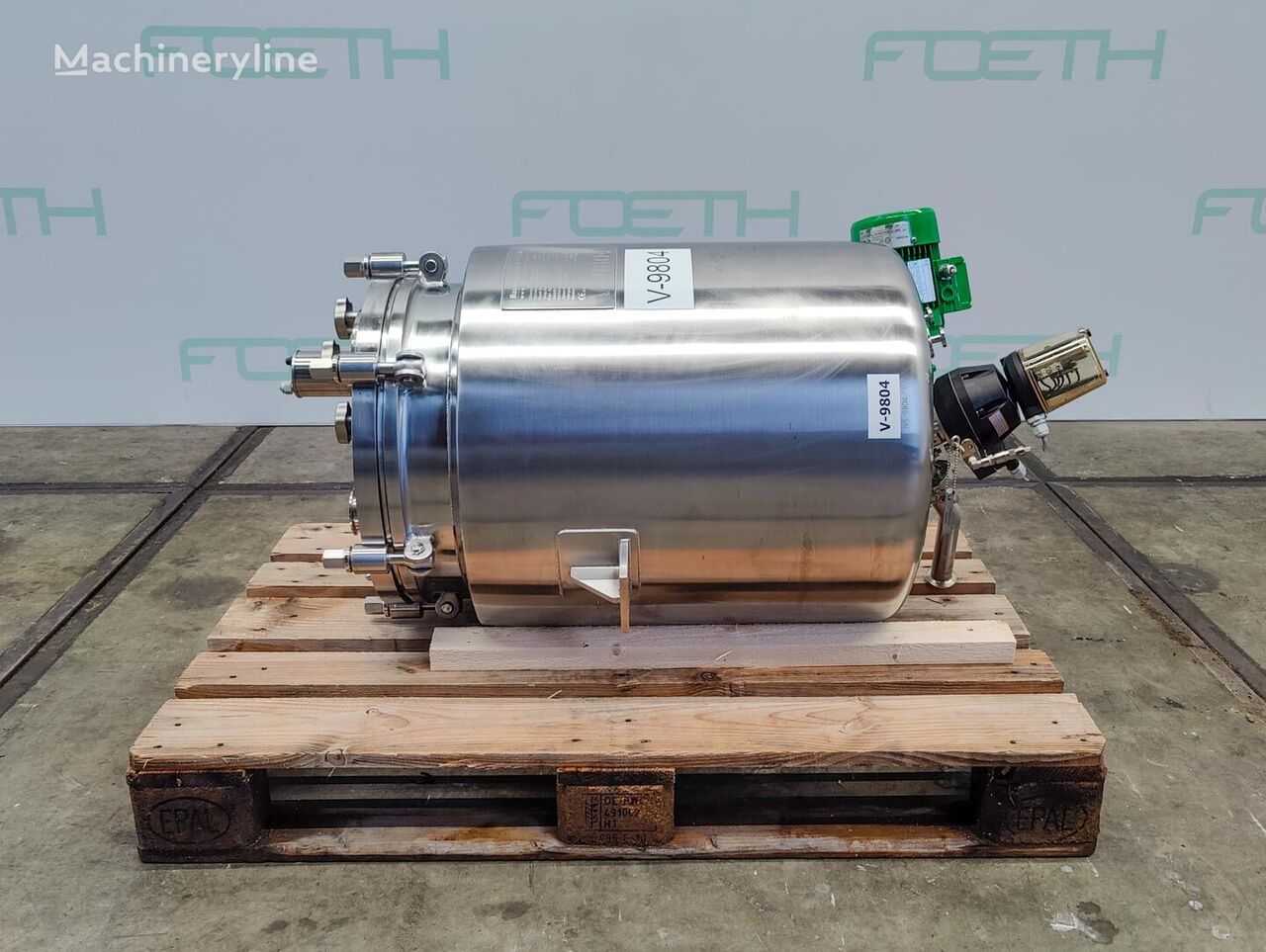

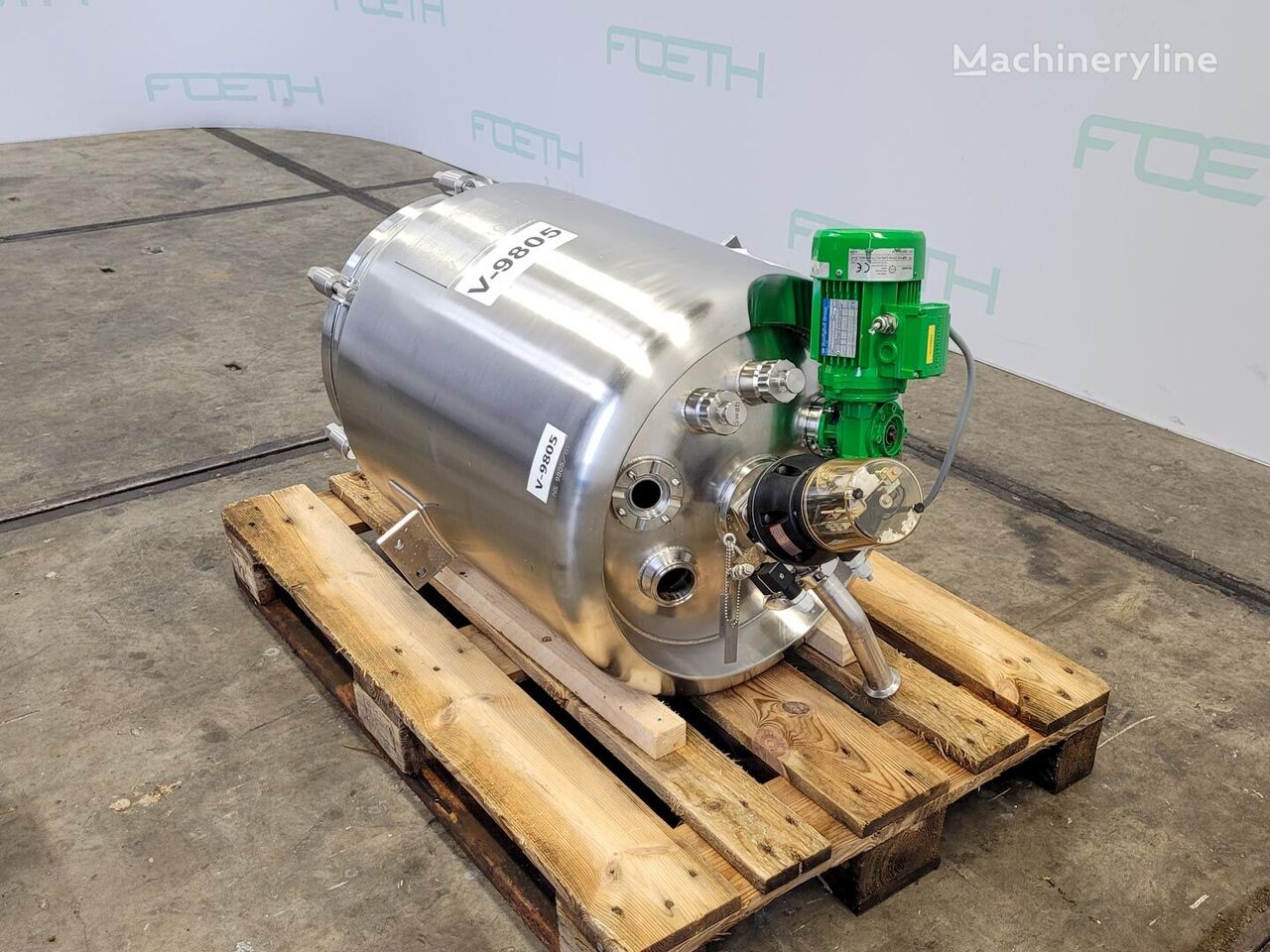

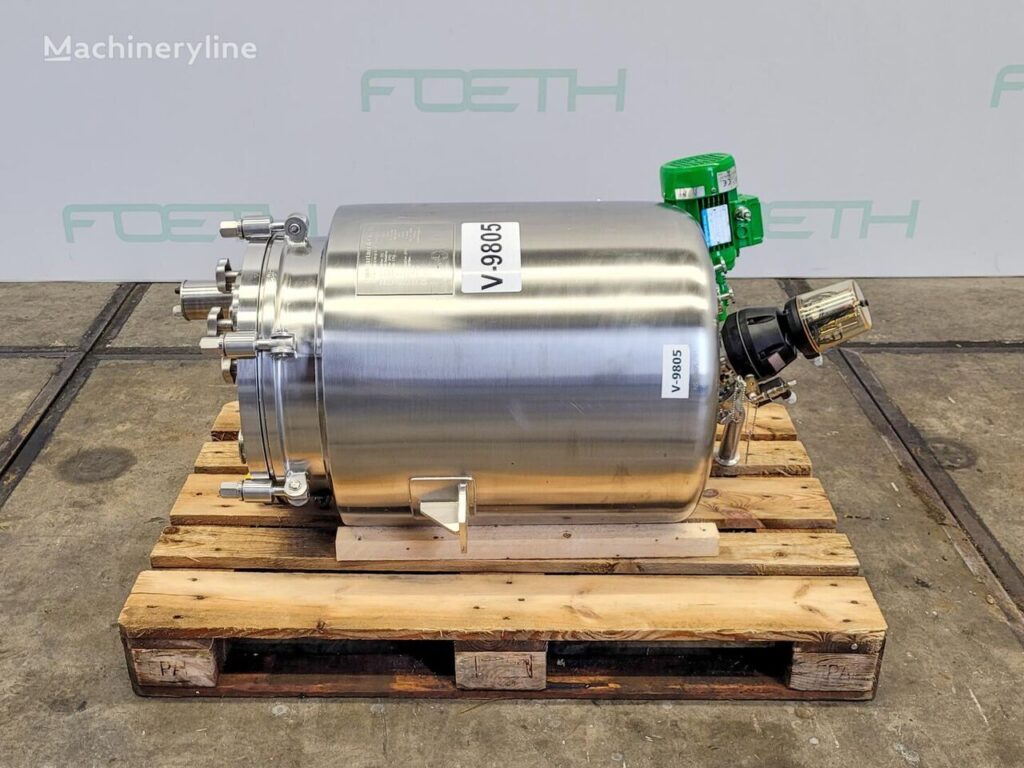

This Baumgartner & Co 103 Ltr. is a tank and container — specifically a vertical pressure vessel, sometimes referred to as a pressure tank — used in food, beverage, dairy, and chemical processing applications for the contained mixing, storing, or processing of liquids under controlled pressure or vacuum conditions. Baumgartner & Co is a Swiss manufacturer known for producing stainless steel process vessels and equipment serving hygiene-critical industries.
The vessel has a capacity of 103 litres and a cylindrical body measuring 450 mm in diameter by 715 mm in height, with a dished bottom for efficient drainage and cleaning. It is constructed from stainless steel grade 1.4301 (AISI 304) and 1.4435 (AISI 316L), the latter being a low-carbon austenitic grade particularly well suited to aggressive media and stringent hygienic standards. The unit is CE marked and was manufactured in 2004.

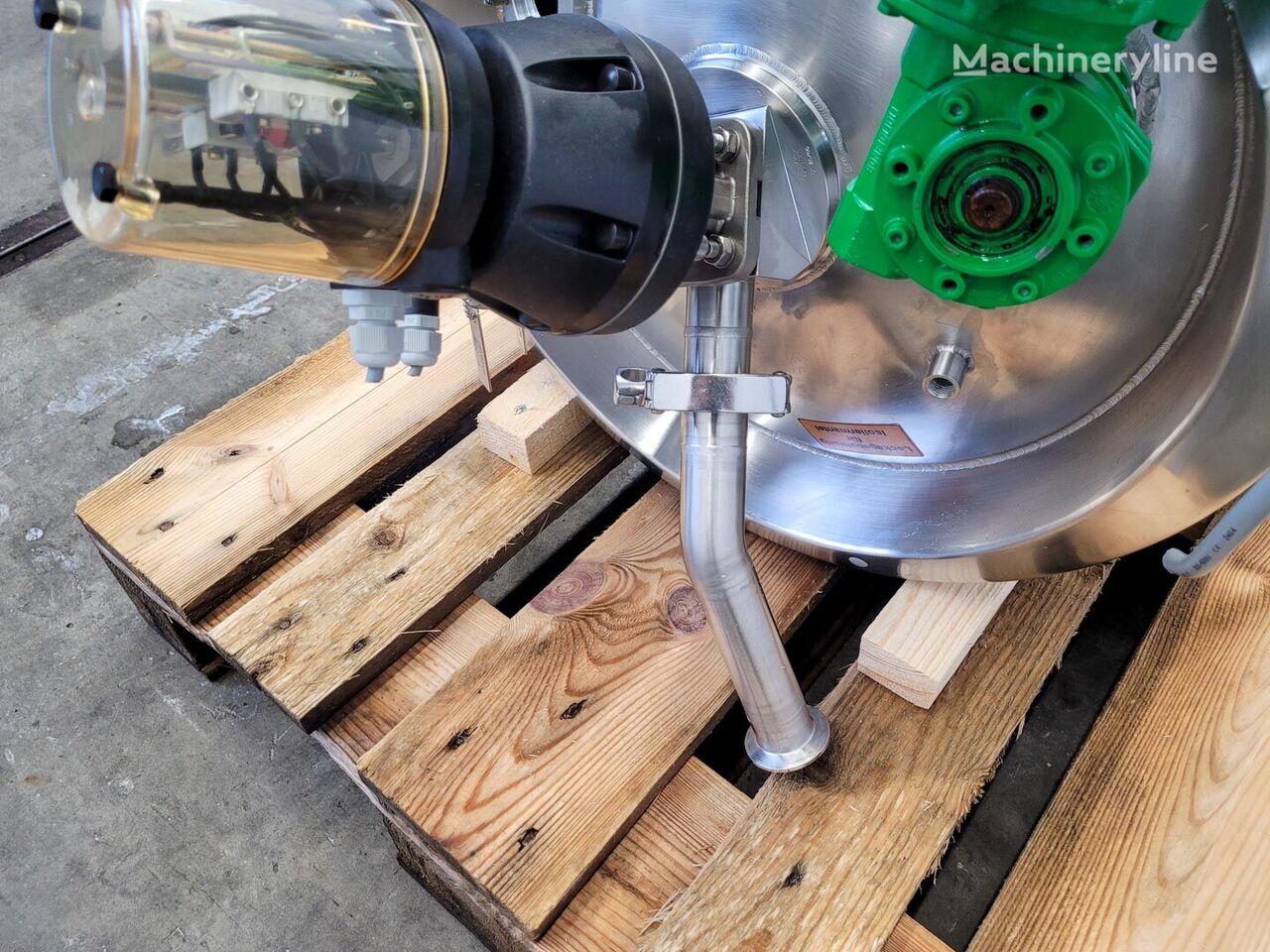

Process connections include a DN50 top connection for CIP (clean-in-place) circuits, a DN40 top connection, and a 33 mm diameter outlet at the base. The vessel operates at a working pressure of 4 bar with vacuum capability also confirmed, and it is rated for temperatures between 15 °C and 150 °C.

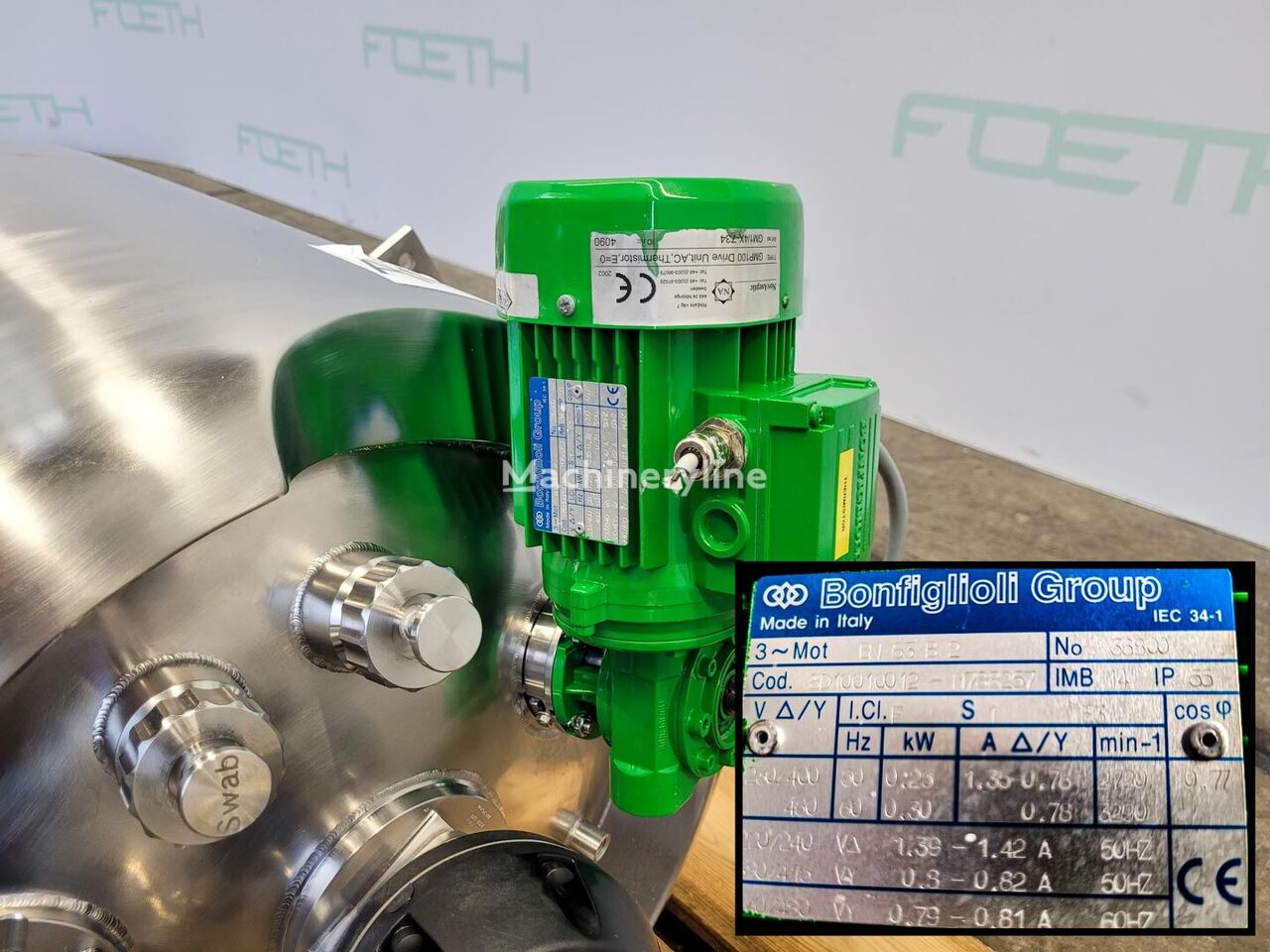

Agitation is provided by a magnetically driven propeller stirrer, eliminating the need for a mechanical shaft seal through the vessel wall and thus maintaining full pressure integrity. The drive motor is rated at 0.25 kW and runs on 230/400 volt supply at 2,720 rpm, delivering a mixing shaft speed of approximately 200 rpm. The unit is mounted on consoles and has a compact floor footprint of 0.74 × 0.74 m with a total height of 1.2 m.
The vessel is located in Barneveld, Netherlands, and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
