1994 - Baumgartner & Co. / Alois Binderberger Tank Container()
- Listing No
- 1179282
- Year
- 1994
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 569 Working pressure: 2.5 Bar Material: Stainless steel 1.4301 (304), Stainless steel 1.4435 (316L) Volume: 219 Ltr Pressure: 2.5 Bar Capacity: 219 Ltr Vessel sizes: dia. 750x800 mm Dished top: check Dished bottom: check Manhole: DN300 Top connections: DN50 (CIP) Outlet: 1 ½'' Max. temperature: 5/144 °C With propellor stirrer: check (magnetic) Motor: 0,25 kW, 230/400 volt, 2720 rpm Speed mixing shaft: ± 200 rpm Floorspace: 0,9x0,9 m CE: check Total height: 1,05 m merk: Baumgartner & Co. / Alois Binderberger General Pressure Main Features Specified Features - Pressure vessel Information
About this machine

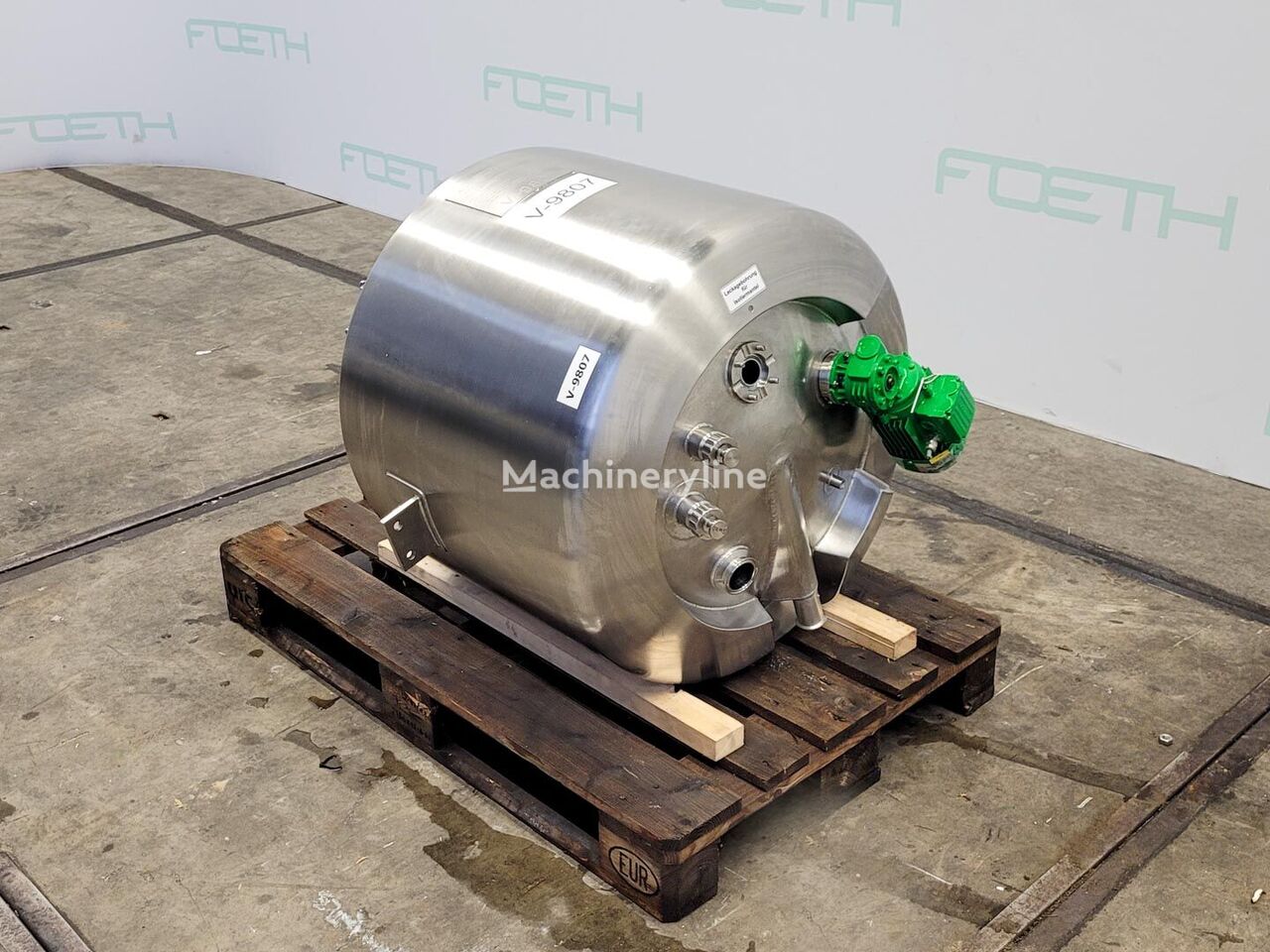

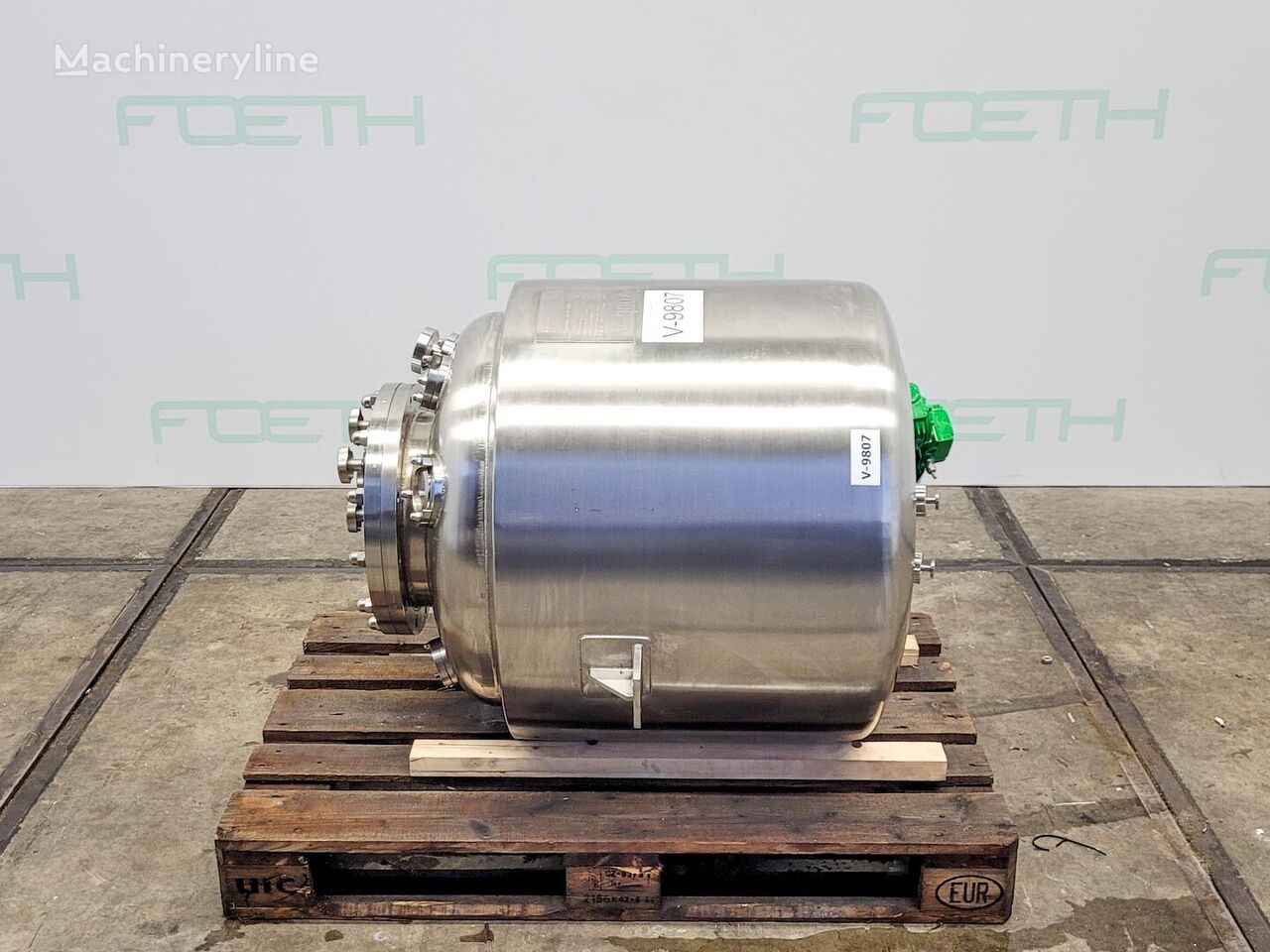

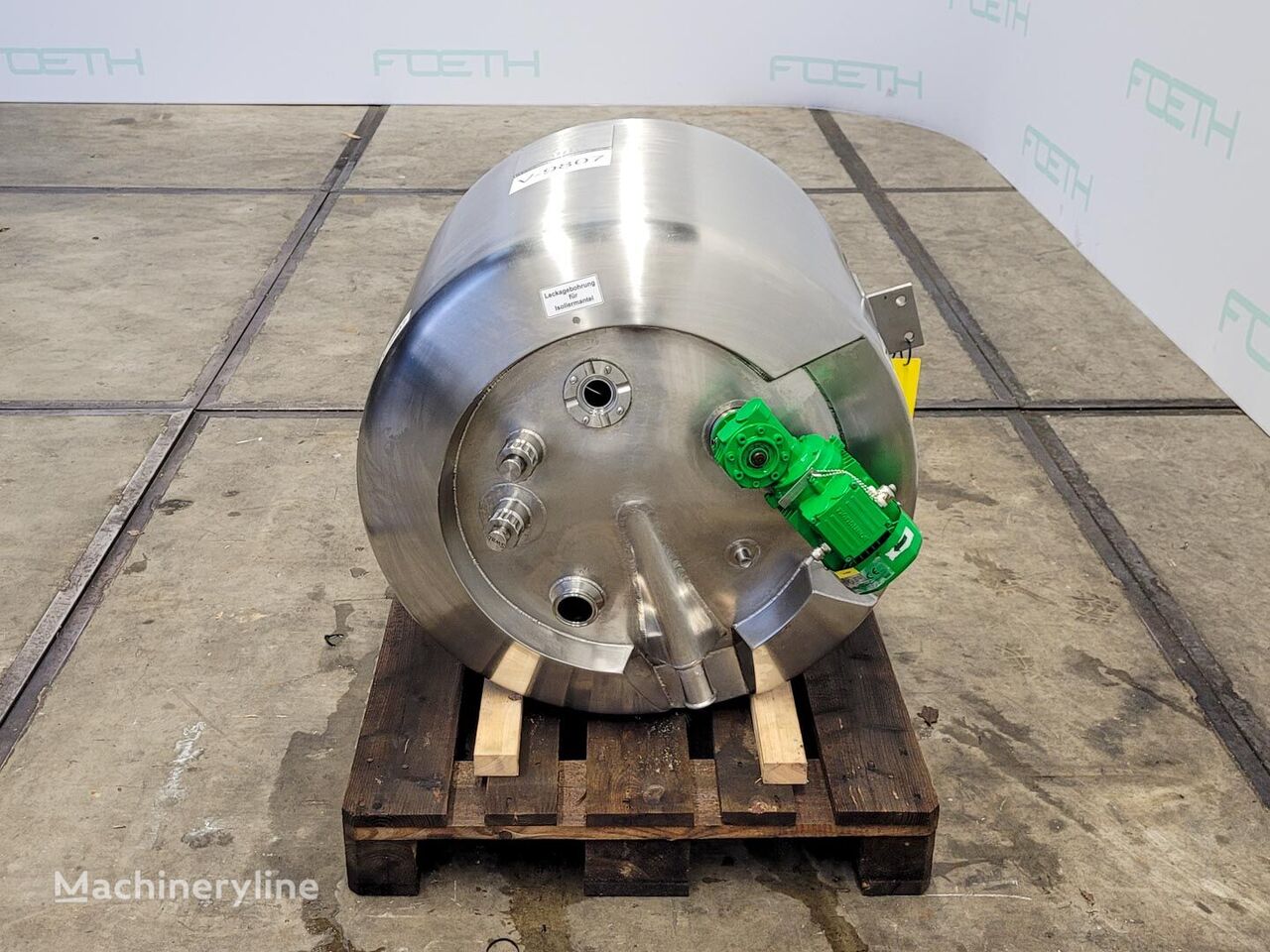

This Baumgartner & Co. / Alois Binderberger Tank Container is a used pressure vessel — also commonly referred to as a pressure tank — built in 1994 and currently located in Barneveld, Netherlands. Pressure vessels of this type are used across the food, dairy, beverage, and chemical processing industries for the controlled storage, mixing, and transfer of liquids under defined pressure and temperature conditions.
The vessel has a capacity of 219 litres and a cylindrical body measuring 750 mm in diameter by 800 mm in height, with a total installed height of 1.05 metres and a floor footprint of 0.9 × 0.9 metres. Both the top and bottom heads are dished, a design that distributes internal pressure evenly and facilitates complete drainage. Construction is in stainless steel, combining grade 1.4301 (AISI 304) and grade 1.4435 (AISI 316L), the latter offering enhanced corrosion resistance suited to more aggressive or hygienic applications.

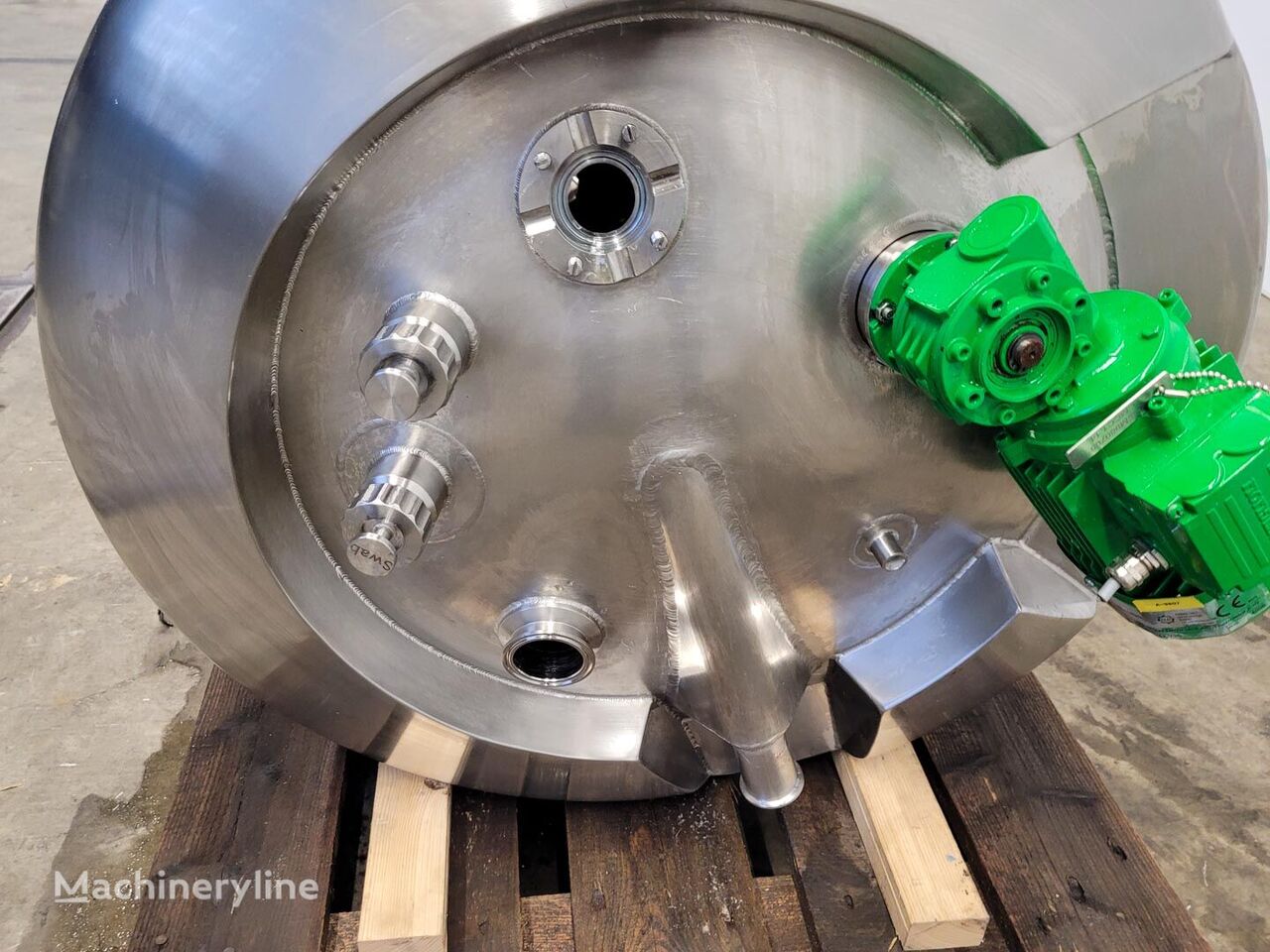

The vessel is rated for a working pressure of 2.5 bar across a temperature range of 5 °C to 144 °C. A DN300 manhole provides access for inspection and cleaning, a DN50 top connection is fitted for CIP (clean-in-place) service, and the outlet is sized at 1½ inch. The unit carries CE certification, confirming it meets the applicable European pressure equipment requirements.

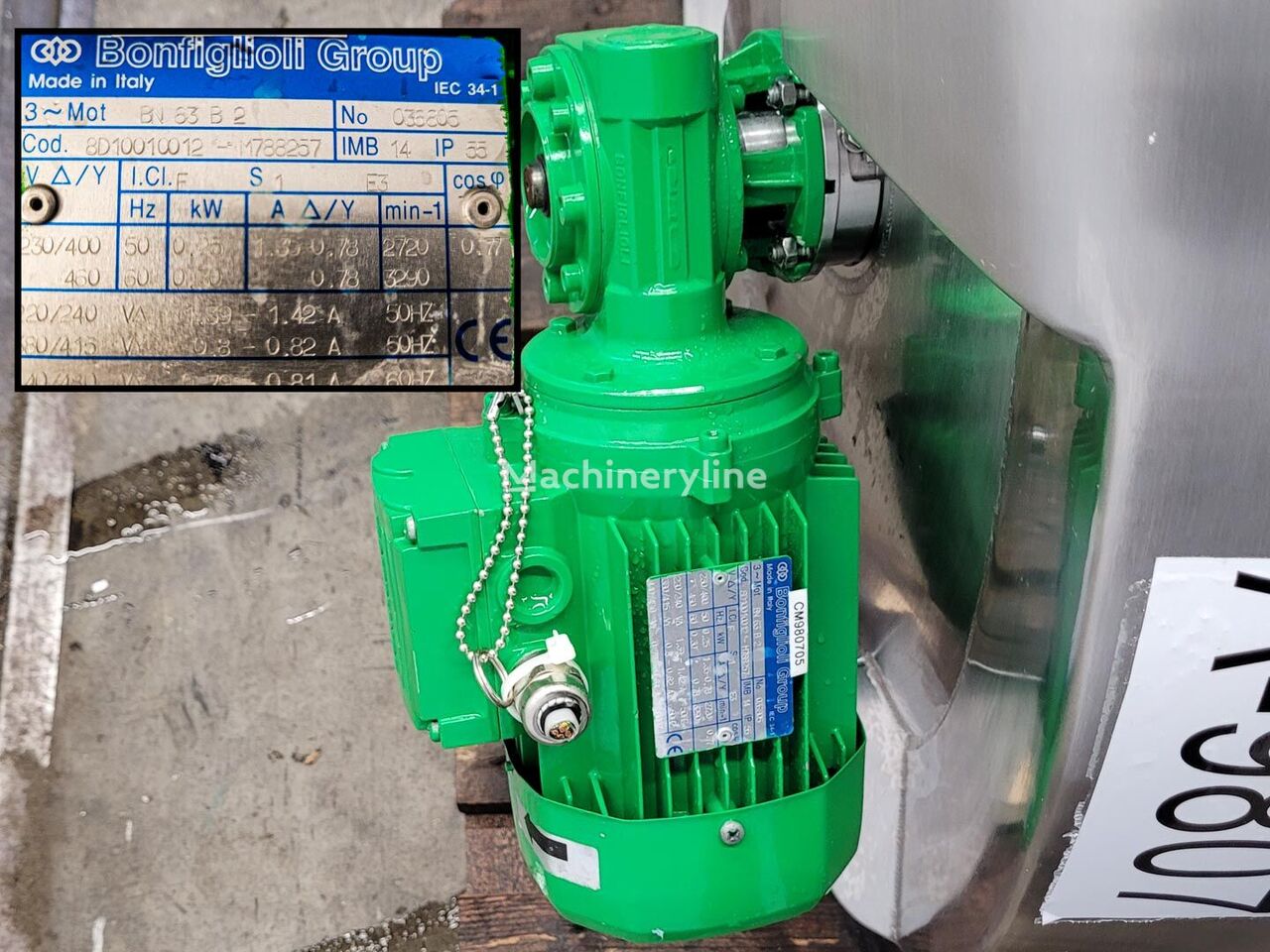

Agitation is provided by a magnetically driven propeller stirrer, eliminating the need for a mechanical shaft seal and making it well suited to hygienic or sealed-process applications. The drive motor is rated at 0.25 kW, runs on 230/400 volt supply at 2,720 rpm, and delivers a mixing shaft speed of approximately 200 rpm. The vessel is listed under internal reference number 569.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
