1973 - Brogli MH-20C-1536 – Processing vessel Tank Container()
- Listing No
- 1179904
- Year
- 1973
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: MH-20C No: 1536 Working pressure: 0 Bar Vacuum possible: check Working pressure jacket: 1 Bar Material: Stainless steel 1.4301 (304) Volume: 25 Ltr Closed stirring vessel: "Vacuum processing vessel" (1x) Capacity: 25 Ltr, Useful 20 Ltr Vessel sizes: dia. 345x275mm, Vessel mounted on wheels Dished bottom: check Flat top side: check With jacket: check With propellor stirrer: (spiral "Helix" stirrer) With anchor stirrer: "scraper stirrer" Motor: ± 0,25/0,37 KW Speed mixing shaft: Anchor 30,5/61, Helix 61/122 Rpm With homogeniser: (1500/3000 Rpm) With switch: check Floorspace: 1,2x0,7 M Total height: 1,4 M Extra information: Vessel merk: Brogli General Pressure Main Features Specified Features - Processing vessel Information Technical specs
About this machine

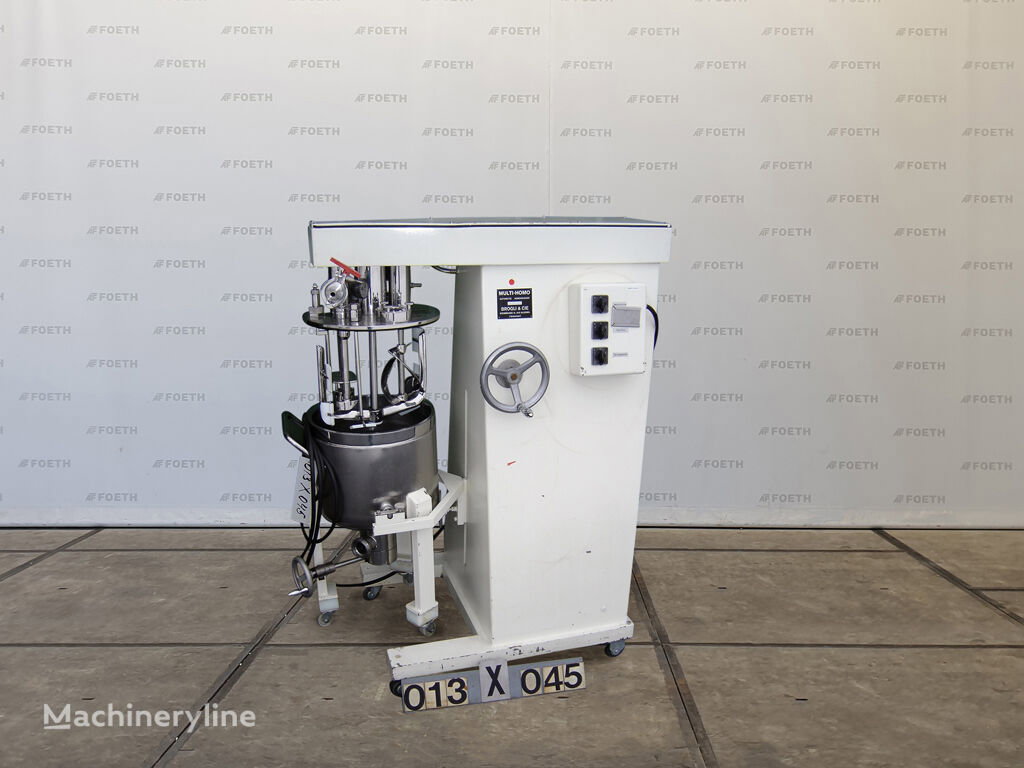

This Brogli MH-20C-1536 is a used tank and container unit — specifically a closed, jacketed vacuum processing vessel, sometimes referred to as a mixing vessel — designed for the contained processing, stirring, and homogenising of liquid or semi-liquid products under controlled pressure and vacuum conditions. Brogli is a Swiss manufacturer with a longstanding reputation for building processing and mixing vessels for the food, pharmaceutical, and cosmetics industries.
The vessel is constructed from stainless steel grade ) and has a total volume of 25 litres, with a useful working capacity of 20 litres. The tank body measures 345 mm in diameter by 275 mm in height, features a dished bottom and a flat top, and is fitted with a full surrounding jacket rated for a working pressure of 1 bar, allowing for temperature-controlled processing through heating or cooling media. The vessel itself operates at 0 bar internal working pressure, and vacuum operation is indicated as a possibility. The entire unit is mounted on wheels for ease of positioning on the production floor.

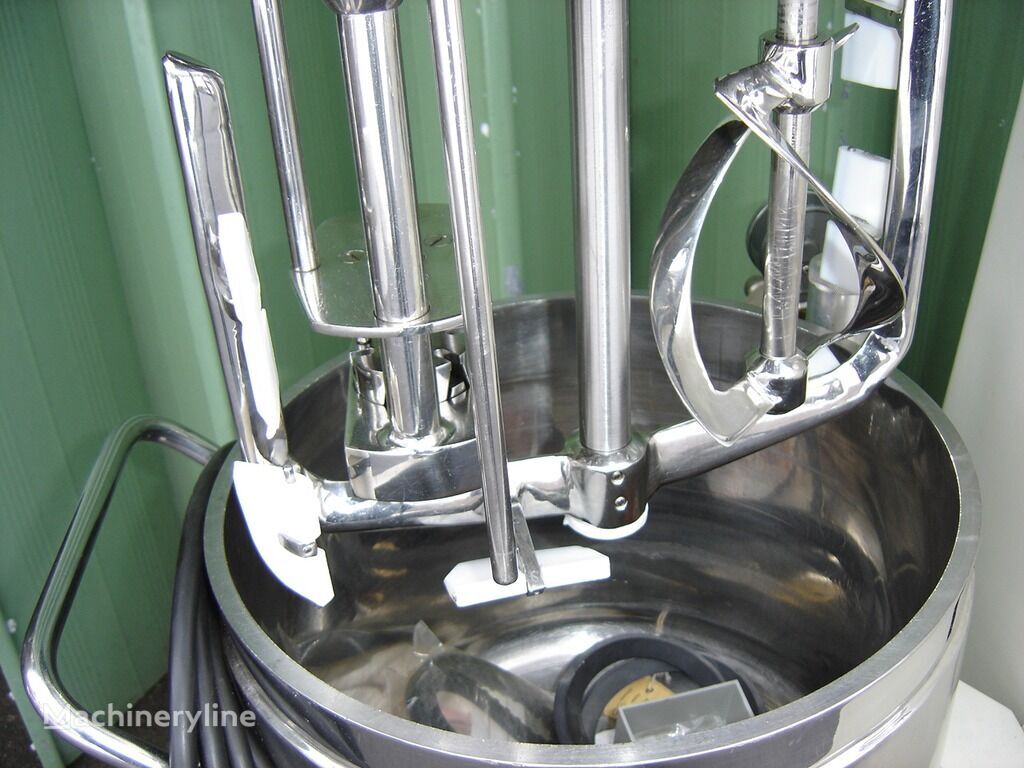

Agitation is provided by two separate stirrers working in combination. An anchor-type scraper stirrer runs at 30.5 or 61 rpm, keeping product moving across the vessel walls and preventing build-up, while a spiral Helix propeller stirrer operates at 61 or 122 rpm for bulk mixing action. A built-in homogeniser adds high-shear processing capability, running at 1,500 or 3,000 rpm. The drive motor is rated at approximately 0.25 to 0.37 kW, and a switch is fitted for operator control. The unit's footprint on the floor is 1.2 by 0.7 metres, with a total height of 1.4 metres.
Dating from 1973, this vessel is offered in used condition and is currently located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
