About this machine

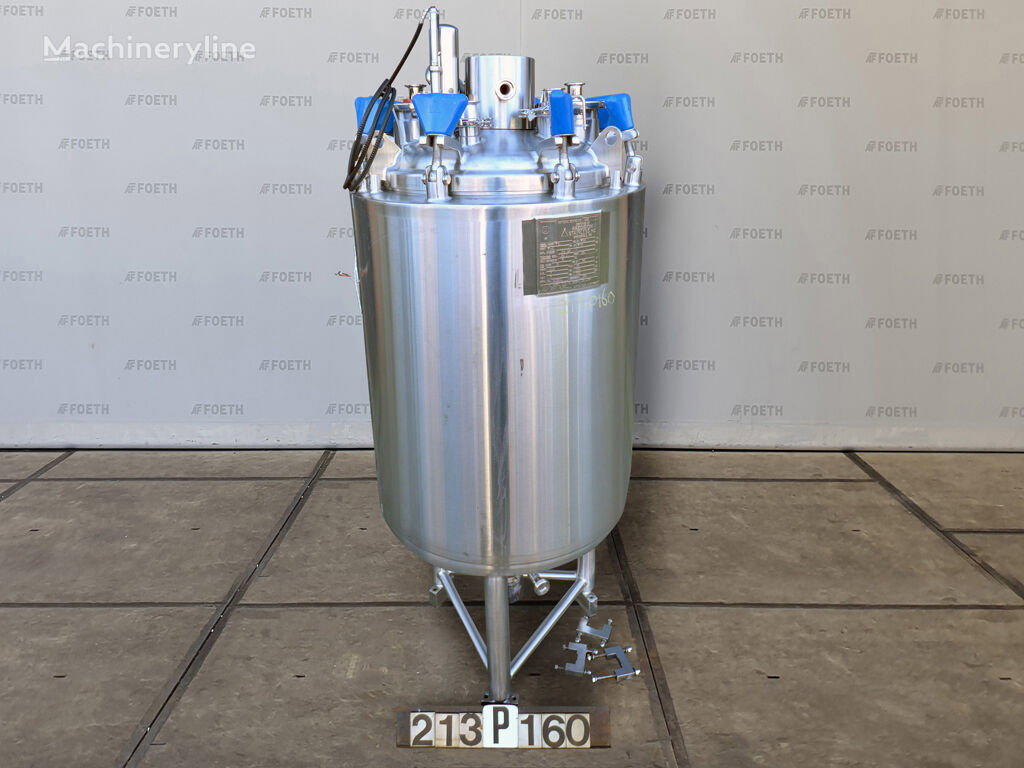

This CRYO VESSEL 125 LTR is a tank and container — a vertical pressure vessel designed to store and contain liquids or gases under controlled pressure conditions, commonly used in biotechnology, pharmaceutical, food processing, and industrial applications. Pressure vessels of this kind are sometimes referred to as pressure tanks or process vessels, and this example is manufactured by Cryo Vessel and identified under serial number by Integrated Biosystems.

The vessel has a working pressure of 3.45 bar and a jacket working pressure of 4.49 bar, with a maximum operating temperature of 80/137 °C. It is built from stainless steel grade L), a corrosion-resistant alloy widely specified for hygienic and chemical process applications. The total usable volume is 125 litres. The vessel features both a dished top and a dished bottom, a configuration that distributes internal pressure evenly and is standard practice in sanitary and industrial pressure vessel design. A jacket is fitted, enabling temperature control of the vessel contents through a heating or cooling medium circulated in the annular space. Vacuum operation is also possible, extending the range of processes the vessel can support.

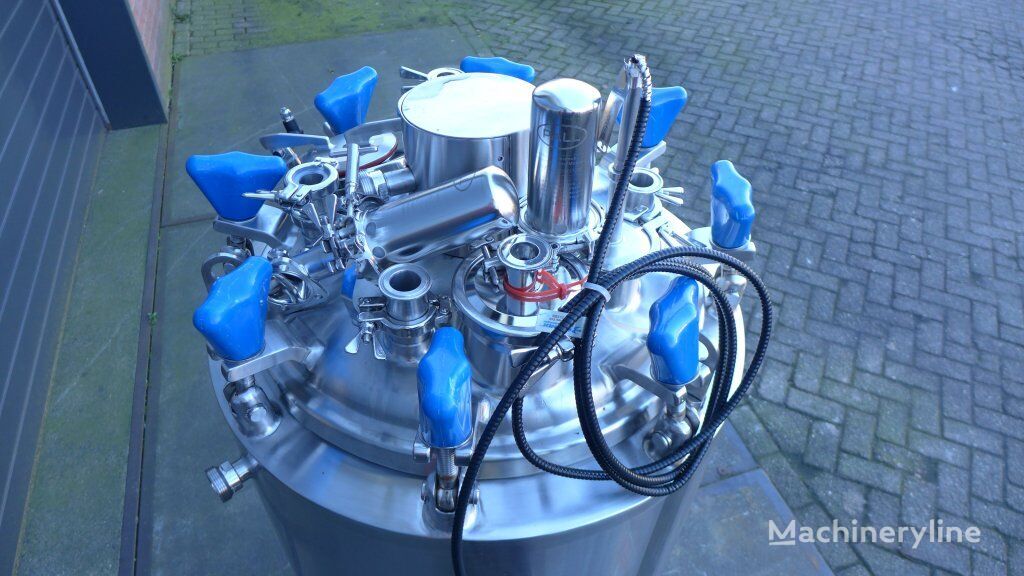

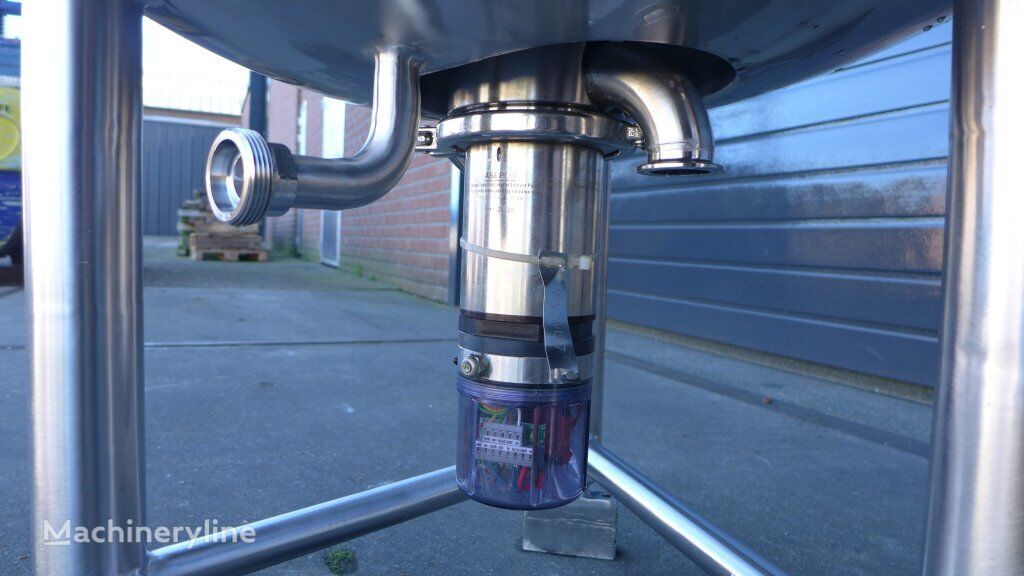

In terms of connections, the top of the vessel is equipped with two nozzles of 65 mm diameter, three nozzles of 38 mm diameter, a 100 mm inspection opening, and two 25 mm nozzles. The outlet is 35 mm in diameter. This array of connections allows for instrumentation, filling, sampling, cleaning-in-place, and process integration. The vessel is mounted on legs and stands to a total height of 1.8 metres, with a floor footprint of 0.7 × 0.7 metres. There is a single vertical pressure tank in this configuration, and a cover is included.

Dating from 1999, the vessel is offered in used condition and is currently located in Barneveld, Netherlands.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
