1985 - DE Dietrich & CIE FR – PRE Tank Container()
- Listing No
- 1177193
- Year
- 1985
- Manufacturer
- DE Dietrich
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 18913 Working pressure: 3.2 Bar Vacuum possible: check Material: Glass Volume: 3425 Ltr Pressure: 3.2 Bar Capacity: 3425 ltr Vessel sizes: dia. 1550x1700mm Dished top: check Dished bottom: check Manhole: inspection door dia. 500mm Top connections: dia. 80mm (4x) dia. 200mm (2x) Outlet: dia. 80mm Max. temperature: 100 degr.C Mounted on legs: check Floorspace: 2,0x2,0 M Total height: 2,3 M merk: De Drietrich & Cie (FR) General Pressure Main Features Specified Features - Pressure vessel Information
About this machine

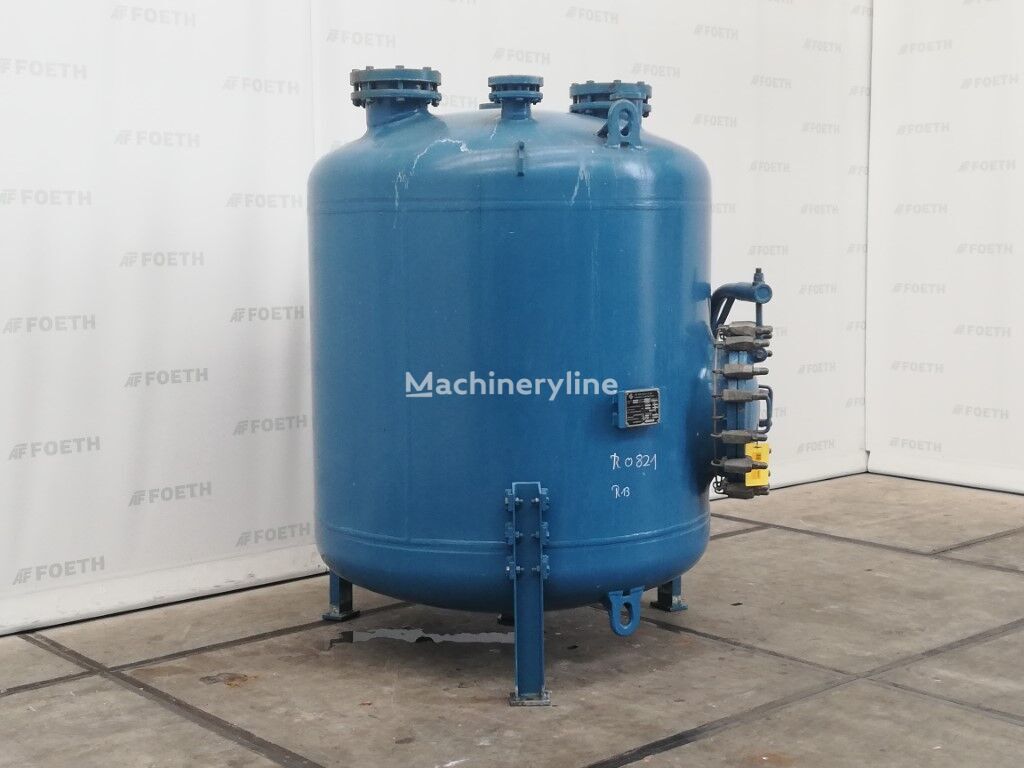

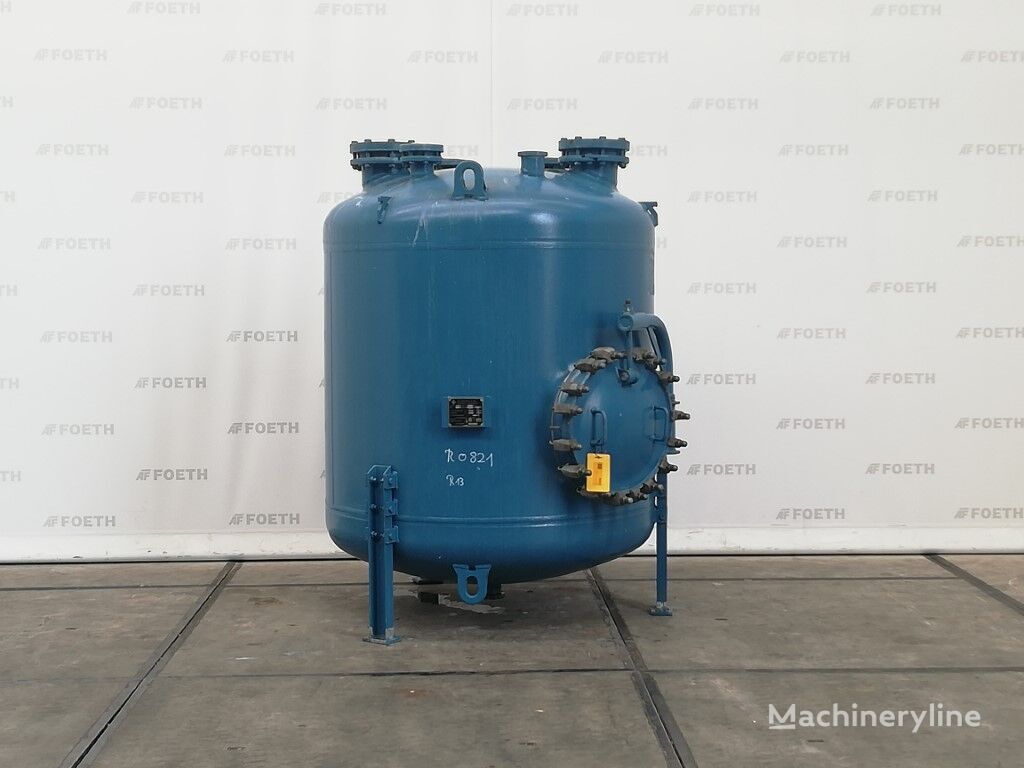

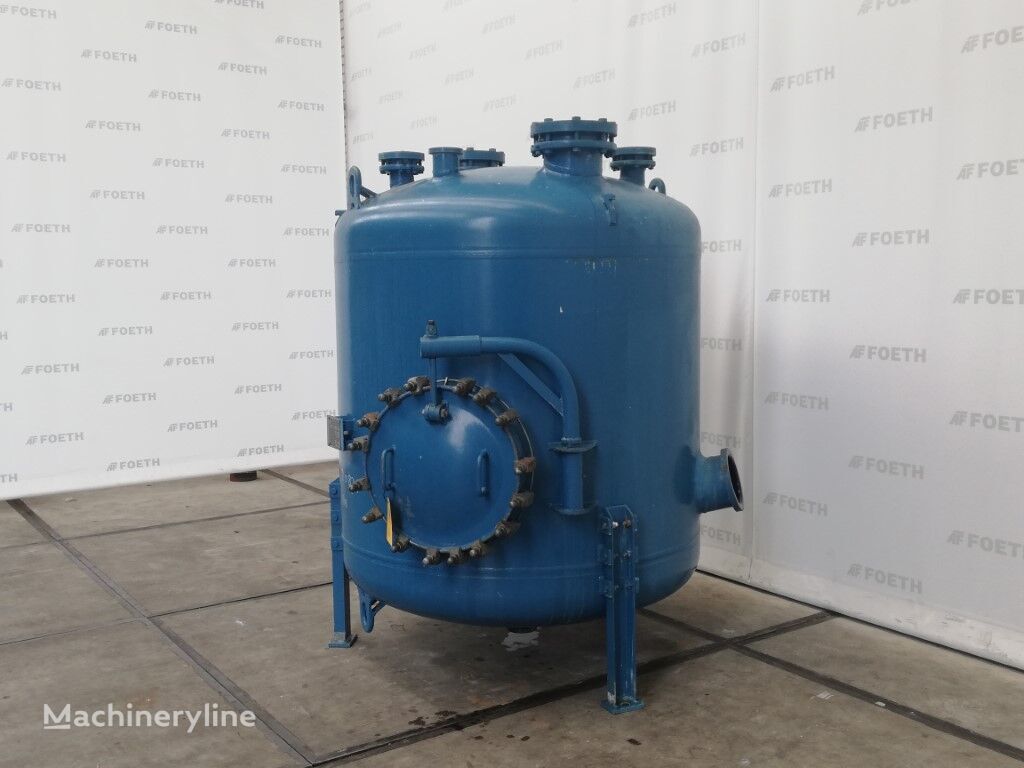

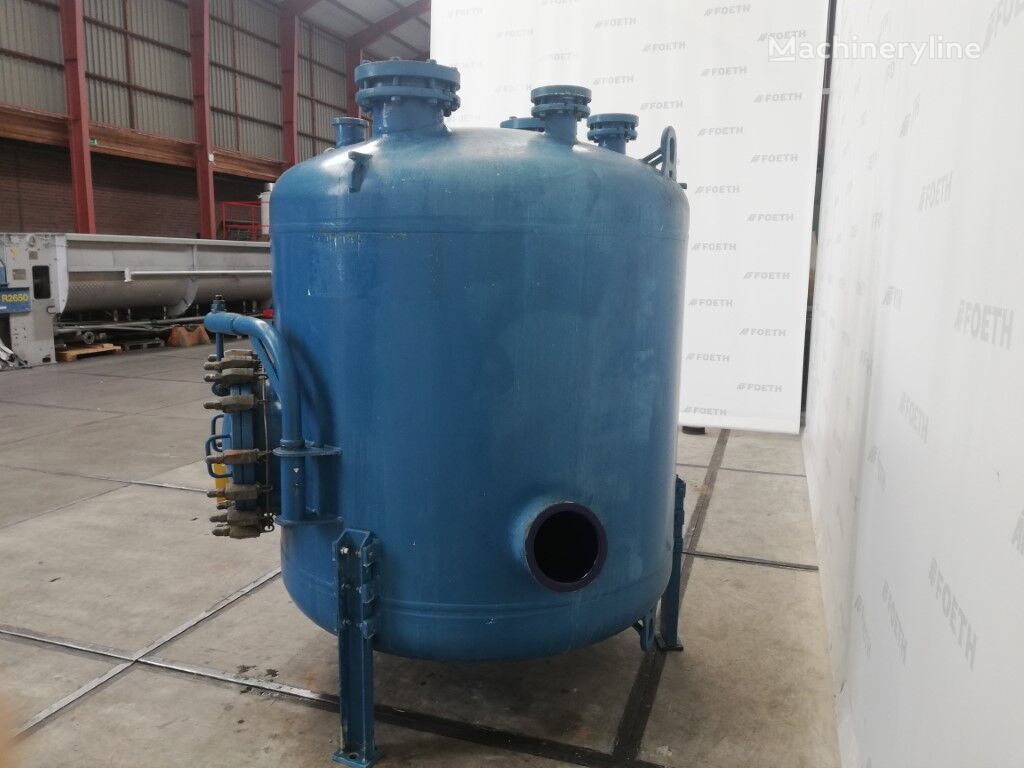

This DE Dietrich listing is a used tank container — sometimes referred to as a pressure vessel — designed to store, contain, and handle liquid or process media under controlled pressure conditions. DE Dietrich & Cie is a well-established French manufacturer with a long history of producing glass-lined process equipment, reaction vessels, and storage tanks for the chemical, pharmaceutical, and fine-chemical industries, where corrosion resistance and product purity are critical requirements.
The vessel has a total capacity of 3,425 litres and is constructed with a glass lining, which provides excellent resistance to corrosive substances and makes it well suited to demanding process environments. The cylindrical body measures 1,550 mm in diameter and 1,700 mm in length, giving a floor footprint of 2.0 × 2.0 metres and a total installed height of 2.3 metres. Both the top and bottom heads are dished, contributing to structural integrity under pressure and facilitating complete drainage.

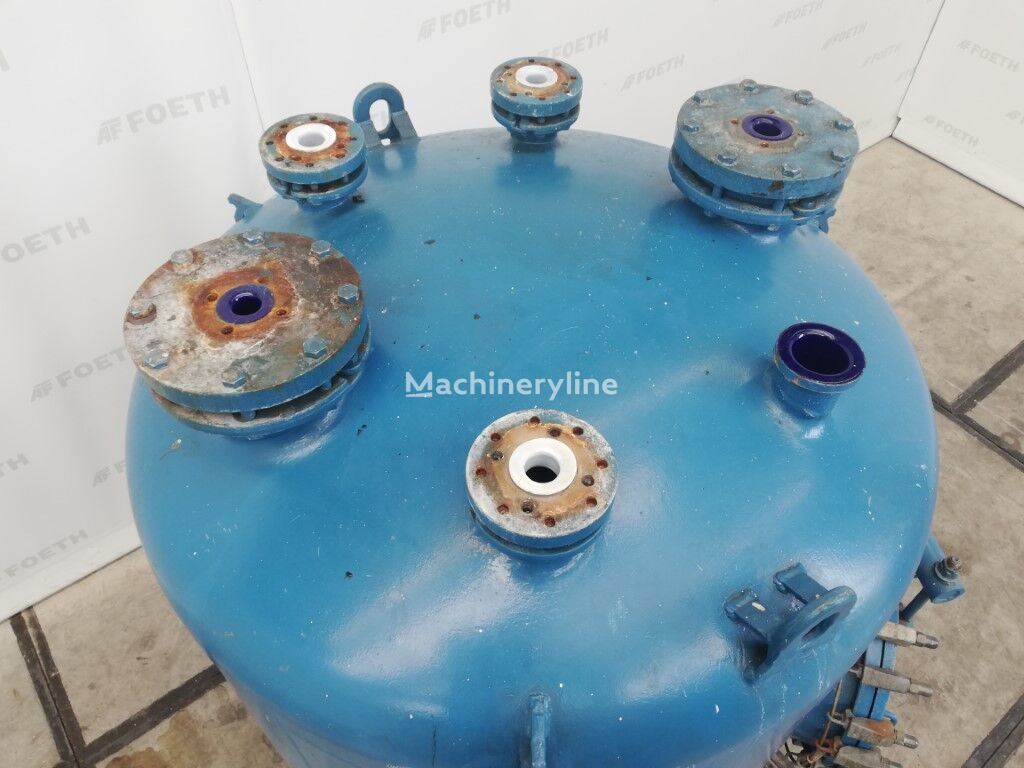

The tank is rated to a working pressure of 3.2 bar, and vacuum operation has been noted as a possibility. The maximum operating temperature is 100 °C. Access for inspection and cleaning is provided by a manhole with an inspection door of 500 mm diameter. Process connections on the top of the vessel include four nozzles of 80 mm diameter and two nozzles of 200 mm diameter, while the outlet at the base is 80 mm in diameter. The vessel is mounted on legs, allowing it to stand independently on the floor.
This unit dates from 1985 and is offered in used condition from a location in Barneveld, Netherlands, with the internal seller reference number 18913.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
