1990 - DE Dietrich Tank Container()
- Listing No
- 1165527
- Year
- 1990
- Manufacturer
- DE Dietrich
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: 1000 Ltr No: 22014 Working pressure: 3.2 Bar Vacuum possible: check Working pressure jacket: 7 Bar Material: Glass - Enamel (3009) Volume: 1000 Ltr Pressure: 3.2 Bar Vacuum: check Capacity: 1240 Ltr (nett.1000 Ltr) Vessel sizes: dia. 1000mm x1810mm Dished top: check Dished bottom: check With cover: check Top connections: DN200 (2x), DN100 (2x), DN80 (2x) Outlet: DN80 Max. temperature: 30/120 Degr. C With jacket: (82 Ltr) With propellor stirrer: check Motor: 0.75 kW, 230/400 Volt (EX) Speed mixing shaft: 317 rpm Total height: 2,8 M Floorspace: 1,4x1,4 M ATEX compatible: check General Pressure Main Features Specified Features - Pressure vessel Information
About this machine

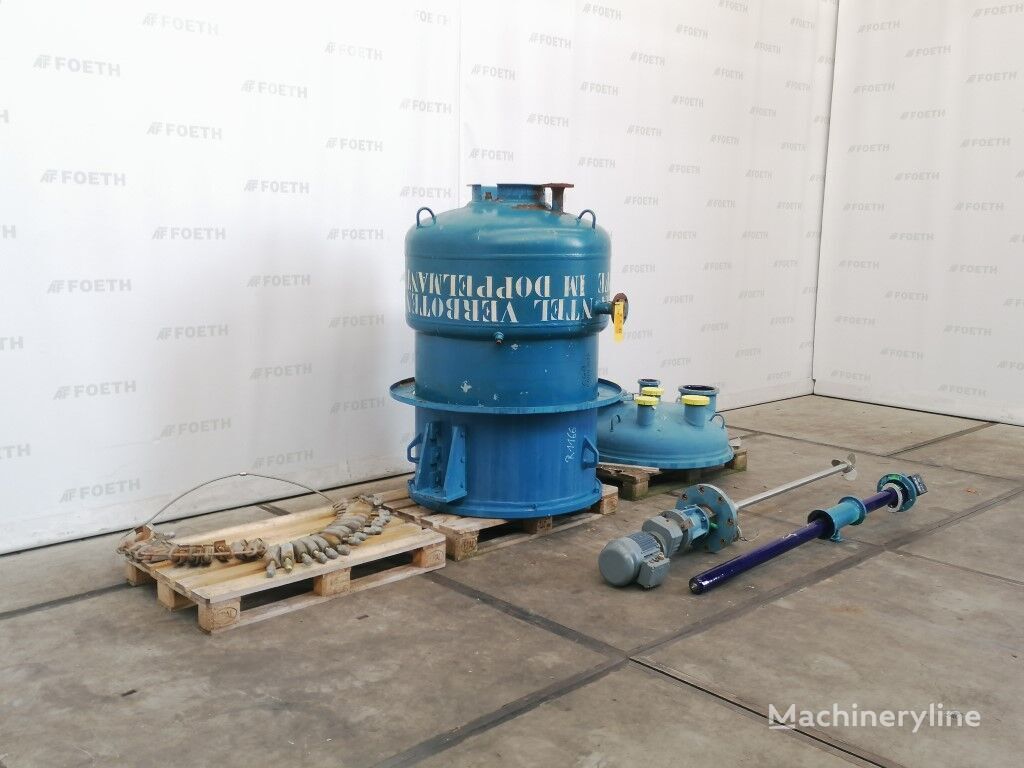

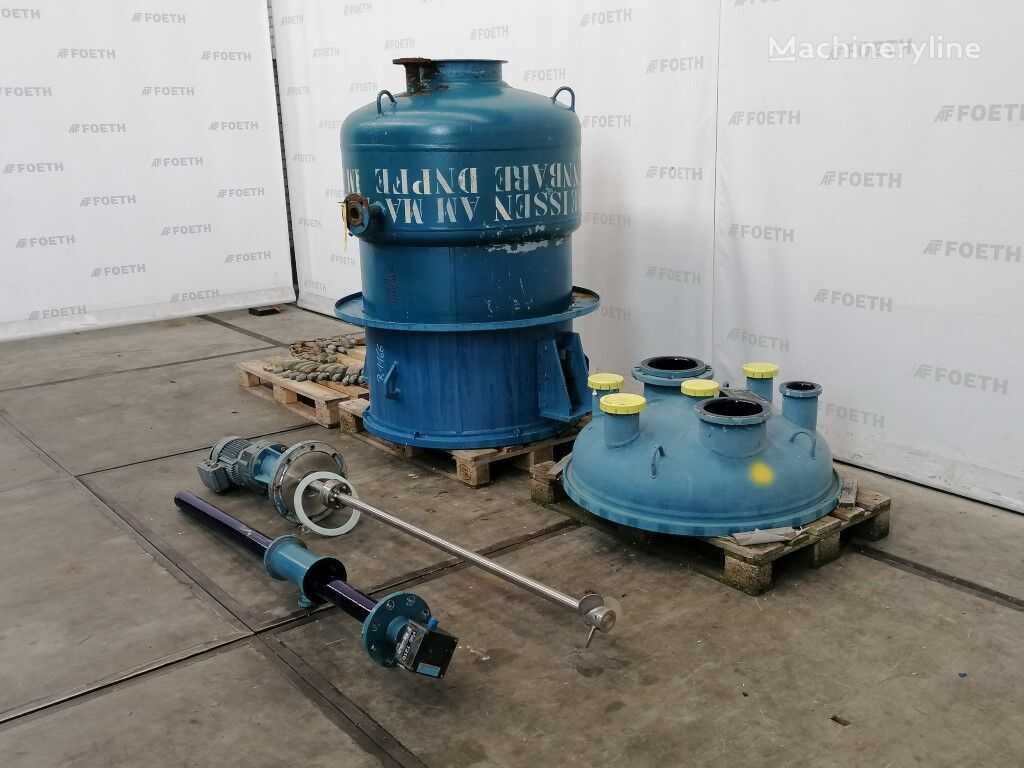

This DE Dietrich is a used tank container — sometimes referred to as a process vessel or mixing vessel — designed for the storage, containment, and agitation of liquids under controlled pressure and temperature conditions. DE Dietrich is a well-established manufacturer with a long history in corrosion-resistant process equipment, serving the chemical, pharmaceutical, and fine-chemical industries with glass-lined reactors, vessels, and related process technology.
The vessel has a total gross capacity of 1,240 litres and a net working volume of 1,000 litres, with a cylindrical shell diameter of 1,000 mm and a shell length of 1,810 mm. The interior is finished in glass enamel to DE Dietrich specification 3009, a material well suited to handling corrosive or reactive substances where contamination must be avoided. Both the top and bottom heads are dished, and the unit is supplied with a cover.
Working pressure in the main vessel is rated at 3.2 bar, and the vessel is also capable of operating under vacuum. The jacket — which holds 82 litres and is used for heating or cooling the vessel contents via a heat-transfer medium — is rated to a separate working pressure of 7 bar. The permissible temperature range runs from 30 °C to 120 °C.

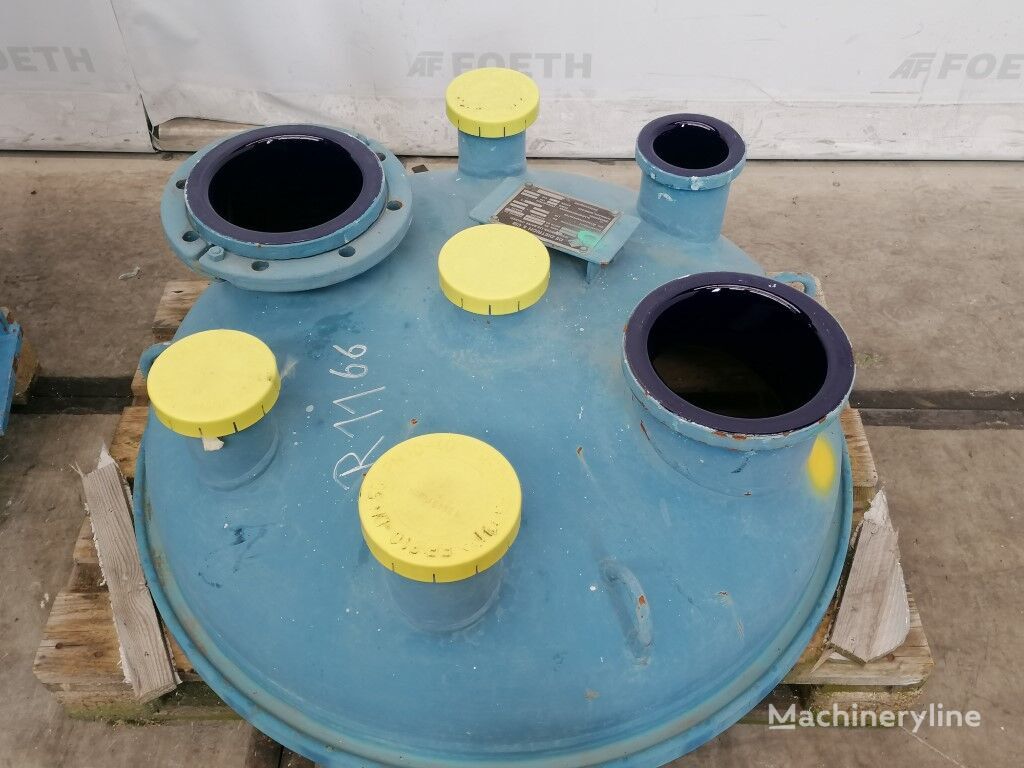

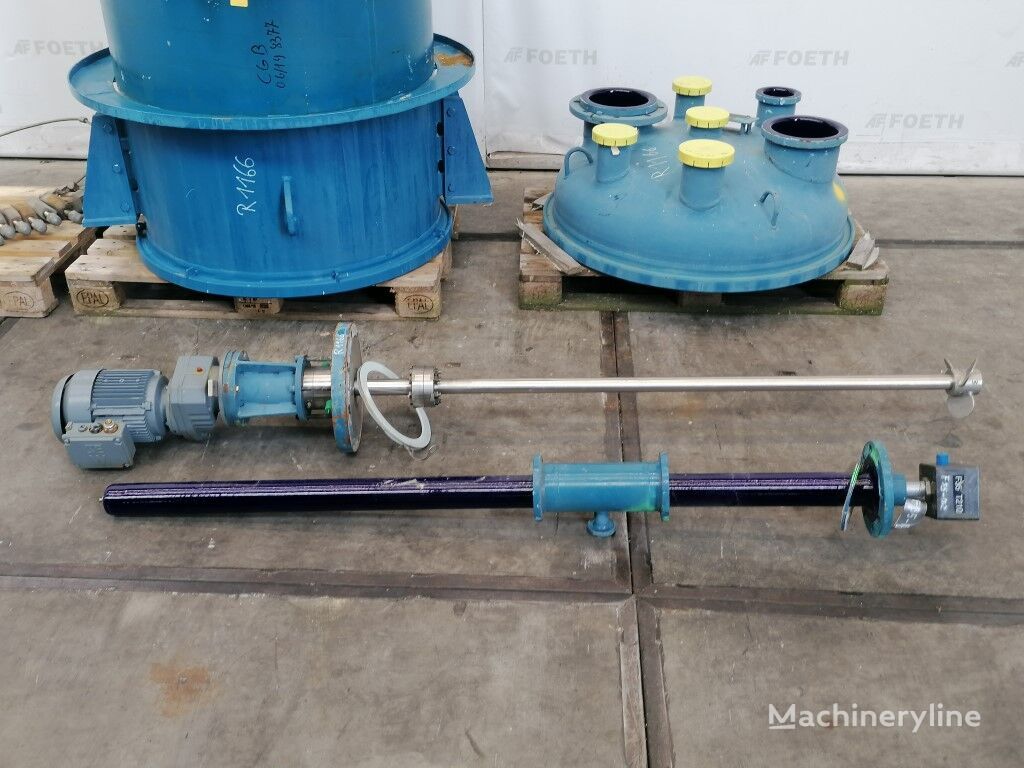

The unit is fitted with a propeller stirrer driven by a 0.75 kW explosion-proof (EX) motor rated for 230/400 volt supply, with the mixing shaft turning at 317 rpm. The vessel is ATEX compatible, making it suitable for use in potentially explosive atmospheres. The main outlet is DN80, and the top head carries an array of process connections: two DN200 nozzles, two DN100 nozzles, and two DN80 nozzles, providing flexibility for instrumentation, charging, and ancillary pipework.
The overall installed height of the unit is 2.8 metres, and it occupies a floor footprint of 1.4 × 1.4 metres. The vessel carries serial number 22014, dates from 1990, and is located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
