2008 - Detombay Tank Container()
- Listing No
- 1177211
- Year
- 2008
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 6202 Working pressure: 0.49 Bar Working pressure jacket: 5 Bar Material: Stainless steel 1.4301 (304), Stainless steel 1.4571 (316Ti) Volume: 1100 Ltr Pressure: 0.49 Bar Closed vertical tank: check Capacity: 1100 Ltr Vessel sizes: 1100x1682 mm Dished top: check Dished bottom: check Top connections: DN50, DN25 Outlet: DN25 Max. temperature: 40ºC With jacket: check Mounted on legs: check Floorspace: 1,3x1,3 m CE: check Total height: 2,3 m Extra information: Mantel volume 215 Ltr, test pressure 7,5 bar merk: Detombay General Pressure Main Features Specified Features - Vertical tank Information Technical specs
About this machine

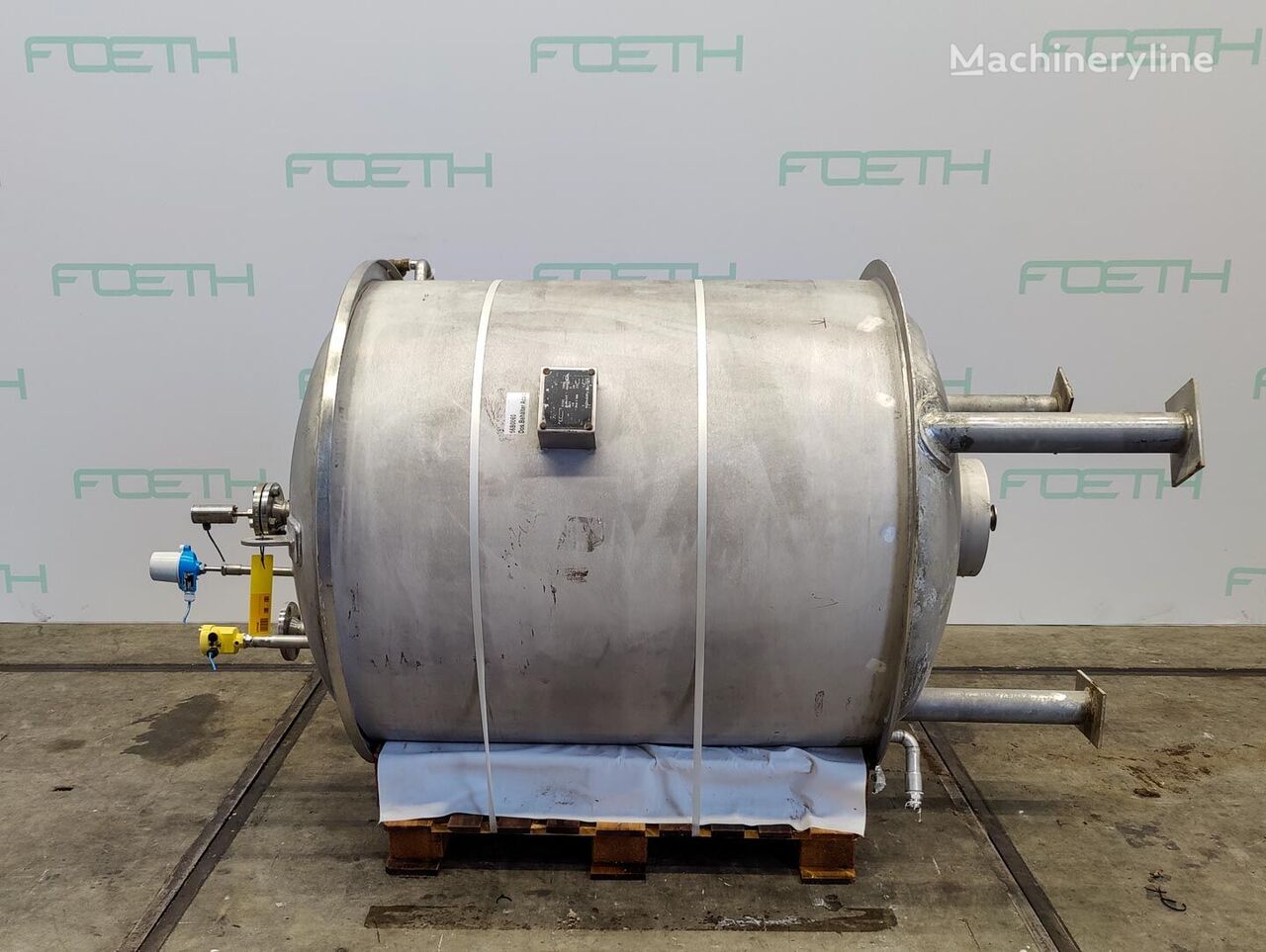

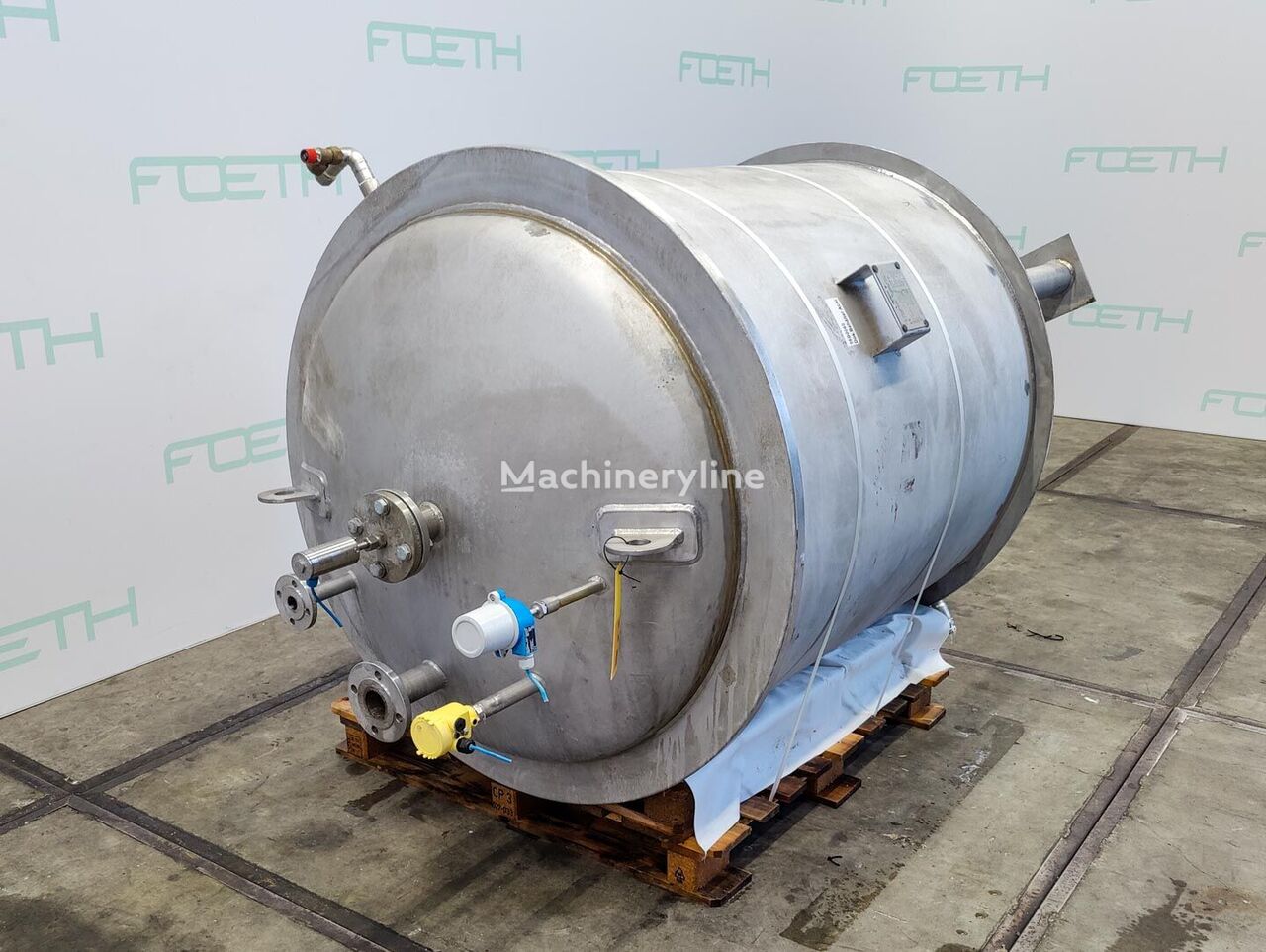

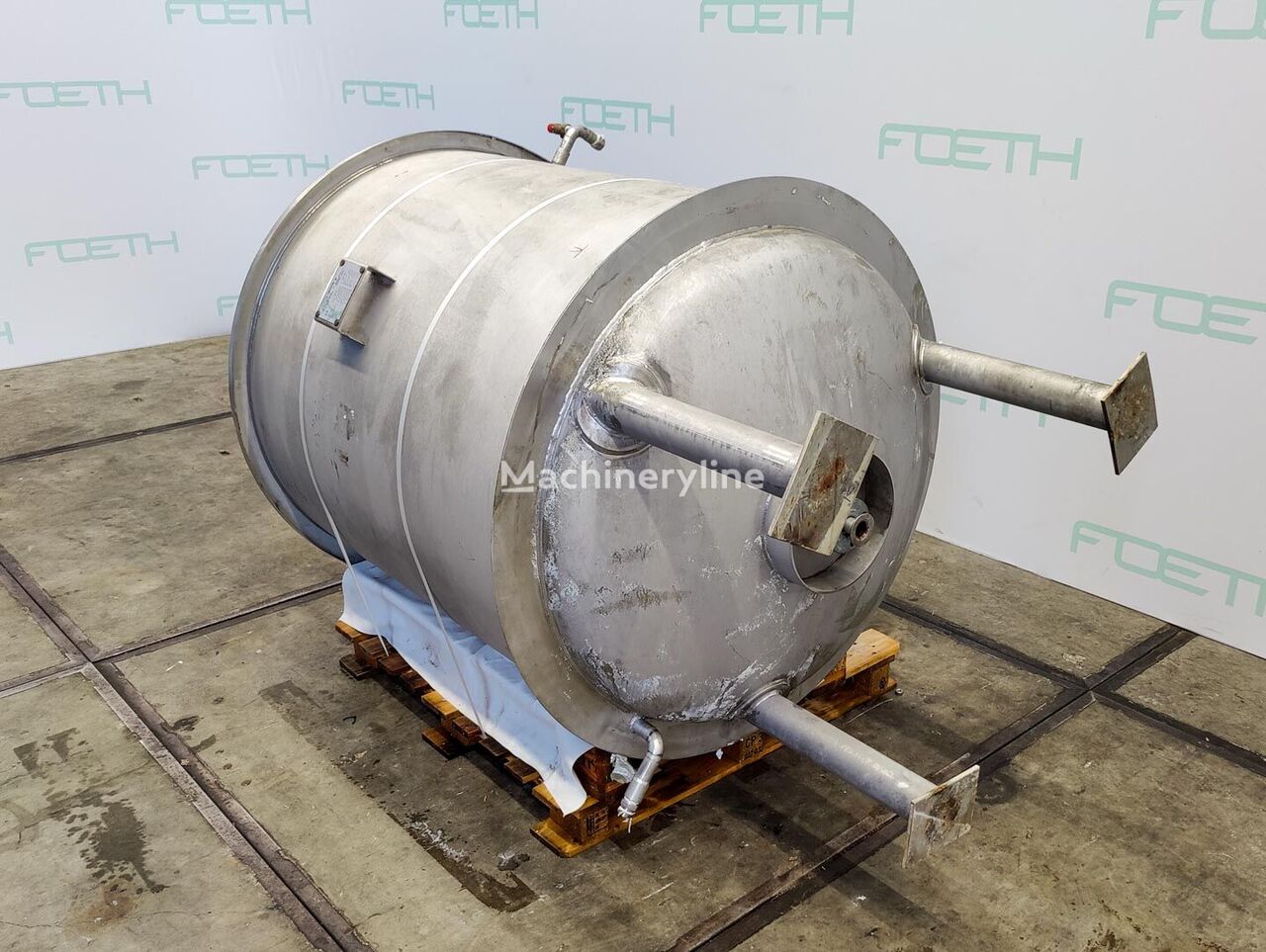

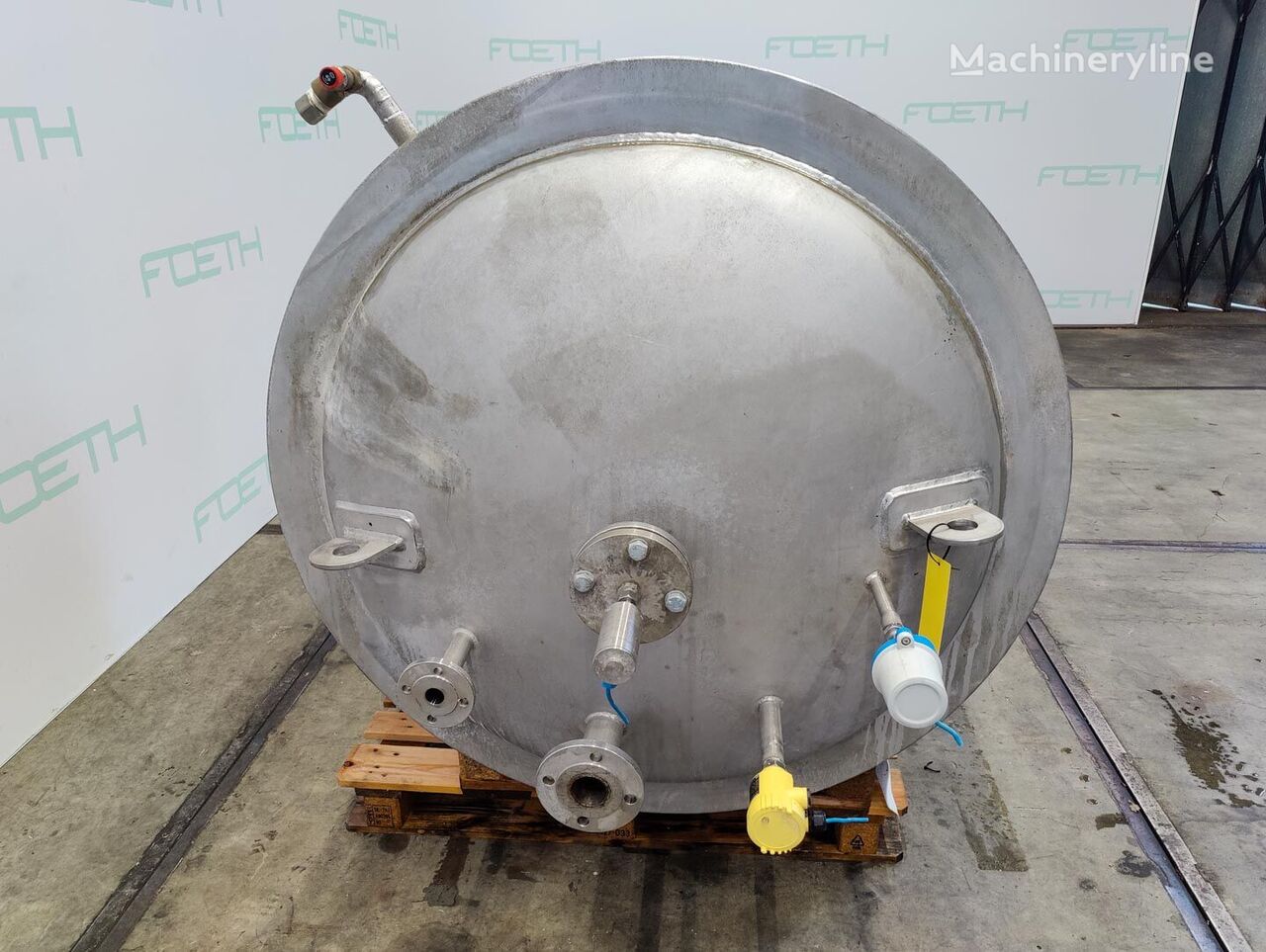

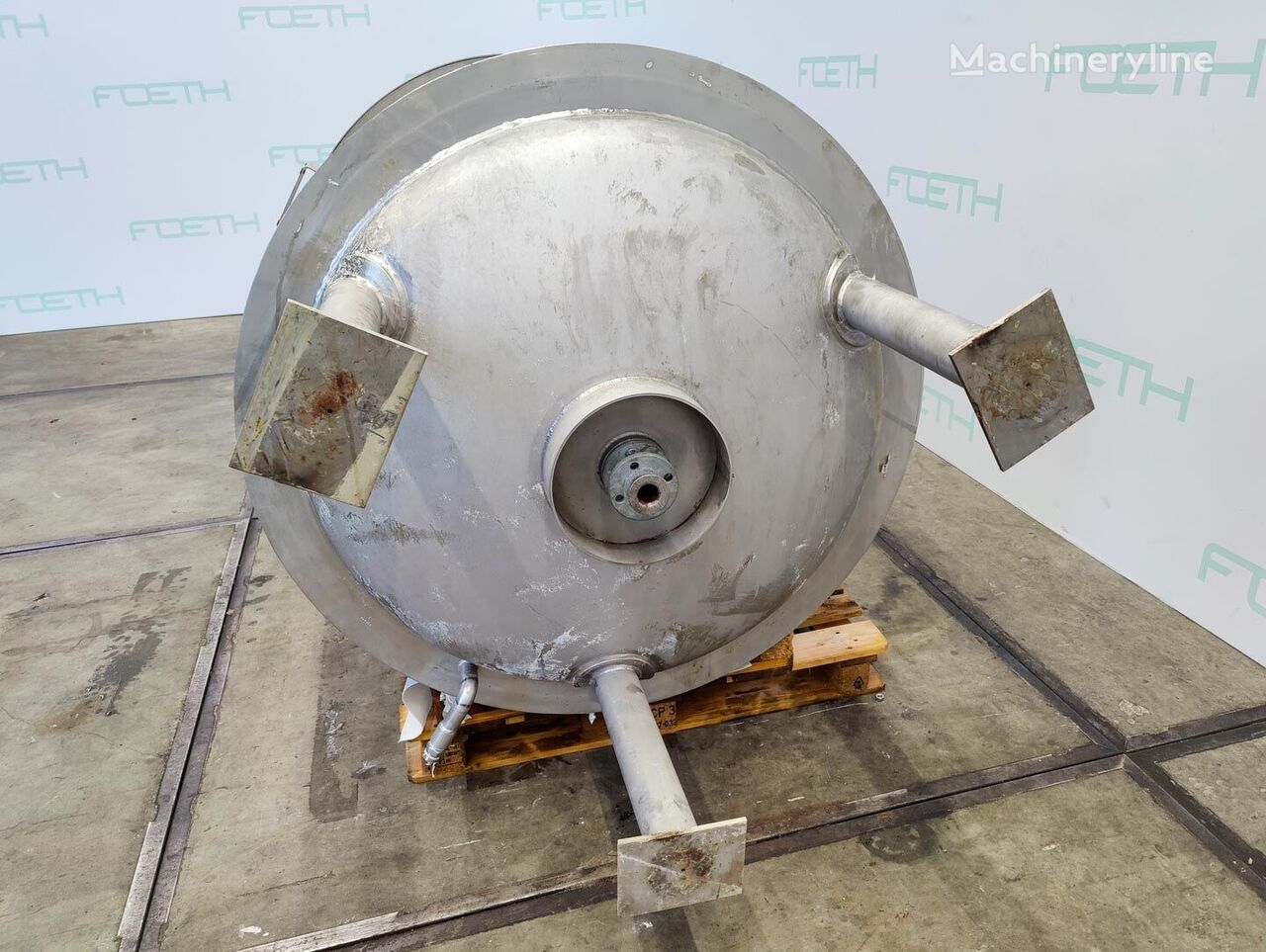

This Detombay is a used tank container — sometimes referred to as a pressure vessel or process tank — designed for the contained storage and handling of liquids under controlled pressure conditions. Tank containers of this type are widely used across the food, chemical, and pharmaceutical industries wherever hygienic or corrosion-resistant liquid storage is required.
Constructed in stainless steel, the vessel combines two grades of material: 1.4301 (AISI 304) and 1.4571 (AISI 316Ti), the latter offering enhanced resistance to pitting and crevice corrosion, making it suitable for more aggressive media. The tank has a capacity of 1,100 litres and measures 1,100 × 1,682 mm across its vessel dimensions, with a total installed height of 2.3 metres. It is mounted on legs and occupies a floor footprint of 1.3 × 1.3 metres, making it a practical fit for facilities with limited floor space.
The tank is a closed vertical design with a dished top and dished bottom, both of which are standard features on pressure-rated vessels as they distribute stress evenly and aid in complete drainage. The working pressure is rated at 0.49 bar, with a test pressure of 7.5 bar confirming the integrity of the vessel. The maximum operating temperature is 40 °C.
A jacket surrounds the vessel, enabling temperature control of the contents through a heating or cooling medium. The jacket carries its own working pressure rating of 5 bar and has a volume of 215 litres. Top connections are provided at DN50 and DN25, and the outlet is DN25. The unit is CE marked and was manufactured in 2008. It is located in Barneveld, Netherlands, and carries internal reference number 6202.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
