1993 - Druckbehälter 630L Tank Container()
- Listing No
- 1177976
- Year
- 1993
- Manufacturer
- Model
- Condition
- Used
- Location
- Germany
- Price
- $3,000
- Description
-
model/type: Pressure vessel 630L Construction year: 1993 material: Stainless steel 1.4571 (V4A) capacity: 630 liters Dead mass: 442 kg operating pressure: -1.0 / +3.0 bar Test pressure: 6.0 bar Approval: CH-EMPA-194 Tank coding: L10DH Special provision: TE21 Tara according to the sign: 445,4 kg Max. permissible total weight: 1500 kg The vacuum-proof pressure vessel from the company Gempp-Unhold AG is a reliable solution for industrial processes where pressure resistance and material quality are paramount. Manufactured in 1993, the vessel is made of high-quality stainless steel 1.4571 (V4A) and offers a volume of 630 litersThe version is designed for an operating pressure of -1.0 / +3.0 bar and tested at 6.0 bar. The system consists of the parts shown in the pictures. Advantages: - Vacuum-proof: Suitable for vacuum processes and sensitive media. - Corrosion-resistant stainless steel: Ideal for chemical, pharmaceutical and food industries. - Pressure and temperature resistant: Operating range from -30 °C to +200 °C. - sustainability: Reuse protects the environment and saves costs. --------------------------------------------------------------- General functions - Pressure vessels for storing or processing liquids and gases - Vacuum-resistant design - Multiple flange connections (e.g. filling, removal, venting) - Robust, welded stainless steel construction - Temperature resistant from -30°C to +200°C - Sturdy frame construction for safe handling and storage --------------------------------------------------------------- CO₂ savings Based on an empty weight of 442kg stainless steel, CO₂ savings are achieved through reuse of: ≈ 2,200–2,700kg CO₂ This is equivalent to the CO₂ emissions of a small car over approximately one year. Buying used saves resources.
About this machine

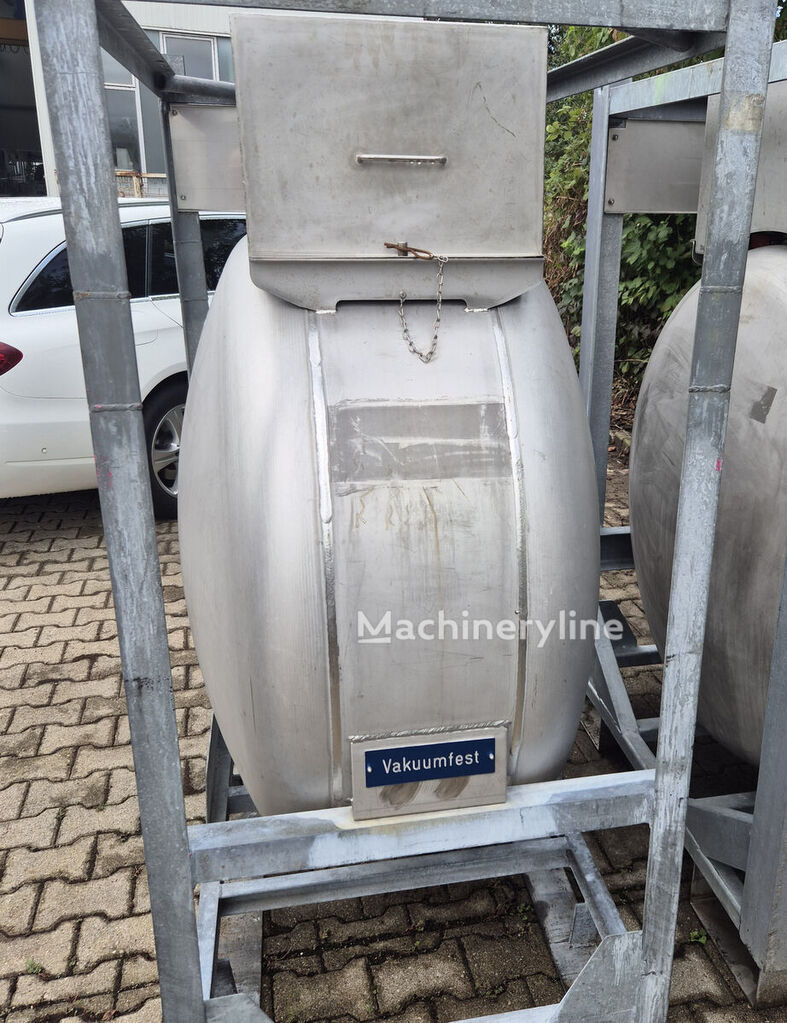

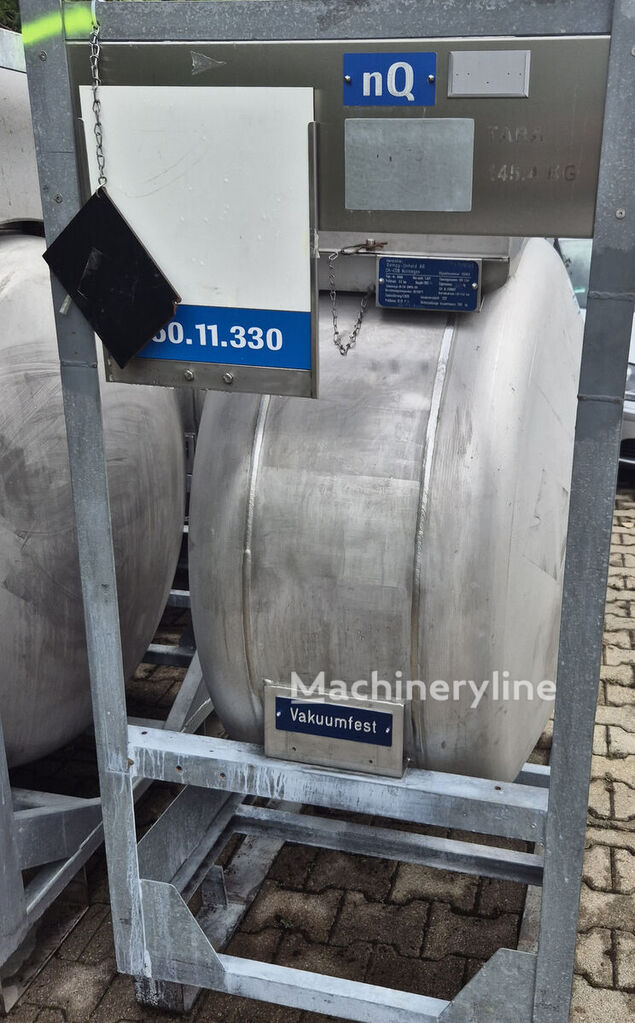

This used tank and container — sometimes referred to as a pressure vessel or pressure tank — is a vacuum-proof, stainless steel storage and process vessel designed for the safe containment of liquids and gases under pressure or vacuum conditions. Units of this type are widely used across the chemical, pharmaceutical, and food processing industries wherever media integrity, corrosion resistance, and pressure control are critical requirements. This example was manufactured in 1993 by Gempp-Unhold AG and is offered in used condition from Germany at $3,000.

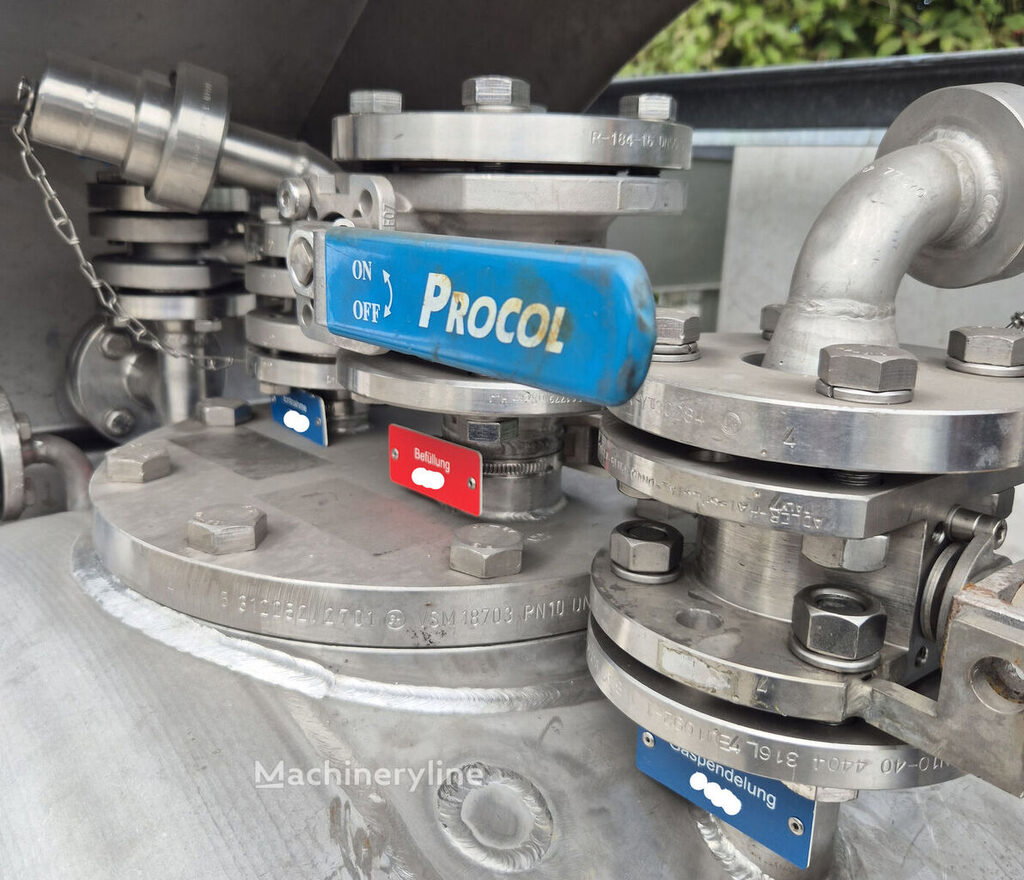

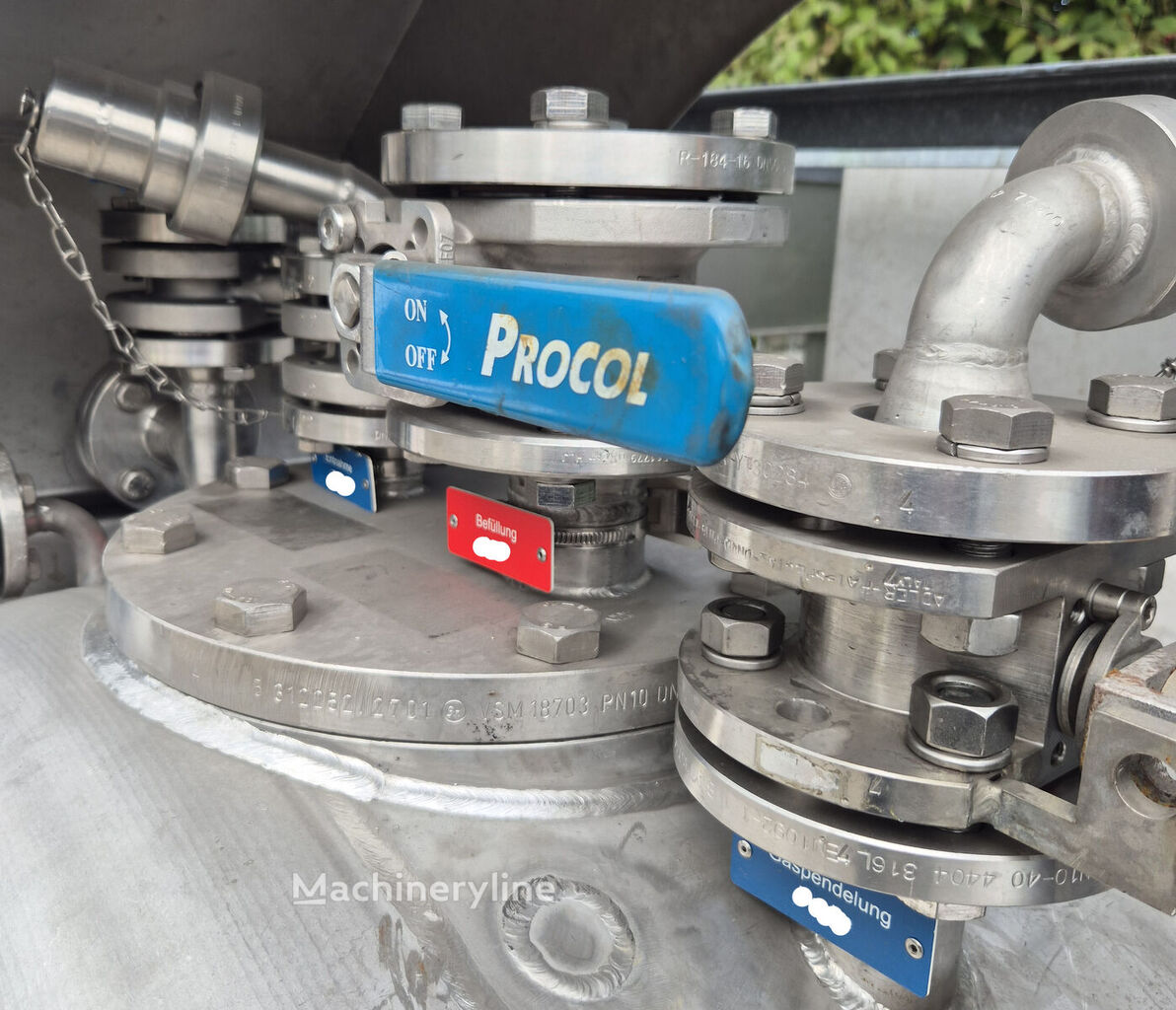

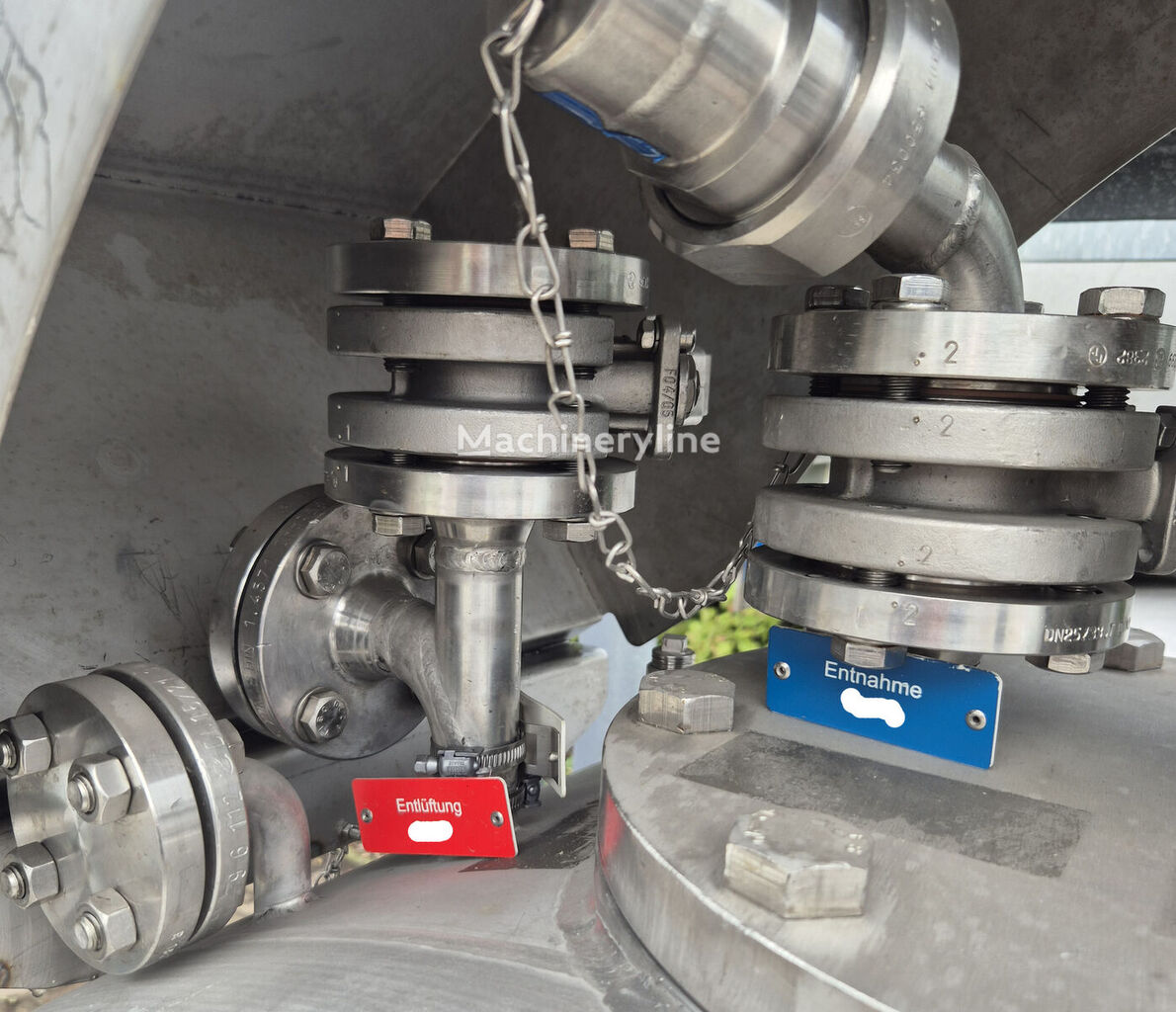

The vessel is constructed from stainless steel grade 1.4571 (V4A), a molybdenum-alloyed austenitic steel chosen for its excellent resistance to corrosion and aggressive media. It offers a capacity of 630 litres and carries an empty (dead) mass of 442 kg, with a tare weight per the data plate of 445.4 kg and a maximum permissible gross weight of 1,500 kg. The welded stainless steel construction includes a robust frame for safe handling and storage, along with multiple flange connections for filling, discharge, and venting operations.
The pressure rating is -1.0 / +3.0 bar, meaning the vessel is fully rated for both vacuum and positive-pressure service. It has been test-pressurised to 6.0 bar. The approved operating temperature range runs from -30 °C to +200 °C, making it suitable for both cryogenic-adjacent and elevated-temperature processes. The vessel holds approval reference CH-EMPA-194, a tank coding of L10DH, and special provision TE21, all of which are relevant for regulatory compliance and transport classification purposes.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
