1996 - Enco Tank Container()
- Listing No
- 1179763
- Year
- 1996
- Manufacturer
- Enco
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: 509 ltr No: 8317/2 Working pressure: 3.2 Bar Vacuum possible: check Material: Stainless steel 1.4571 (316Ti) Volume: 509 Ltr Pressure: 3.2 Bar Vacuum: check Notified body: (Tuv) Capacity: 509 Ltr Vessel sizes: dia.800x900mm Dished bottom: check Top connections: (3x)DN50, DN80, DN100, DN125, DN200 Outlet: DN50 Max. temperature: 45 degr. C. (vessel 160 degr.C.) With propellor stirrer: "Semix 040" Motor: 0,5 KW, 400Volt (EEX e II T3) Speed mixing shaft: 690rpm Mounted on legs: check Floorspace: 1,1x1,1 M Total height: 2,5 M General Pressure Main Features Specified Features - Pressure vessel Information
About this machine

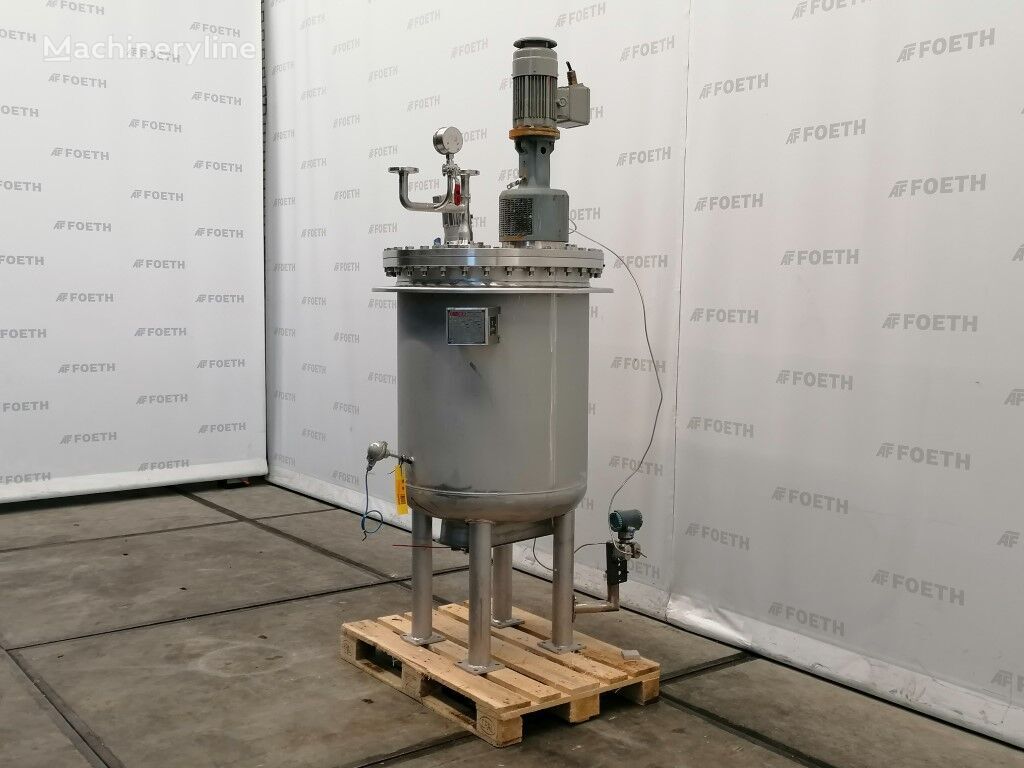

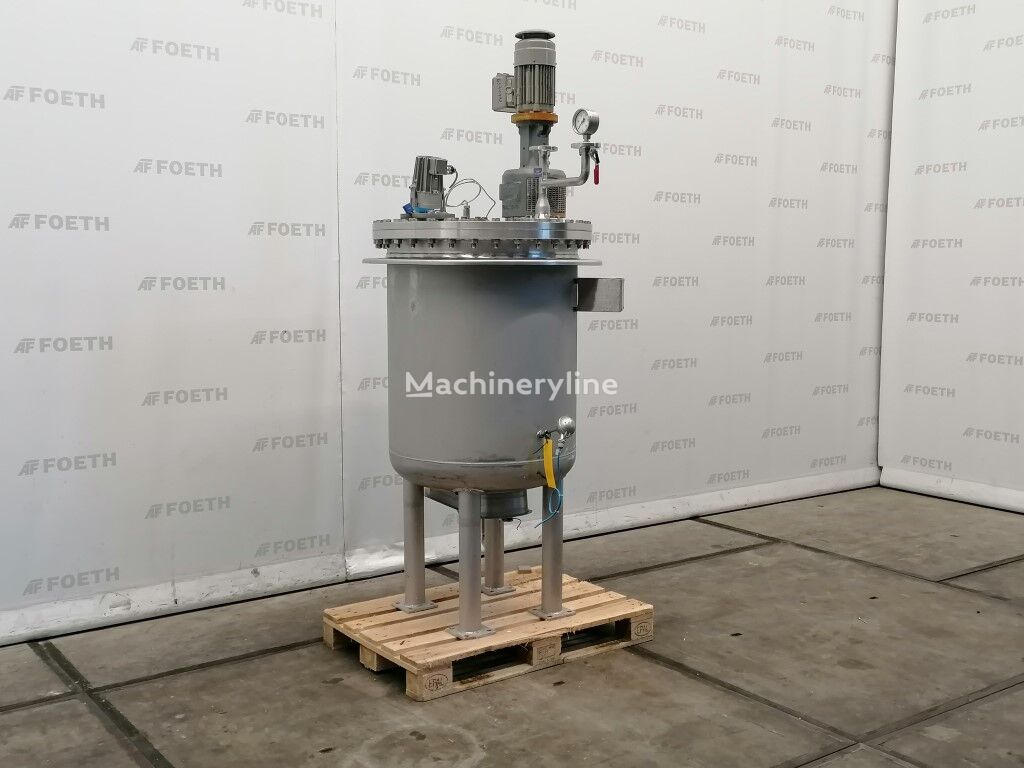

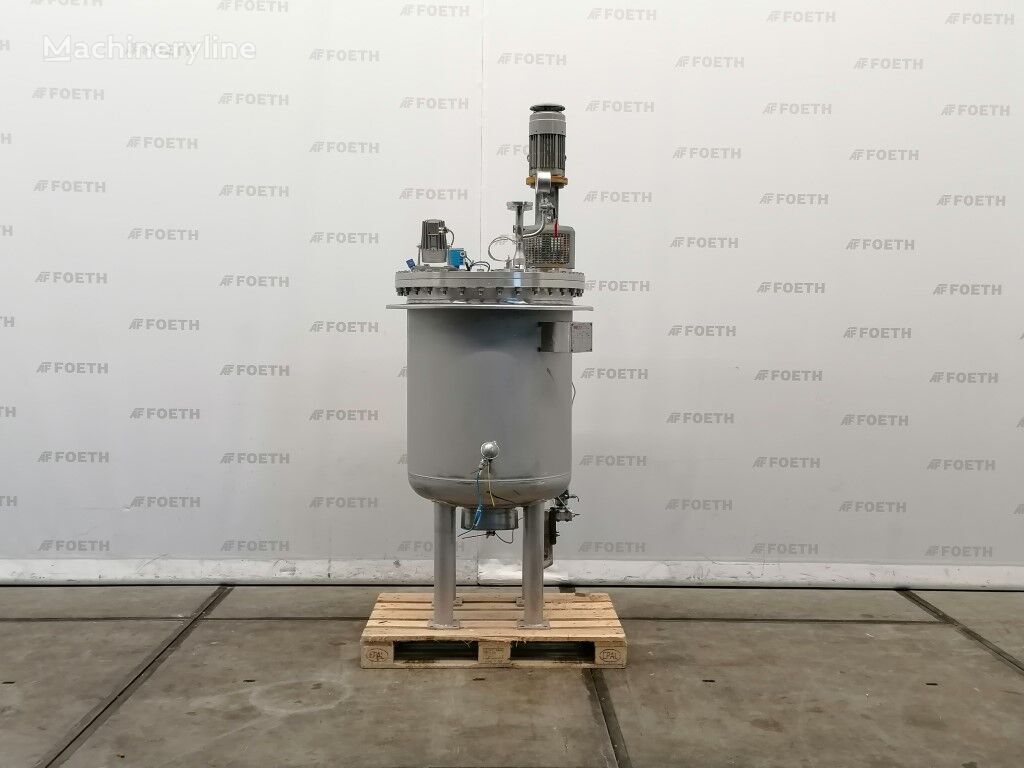

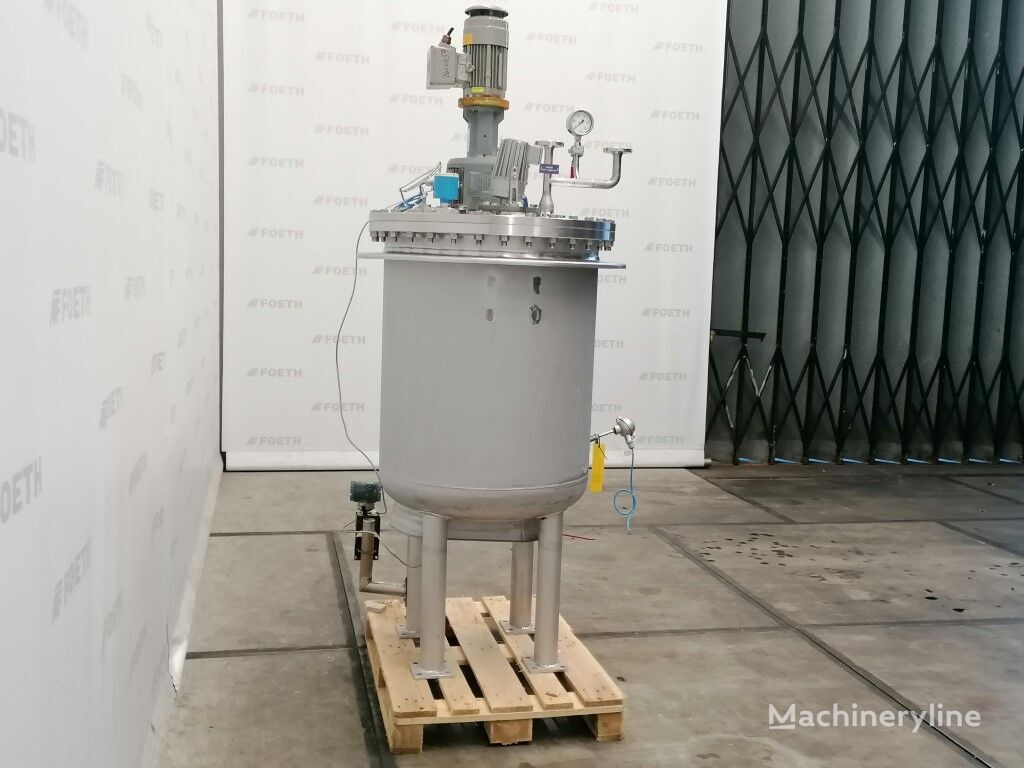

This Enco is a used tank container — sometimes referred to as a pressure vessel — designed to store, mix, and process liquids under controlled pressure and vacuum conditions. Built in 1996 and currently located in Barneveld, Netherlands, it is constructed from stainless steel grade Ti), a molybdenum-bearing austenitic alloy known for its excellent corrosion resistance and suitability for demanding process environments in the food, chemical, and pharmaceutical industries.
The vessel has a capacity of 509 litres and a cylindrical body measuring 800 mm in diameter by 900 mm in height, with a dished bottom. It is rated to a working pressure of 3.2 bar and is also equipped for vacuum operation. The maximum operating temperature at the vessel exterior is 45 °C, while the vessel itself is rated to 160 °C internally. The unit carries TÜV notified-body certification, confirming compliance with applicable pressure equipment requirements. Its serial number is 8317/2.

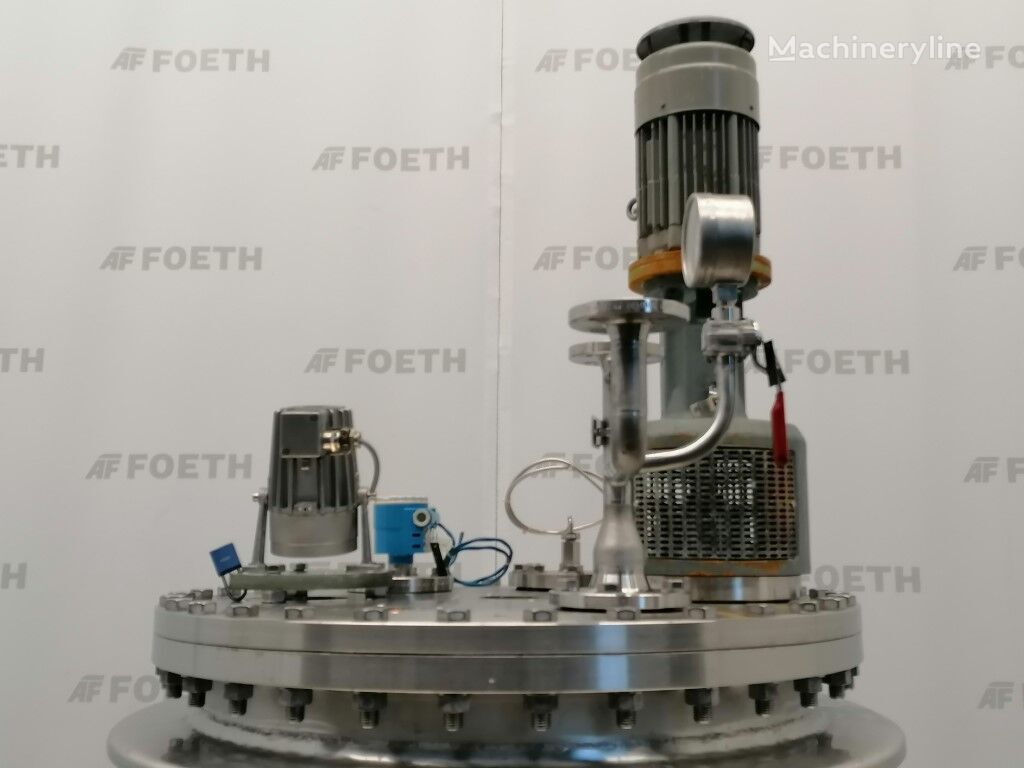

The tank is fitted with a Semix 040 propeller stirrer driven by a 0.5 kW, 400-volt explosion-protected motor rated EEx e II T3, meaning it is suitable for use in hazardous areas. The mixing shaft runs at 690 rpm, providing consistent agitation of the vessel contents.
Connection options are extensive. The top of the vessel features five connections: three at DN50, one at DN80, one at DN100, one at DN125, and one at DN200. A DN50 outlet is provided at the base. The vessel is mounted on legs, giving a floor footprint of 1.1 × 1.1 metres and a total installed height of 2.5 metres.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
