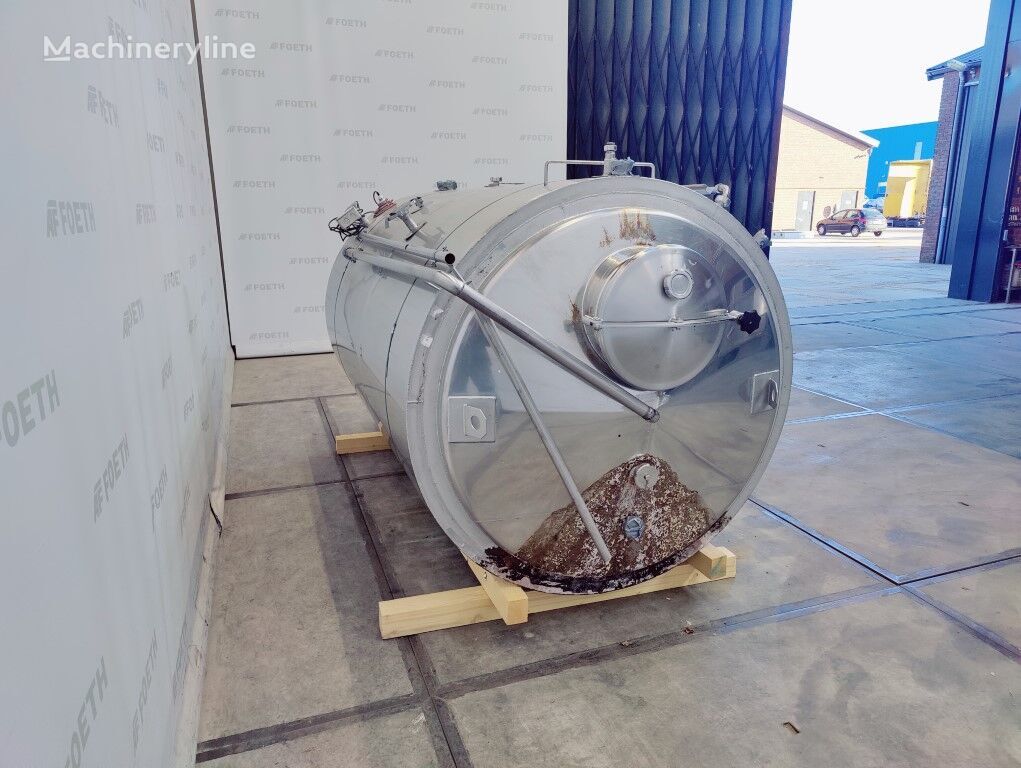

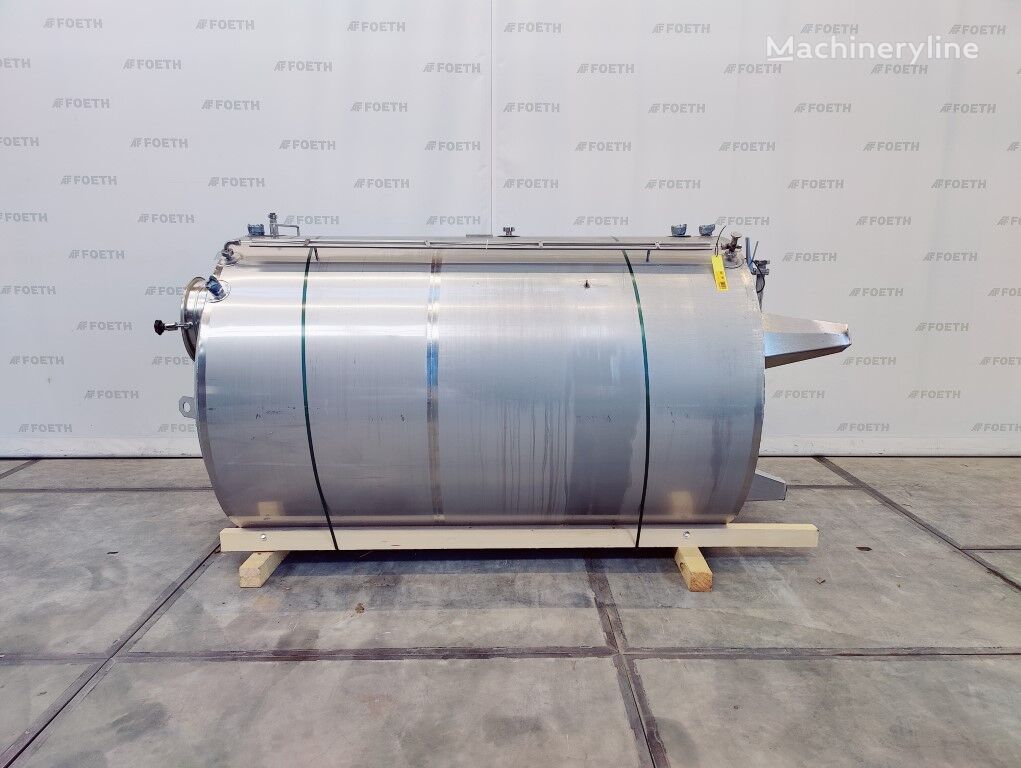

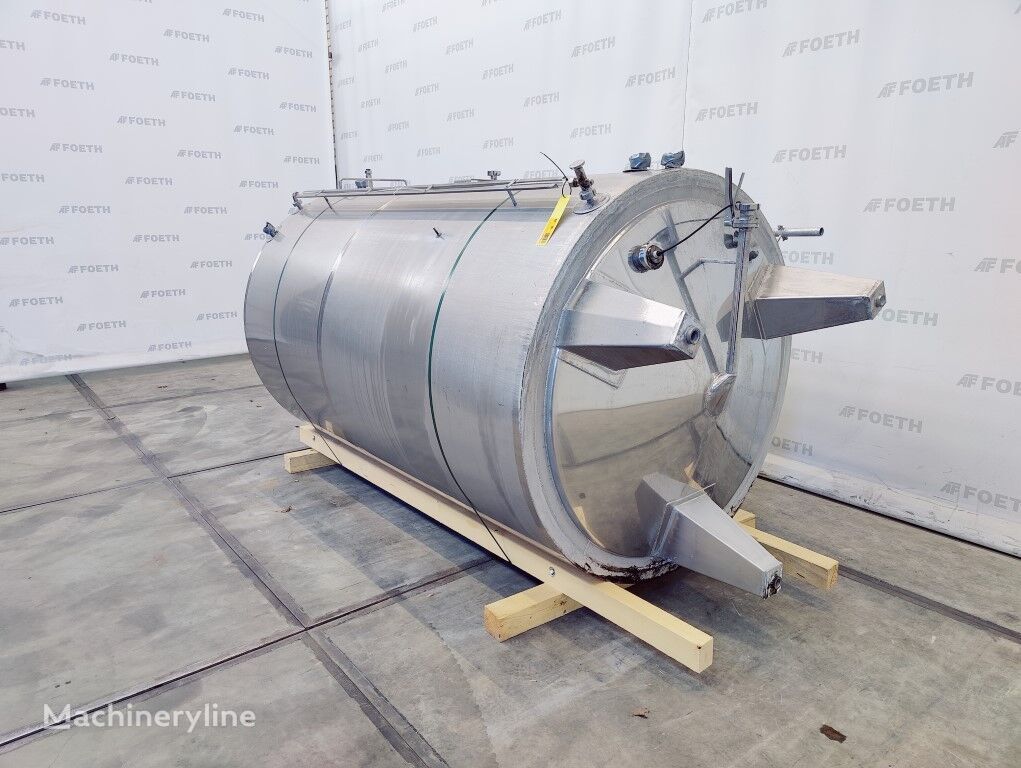

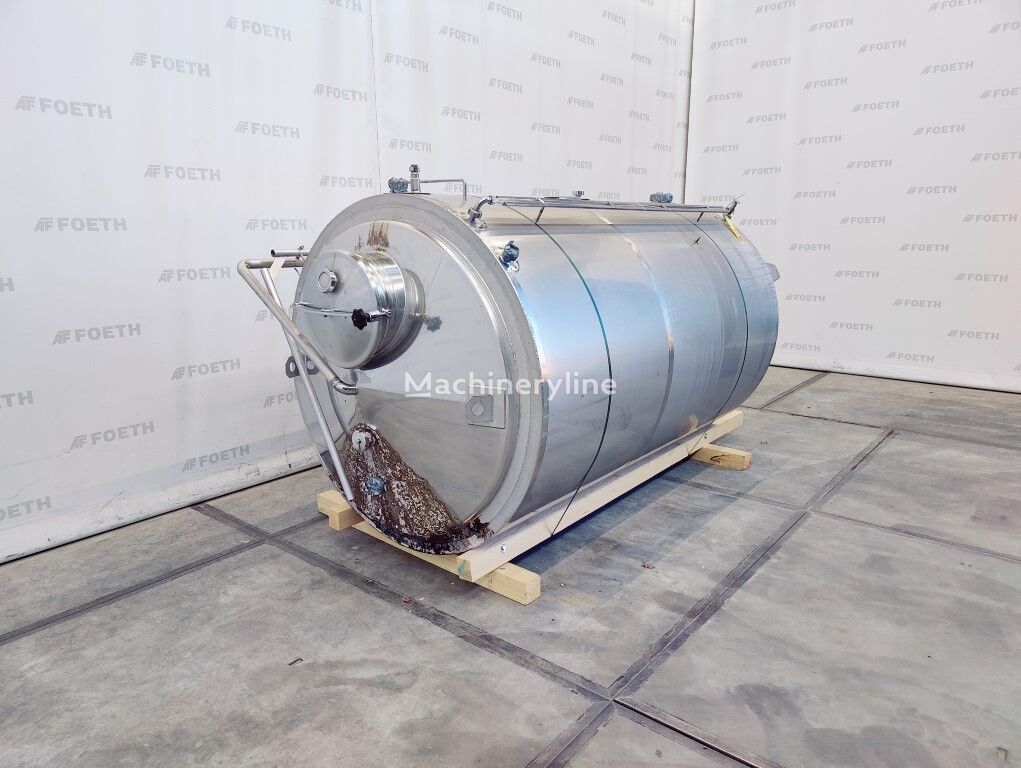

1989 - Ernst 3700 LTR. – VE Tank Container()
- Listing No
- 1179920
- Year
- 1989
- Manufacturer
- Ernst
- Model
- 3700 LTR. - VE
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 89060 1 Working pressure jacket: 1.5 Bar Material: Stainless steel 1.4306 (304L) Volume: 3700 Ltr Closed vertical tank: check Capacity: 3700 Ltr Vessel sizes: dia. 1400x2500 mm Dished top: check Dished bottom: check Manhole: dia. 400 mm Top connections: DN 50 (2x) Outlet: dia. 38 mm With jacket: 106 Ltr Max. temperature: 127 °C Mounted on legs: check Floorspace: 1,8x1,8 m Total height: 2,3 m Extra Specifications: with CIP-nozzles General Pressure Main Features Specified Features - Vertical tank Information
About this machine
The Ernst 3700 LTR. - VE Tank Container is a vertical tank container — sometimes referred to as a storage vessel or process tank — used for holding, processing, or transporting liquid products under controlled temperature and pressure conditions. Such tanks are widely employed in food and beverage, dairy, pharmaceutical, and chemical processing industries wherever hygienic, pressurised liquid containment is required.
This closed vertical tank was manufactured in 1989 and is constructed from stainless steel grade L), a low-carbon austenitic alloy chosen for its corrosion resistance and suitability for food-grade and CIP (clean-in-place) applications. The vessel has a total volume and capacity of 3,700 litres, with a cylindrical body measuring 1,400 mm in diameter and 2,500 mm in length. Both the top and bottom ends are dished, a configuration that evenly distributes internal pressure and facilitates complete drainage.
The tank is fitted with a jacket holding 106 litres, designed to allow heating or cooling media to circulate around the vessel wall. The working pressure of the jacket is rated at 1.5 bar, and the maximum permitted process temperature is 127 °C. A manhole of 400 mm diameter provides internal access for inspection and cleaning. Connections at the top consist of two DN 50 flanged ports, and the outlet is sized at 38 mm in diameter. The tank is also equipped with CIP nozzles, enabling automated clean-in-place washing without dismantling the vessel.
The unit is mounted on legs, giving it a floor footprint of 1.8 × 1.8 metres and a total installed height of 2.3 metres. It is located in Barneveld, Netherlands, and is offered in used condition under internal reference number 89060 1.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
