1992 - Estrella Ag (CH) – Pressure vessel Tank Container()
- Listing No
- 1177287
- Year
- 1992
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: 2500 Ltr No: 89680 Working pressure: 3.2 Bar Vacuum possible: check Working pressure jacket: 7 Bar Material: Glass Volume: 2500 Ltr Pressure: 3.2 Bar Vacuum: check Capacity: 2660 Ltr (2500 Ltr nett) Vessel sizes: dia. 1365x1650mm Dished top: check Dished bottom: check Manhole: dia. 600mm Top connections: DN100 (4x) DN200 (1x) Outlet: DN100 Max. temperature: 10/200 degr. C With jacket: check With propellor stirrer: check Motor: check Closed vertical tank: check merk: Estrella Ag (CH) General Pressure Main Features Specified Features - Pressure vessel Pressure vessels
About this machine

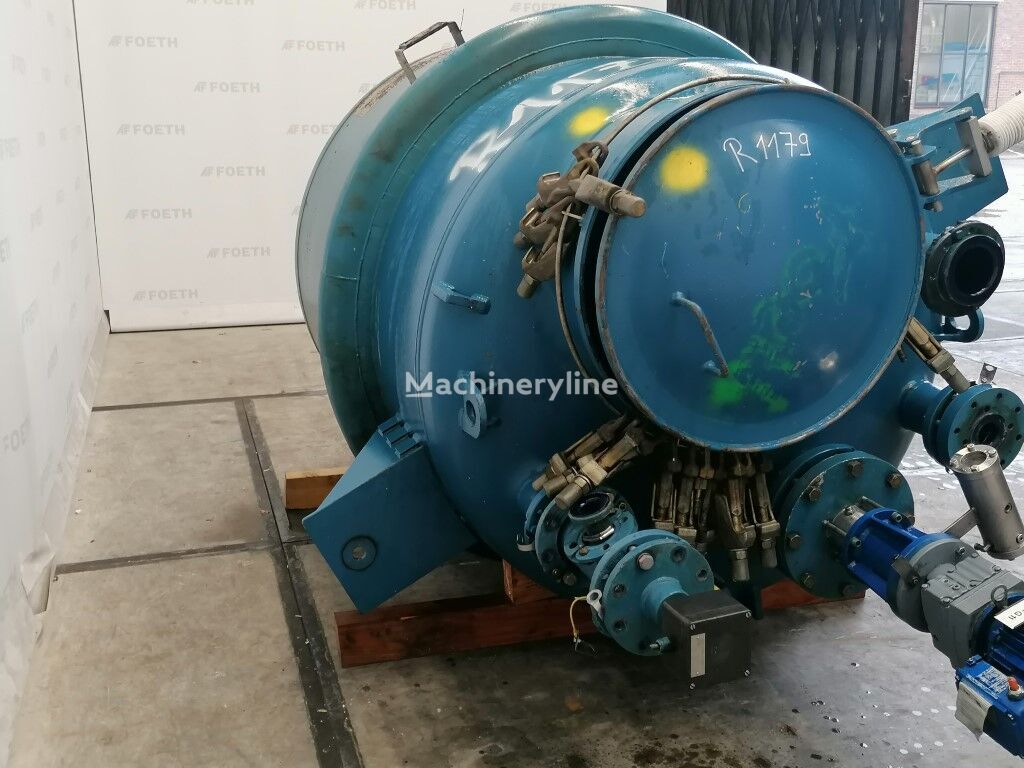

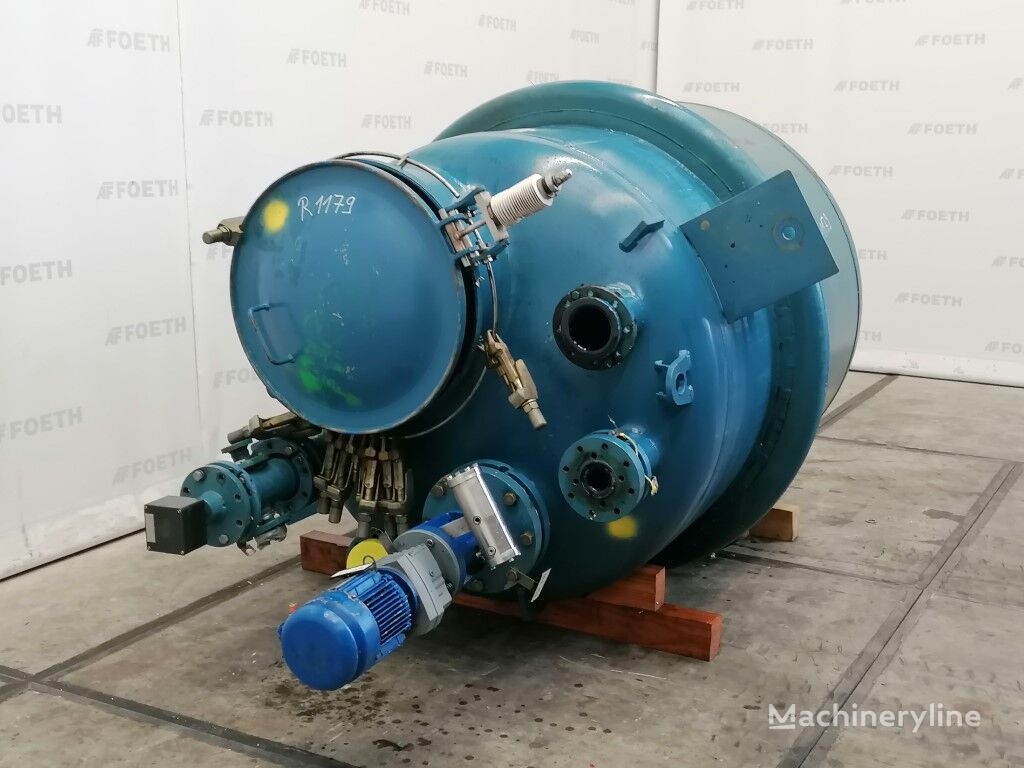

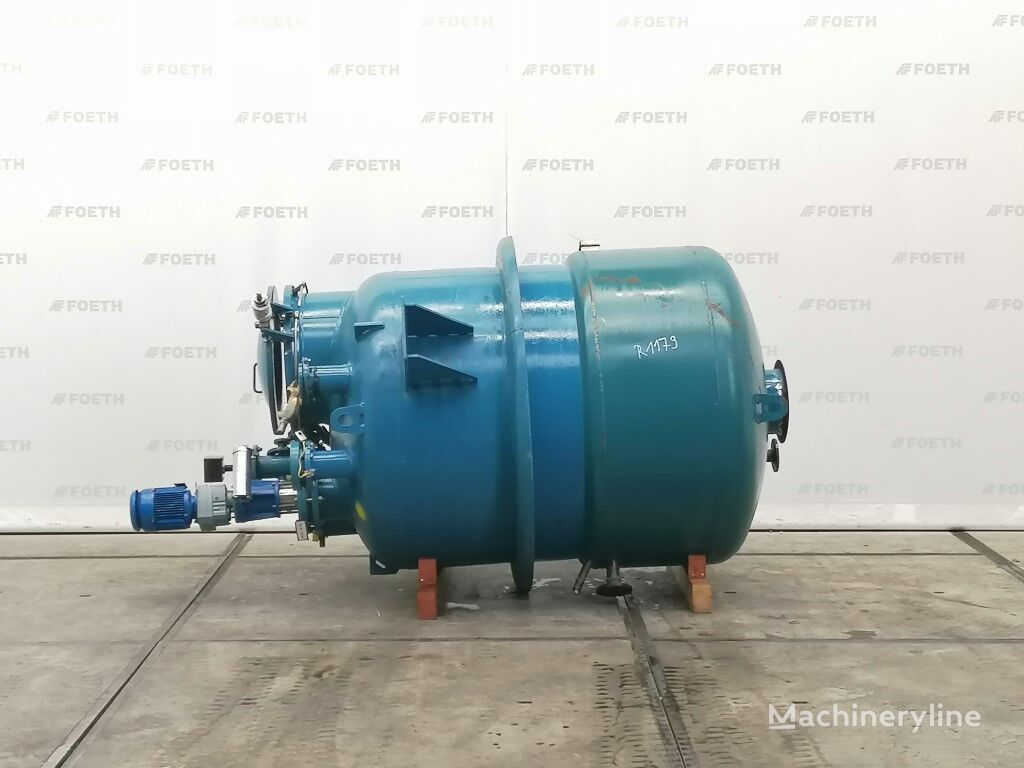

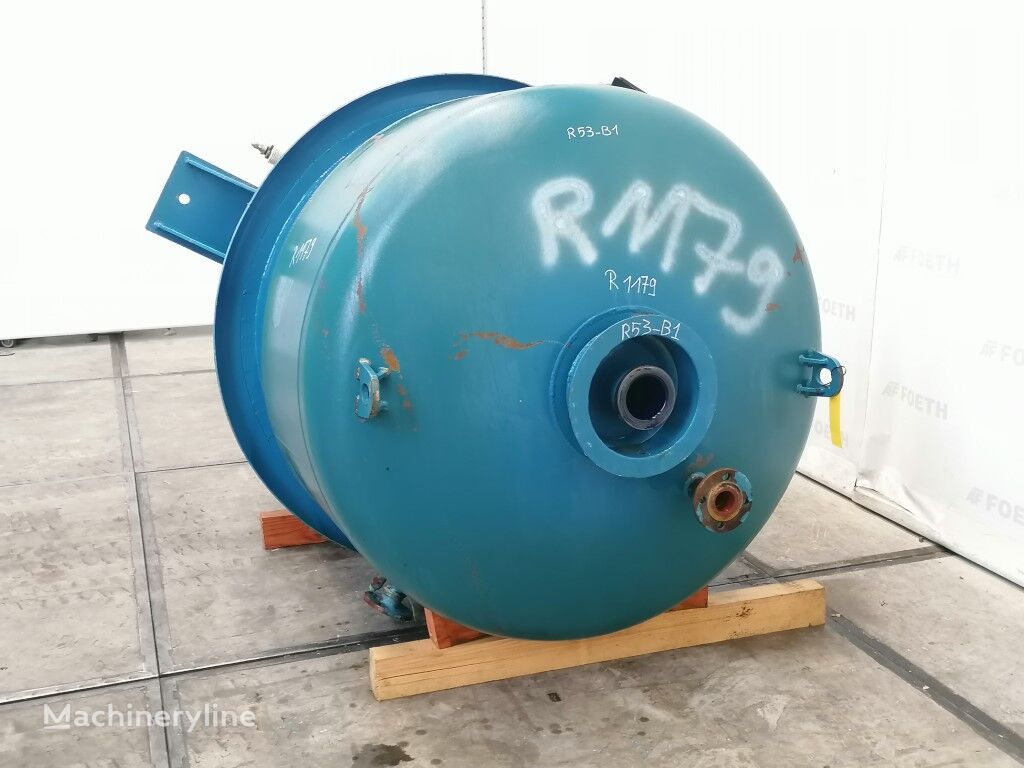

This listing is for a used pressure vessel — sometimes referred to as a pressure tank — manufactured by Estrella Ag of Switzerland. Pressure vessels of this type are used across chemical, pharmaceutical, food, and industrial processing industries for the storage, mixing, or treatment of liquids under controlled pressure or vacuum conditions.
The vessel is a closed vertical tank with a total capacity of 2,660 litres and a net working volume of 2,500 litres. The cylindrical body measures 1,365 mm in diameter and 1,650 mm in height, and is fitted with dished heads at both top and bottom. The construction material is glass, indicating a glass-lined or borosilicate interior suited to corrosive, reactive, or high-purity process fluids.
Working pressure is rated at 3.2 bar, with vacuum operation also possible. The heating or cooling jacket operates at a working pressure of 7 bar, allowing temperature control across a range of 10°C to 200°C. The jacket is integral to the vessel, supporting both heated and chilled processing applications.

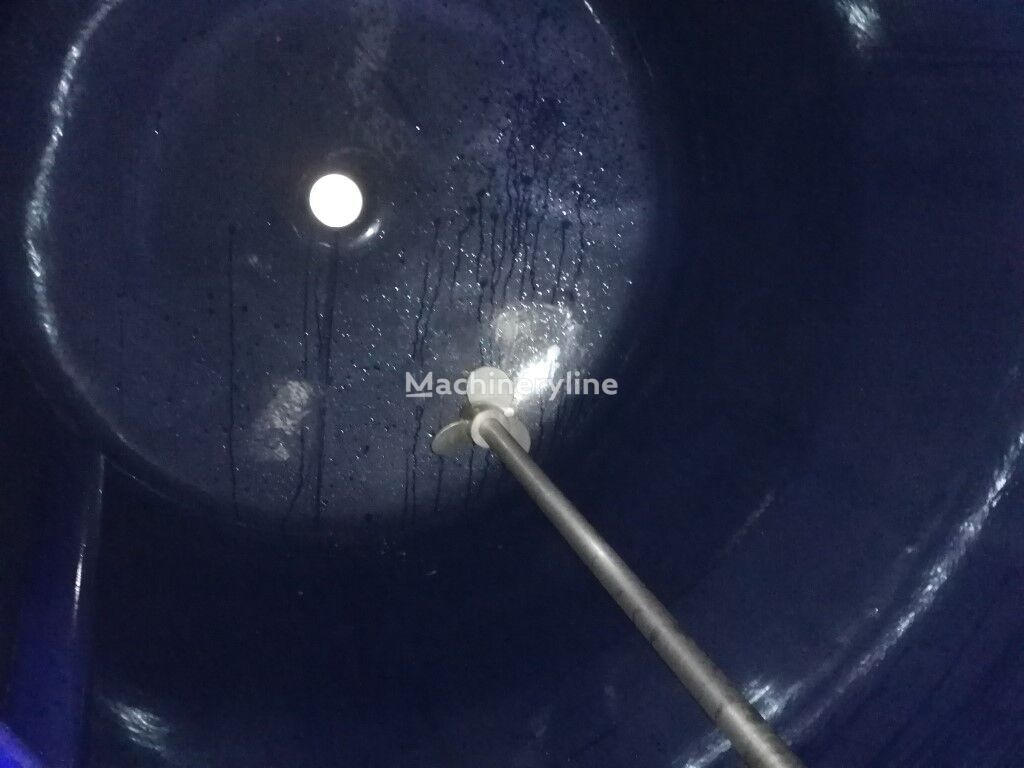

Access is provided via a manhole of 600 mm diameter. The top of the vessel carries four DN100 connections and one DN200 connection, offering flexible process and instrumentation integration. The outlet is DN100. The vessel is equipped with a propeller stirrer driven by a motor, enabling continuous agitation of the contents during processing.
The unit carries serial number 89680, was manufactured in 1992, and is located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
