1985 - Estrella Tank Container()
- Listing No
- 1177256
- Year
- 1985
- Manufacturer
- Estrella
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 84174 Working pressure: 3.2 Bar Vacuum possible: check Number of vertical pressure tanks: 1 Material: Glass - Enamel Volume: 490 Ltr Pressure: 3.2 Bar Vacuum: check Capacity: 490 l., (400 l.) Vessel sizes: Dia. 800x1110 mm Dished top: check Dished bottom: check With cover: check Top connections: 5x DN80, 2x DN150 Outlet: DN80 Max. temperature: 100°C Floorspace: 1,3x1,0 m Total height: 1,3 m General Pressure Main Features Specified Features - Pressure vessel Information
About this machine

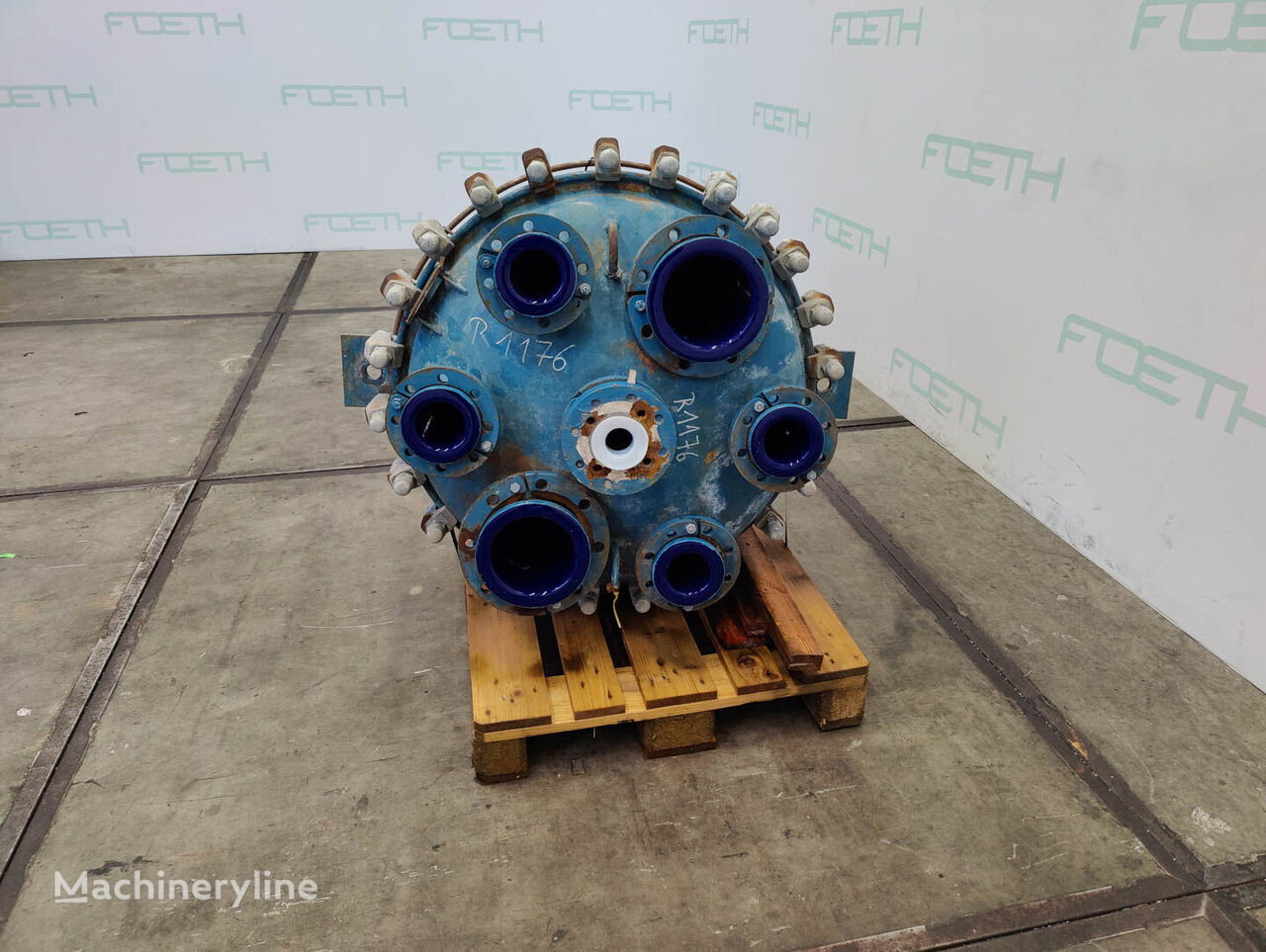

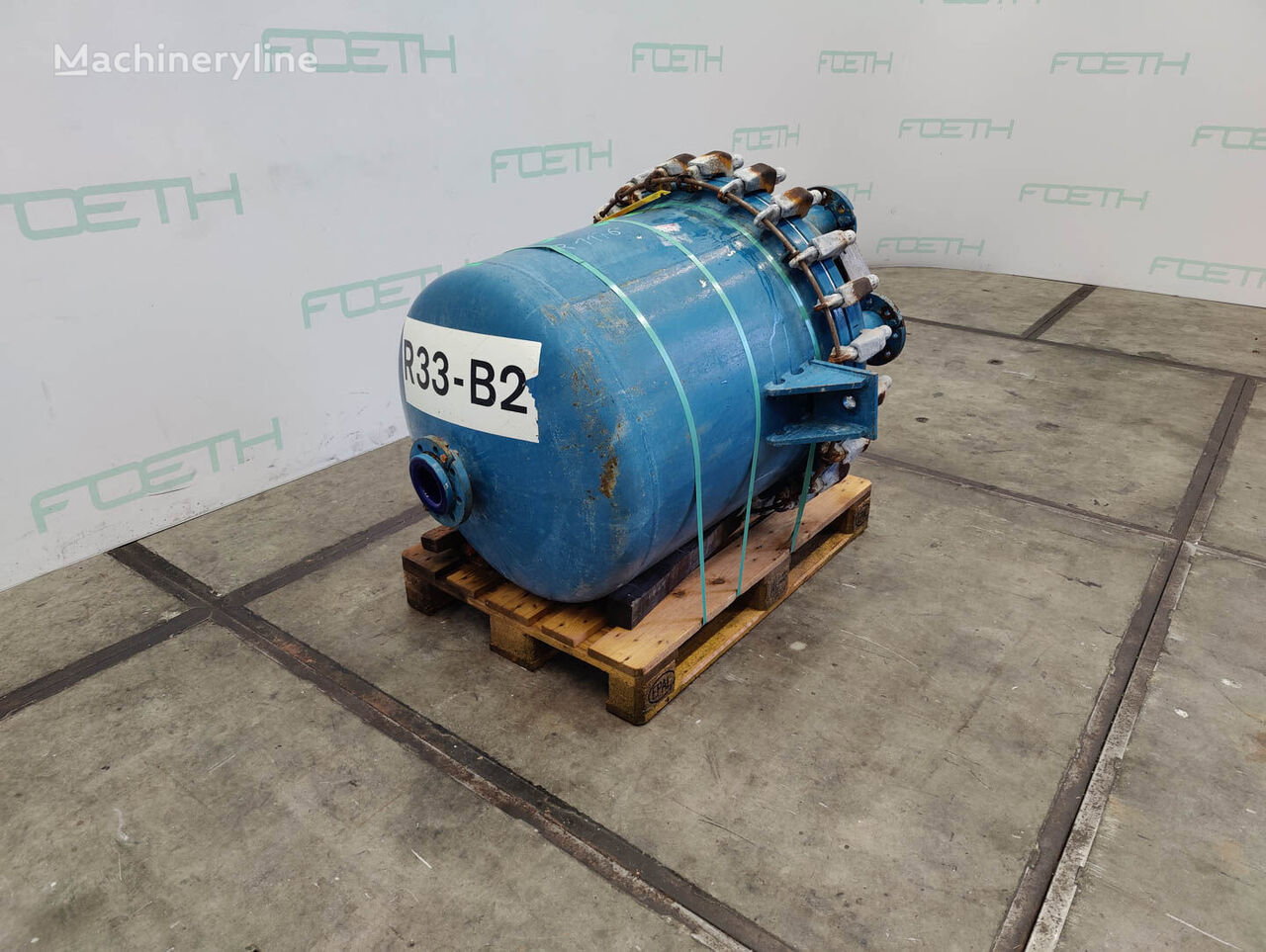

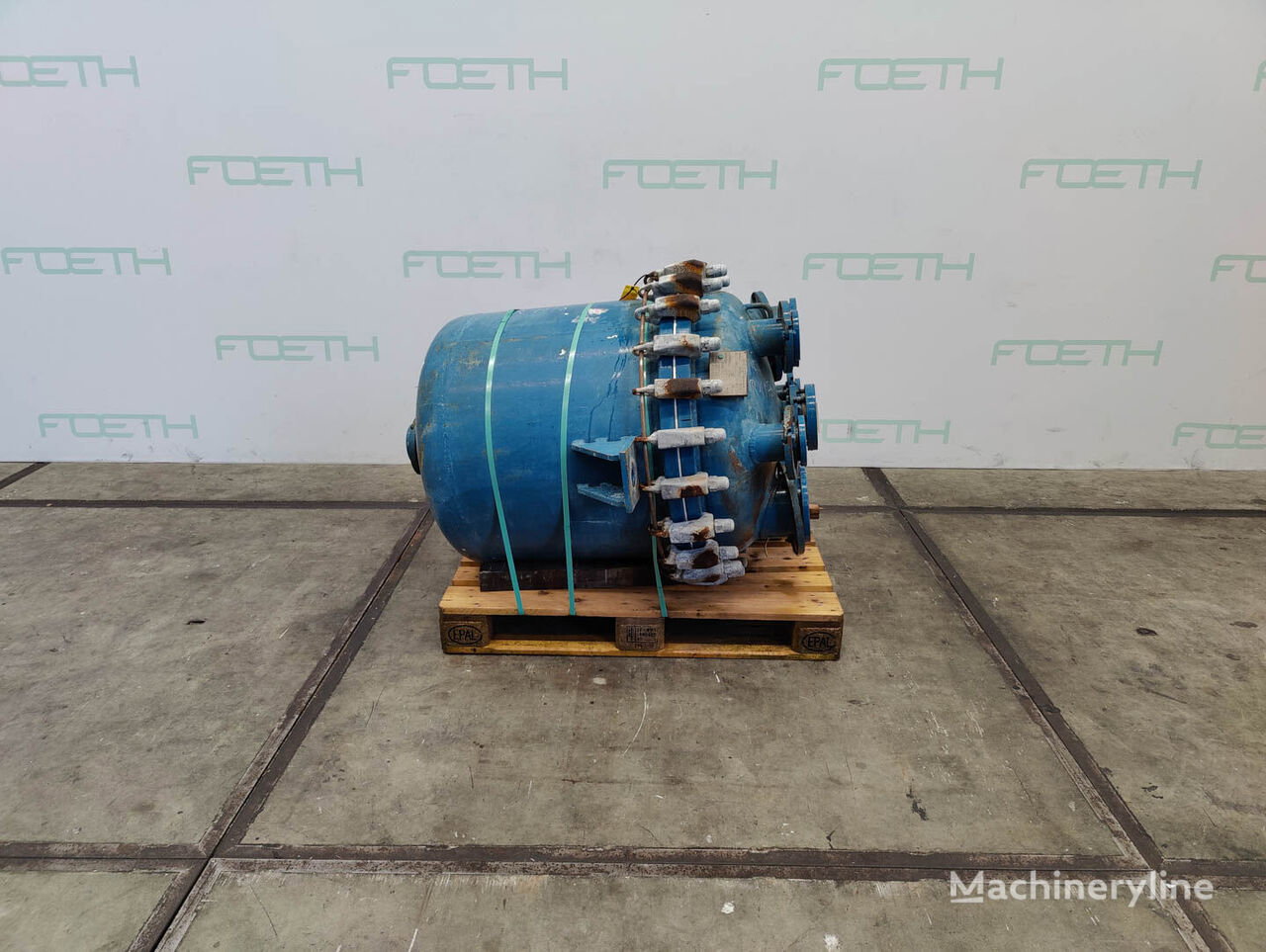

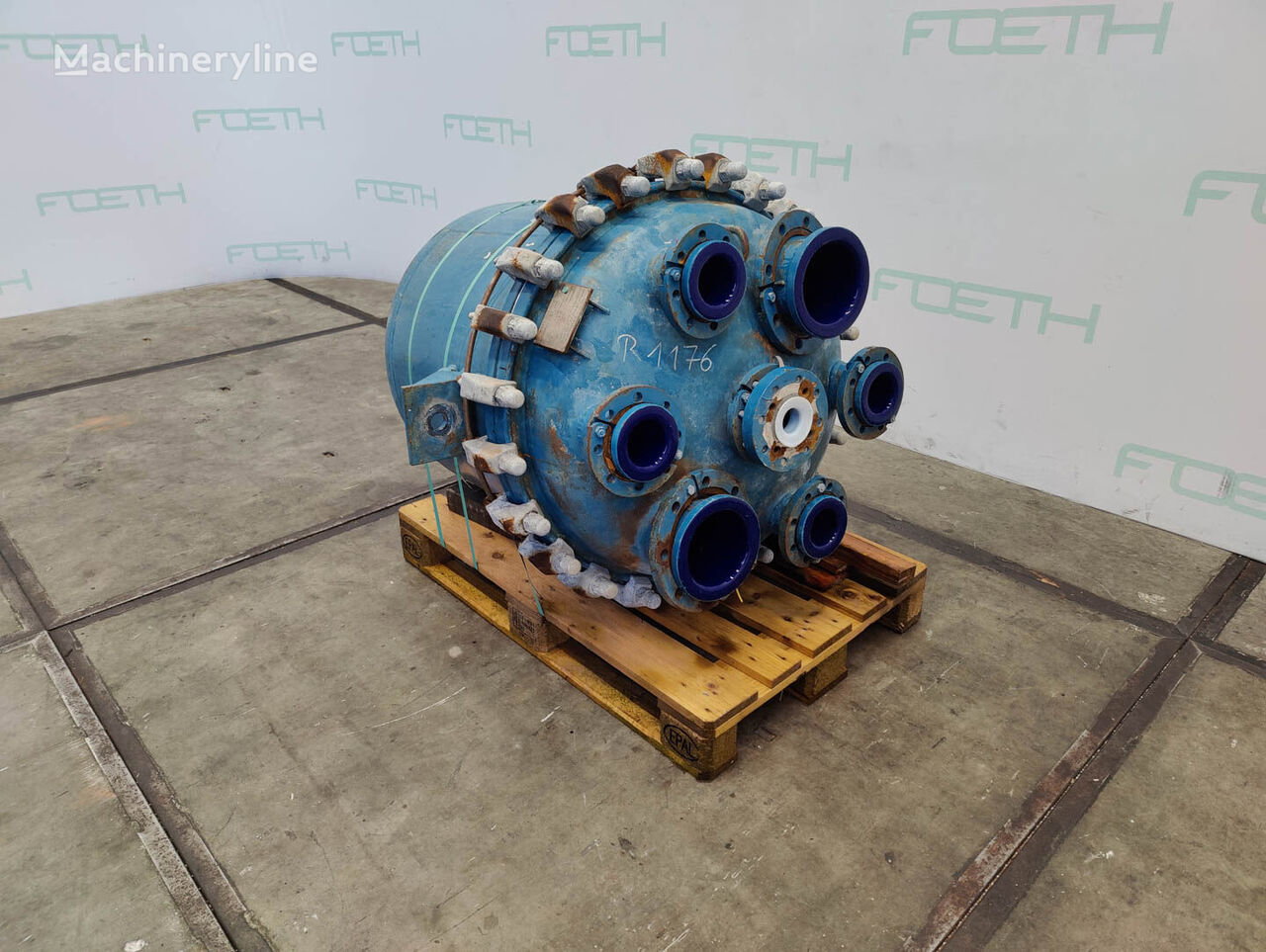

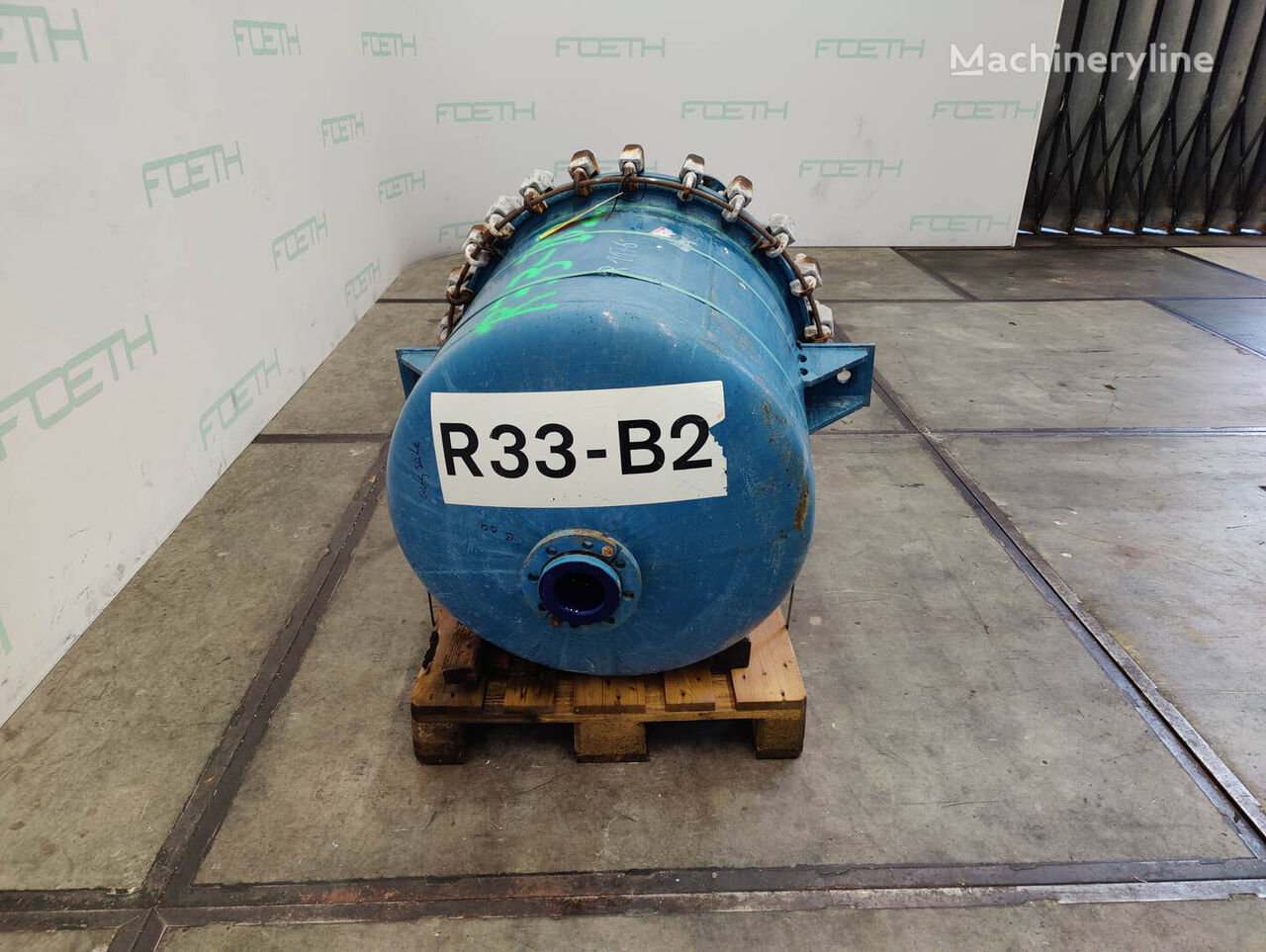

This Estrella Tank Container is a used vertical pressure vessel — sometimes referred to as a pressure tank — designed to hold, store, or process liquids under controlled pressure or vacuum conditions. Such vessels are widely used in food and beverage production, chemical processing, dairy applications, and related industries where hygienic or chemically resistant containment is essential.
This particular unit dates from 1985 and is located in Barneveld, Netherlands. It is constructed from glass-enamelled steel, a material chosen for its corrosion resistance and ease of cleaning, making it well suited to demanding process environments. The vessel has a total volume of 490 litres, with an effective working capacity of 400 litres, and a shell diameter of 800 mm with a straight-side height of 1,110 mm. Both the top and bottom heads are dished, contributing to structural integrity under pressure and allowing complete drainage. A cover is fitted to the top of the vessel.
The tank is rated to a working pressure of 3.2 bar and can also operate under vacuum, making it versatile for a range of process requirements. The maximum permitted operating temperature is 100°C. Connection options are extensive: the top of the vessel carries five DN80 nozzles and two DN150 nozzles, while the outlet is sized at DN80, providing good flexibility for pipework integration.
The unit has a compact footprint of 1.3 × 1.0 metres and a total installed height of 1.3 metres, making it suitable for facilities with limited floor space. The vessel is offered in used condition and is listed under reference number 84174.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
