About this machine

This listing is for a used stainless steel tank container — also referred to as a pressure vessel — manufactured by FIB Industries B.V. of Leeuwarden, a Dutch manufacturer known for producing industrial pressure vessels and storage tanks for the food, chemical, and pharmaceutical processing industries. Dated to 2012 and located in Barneveld, Netherlands, this vessel is designed for the contained storage, processing, or transport of liquids under controlled pressure and temperature conditions, including both pressurised and vacuum applications.

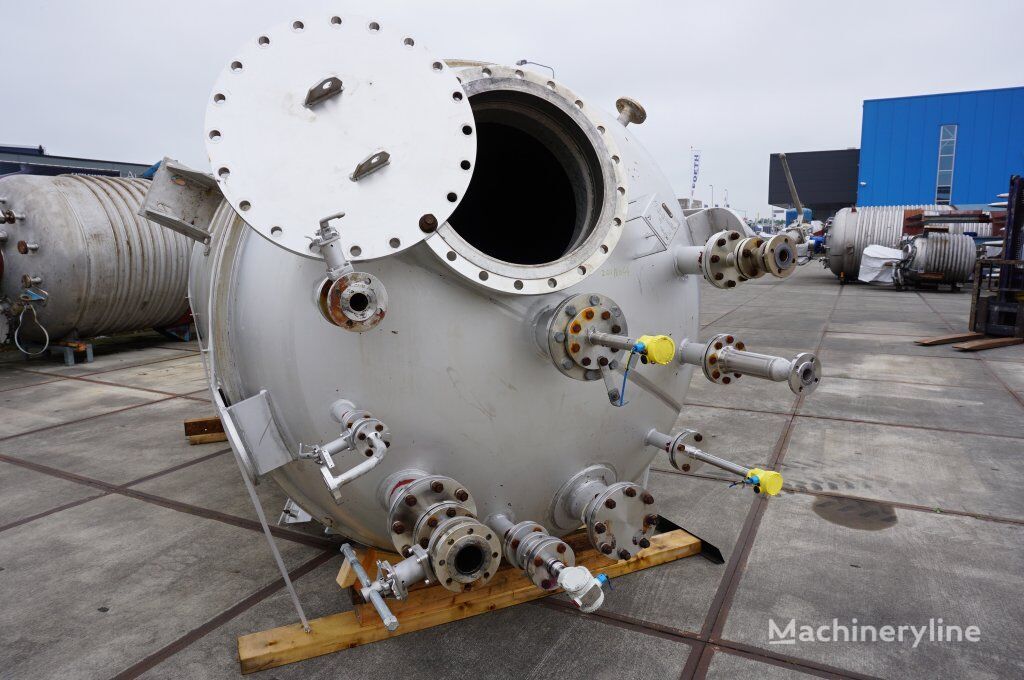

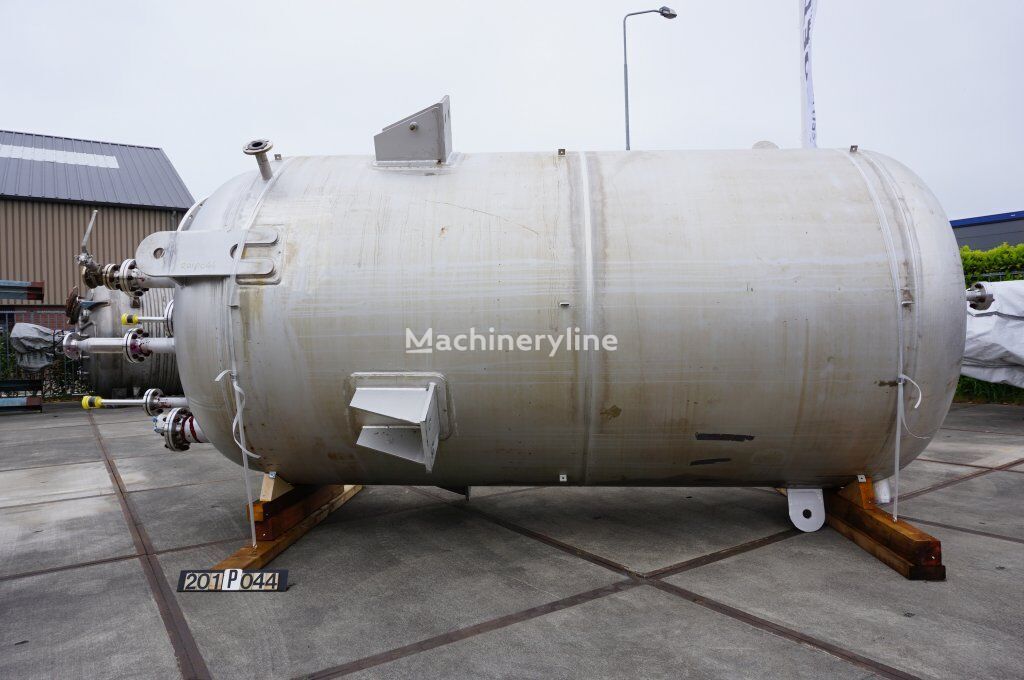

The vessel has a total capacity of 13,500 litres and is constructed from stainless steel grade L), a corrosion-resistant alloy widely specified for hygienic and chemical process environments. The main vessel body is cylindrical, measuring 2,000 mm in diameter by 3,525 mm in length, and is fitted with both a dished top and a dished bottom. A 600 mm diameter manhole provides internal access for inspection and cleaning. The overall installed height is approximately 5.0 metres, with a floor footprint of 2.6 × 2.6 metres.

The working pressure of the main vessel is rated at 3.5 Bar, with a maximum permissible pressure of 6 Bar. The vessel supports vacuum operation in addition to pressure service, and the same dual capability — pressure and vacuum — applies to the jacket. The jacket itself has a working pressure of 6 Bar and encloses a volume of approximately 1,500 litres, allowing for controlled heating or cooling of the vessel contents by circulating a heating or cooling medium through the outer shell. The maximum operating temperature is 280°C.

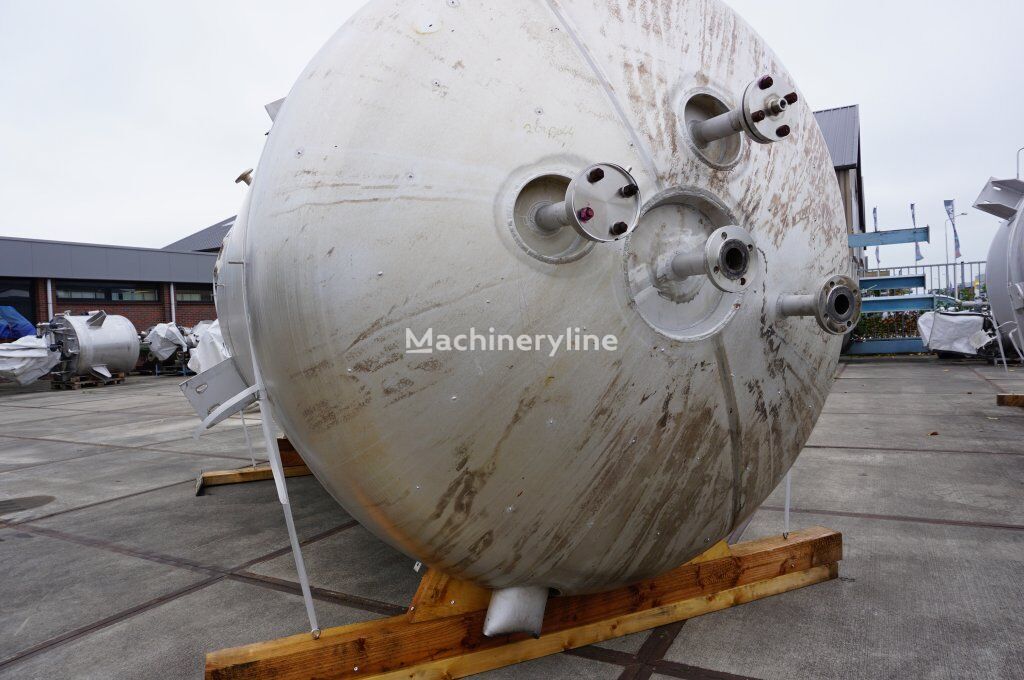

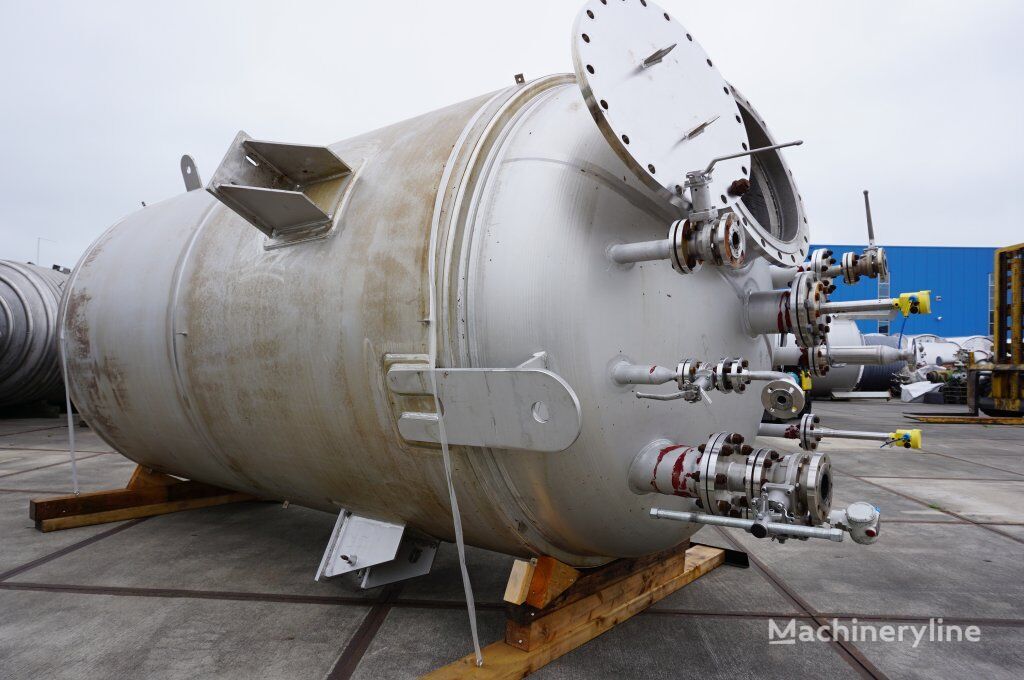

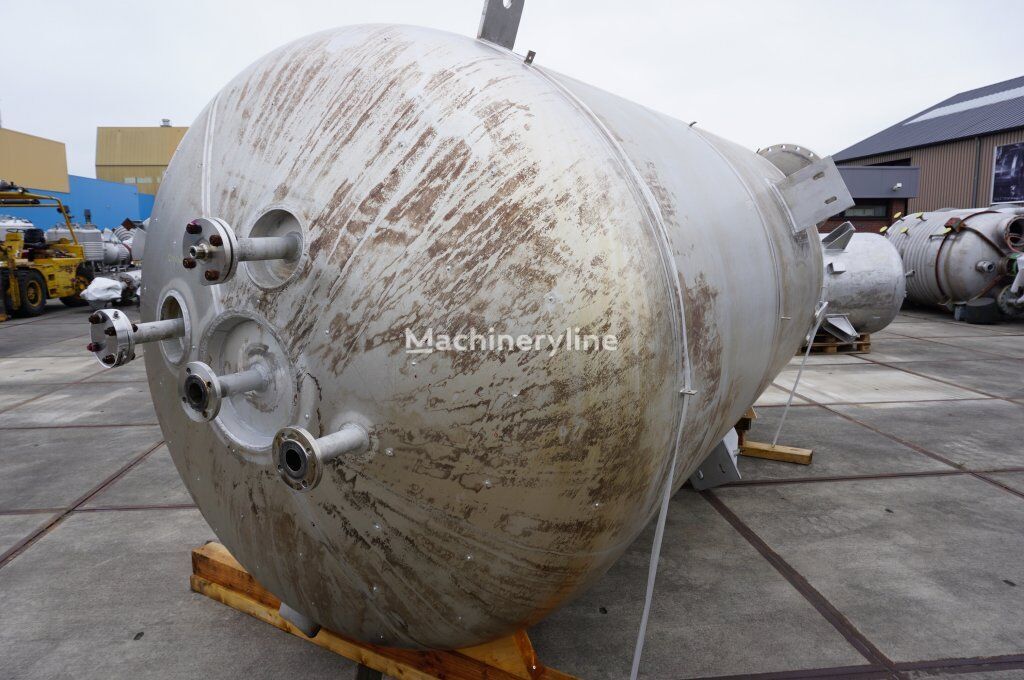

Process connections are extensive. The top of the vessel is fitted with a 150 mm diameter connection, an 80 mm diameter connection, three connections of 50 mm diameter, two connections of 40 mm diameter, and one connection of 20 mm diameter. The product outlet is a 50 mm diameter nozzle. This range of connection sizes accommodates inlet, outlet, instrumentation, and ancillary process pipework in a variety of plant configurations.

The vessel carries internal reference number and is offered in used condition.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
