1998 - FIB Pressure vessel Tank Container()
- Listing No
- 1177830
- Year
- 1998
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: 1410 No: 8019311 Working pressure: 10 Bar Number of horizontal pressure tanks: 1 Material: Stainless steel Volume: 200 Ltr Pressure: 10 Bar Capacity: 200 ltr Vessel sizes: dia. 580x900mm Dished top: check Dished bottom: check Top connections: 5x Outlet: dia 45mm Max. temperature: 100 degr. C Mounted on legs: check Floorspace: 1,5x0,9 M Total height: 2,6 M Extra Specifications: including ITT Jabsco Rotary lobe pump Pureflo 55 series model 55320-15-N200 merk: FIB General Pressure Main Features Specified Features - Pressure vessel Information
About this machine
This FIB Type 1410 is a horizontal pressure vessel — also known as a pressure tank — used for the storage and transfer of liquids under controlled pressure conditions. Such vessels are widely employed in food processing, beverage, dairy, chemical, and pharmaceutical industries wherever hygienic containment and pressurised flow are required.
This single horizontal unit, carrying serial number 8019311, is constructed entirely from stainless steel and holds a volume of 200 litres. The vessel body measures 580 mm in diameter by 900 mm in length and is fitted with dished ends at both top and bottom, providing structural integrity at operating pressure. The working pressure is rated at 10 bar, with a maximum operating temperature of 100 °C.

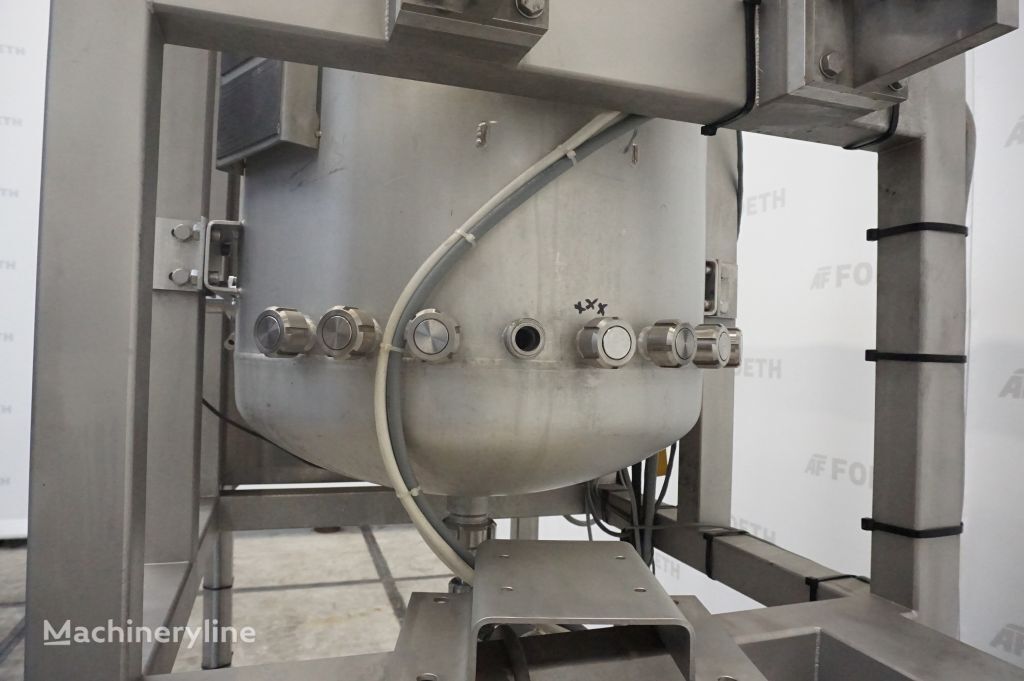

Connectivity is well provisioned, with five top connections and an outlet of 45 mm diameter. The vessel is mounted on legs, giving it a stable, floor-standing installation. The overall footprint is 1.5 × 0.9 metres, and the total installed height, including legs, is 2.6 metres.
Notably, this unit is supplied complete with an ITT Jabsco Pureflo 55 Series rotary lobe pump, model -N200. ITT Jabsco is a well-established manufacturer of positive displacement pumps, and the Pureflo range is specifically designed for hygienic and sanitary pumping applications, making this a practical, ready-to-use package for food-grade or similar process environments.
The vessel dates from 1998, is offered in used condition, and is currently located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
