About this machine

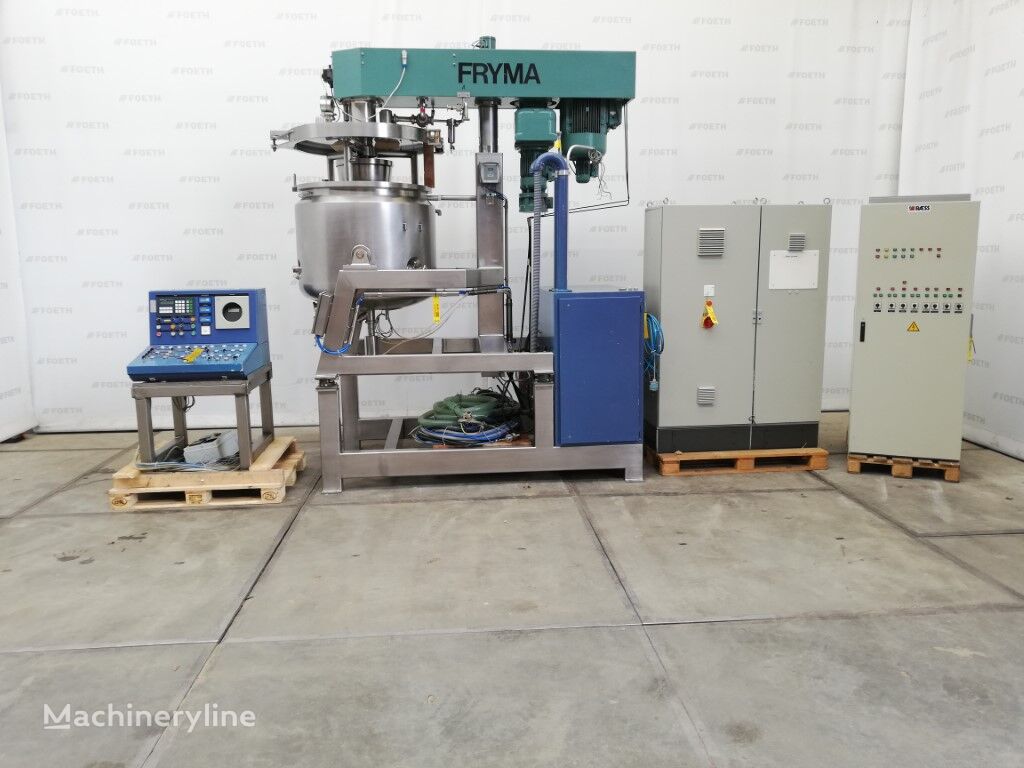

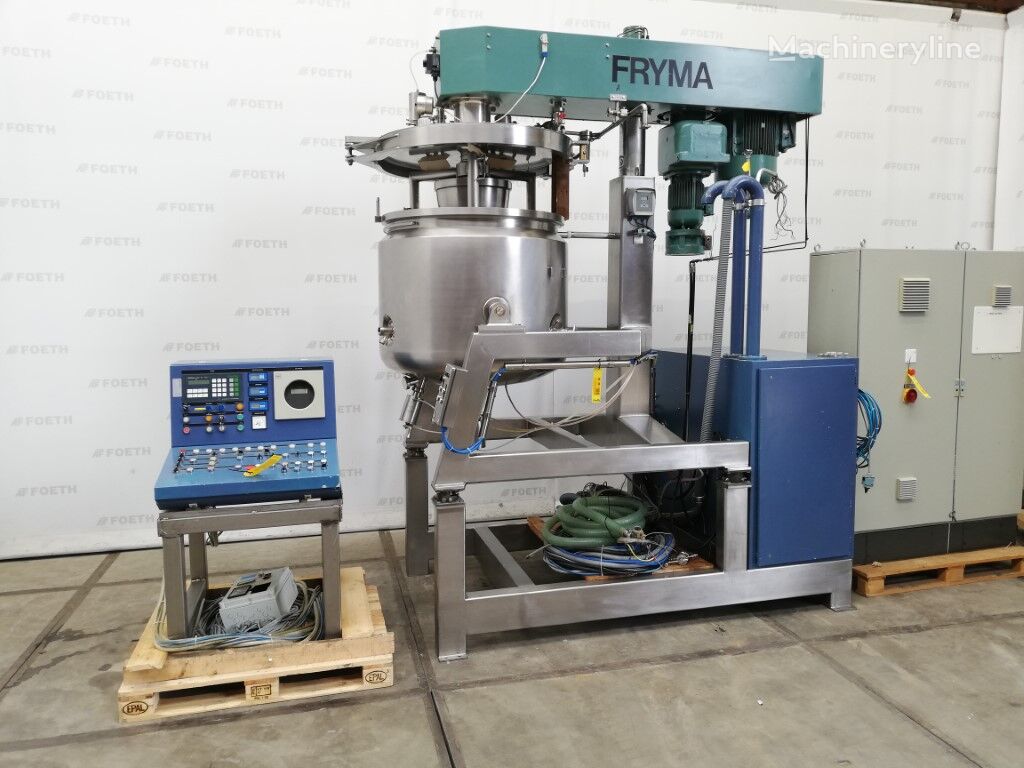

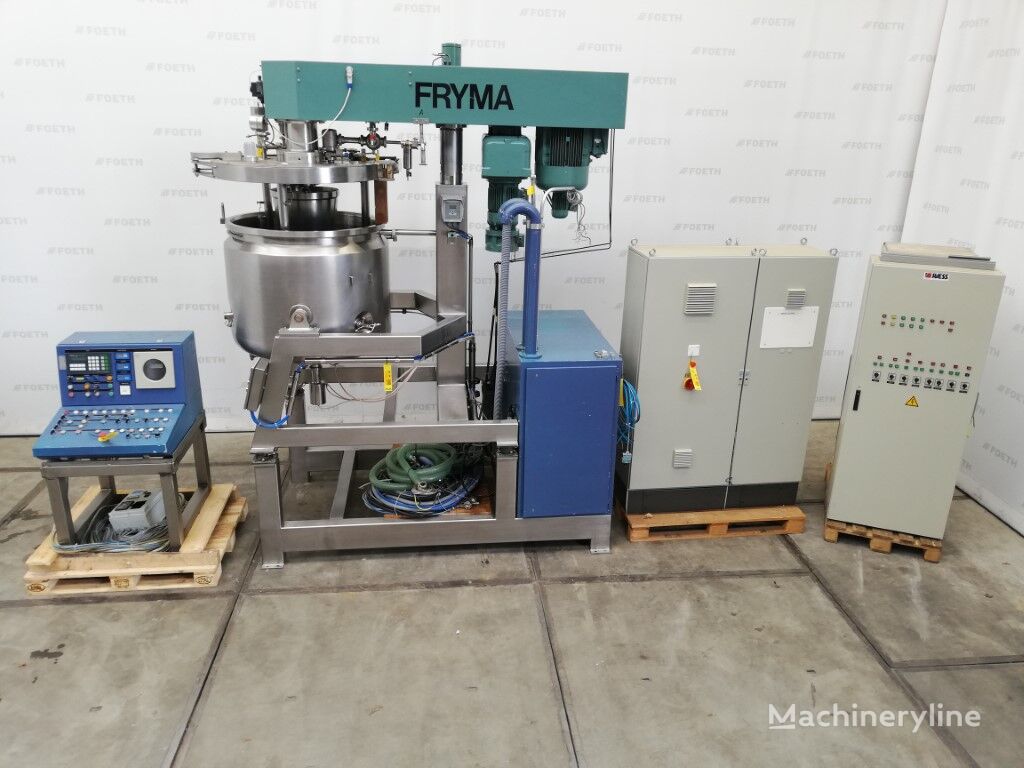

This Fryma VME-400 is a tank and container — a closed, pressurised processing vessel designed for mixing, homogenising, and handling viscous or sensitive products under controlled temperature and pressure conditions. Fryma is a well-established Swiss manufacturer of processing equipment, known for its vacuum mixers, homogenisers, and containment systems used across the pharmaceutical, cosmetics, and food industries.

This particular unit, serial numbers F 93368 / M 15102, is configured as a VME-400 / C and is located in Barneveld, Netherlands. It was built in 1992, is offered in used condition, and carries CE certification.

The vessel has a gross volume of 400 litres and can be operated across a working capacity range of 60 to 400 litres, giving considerable flexibility for varying batch sizes. The cylindrical vessel measures 1,120 mm in diameter by 950 mm in height, with a total installation height of 4.3 metres and a floor footprint of 2.9 by 1.5 metres. Construction materials span three grades of stainless steel — ), ), and L) — reflecting the hygienic and corrosion-resistance demands typical of pharmaceutical and food-grade applications.

The vessel operates at a working pressure of 2.5 bar, with the heating or cooling jacket rated to 3 bar. The jacket itself has a volume of 49 litres, and the system supports a maximum process temperature of 150 °C. Vacuum operation is also possible, making the unit suitable for processes that require degassing or oxygen-free environments.

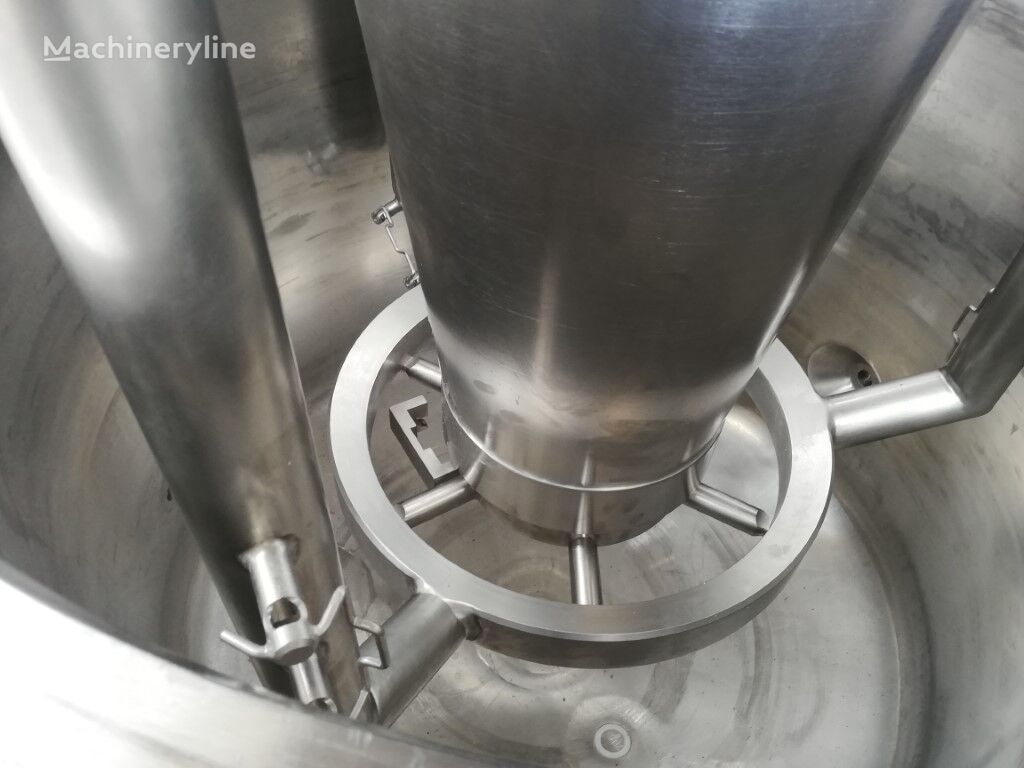

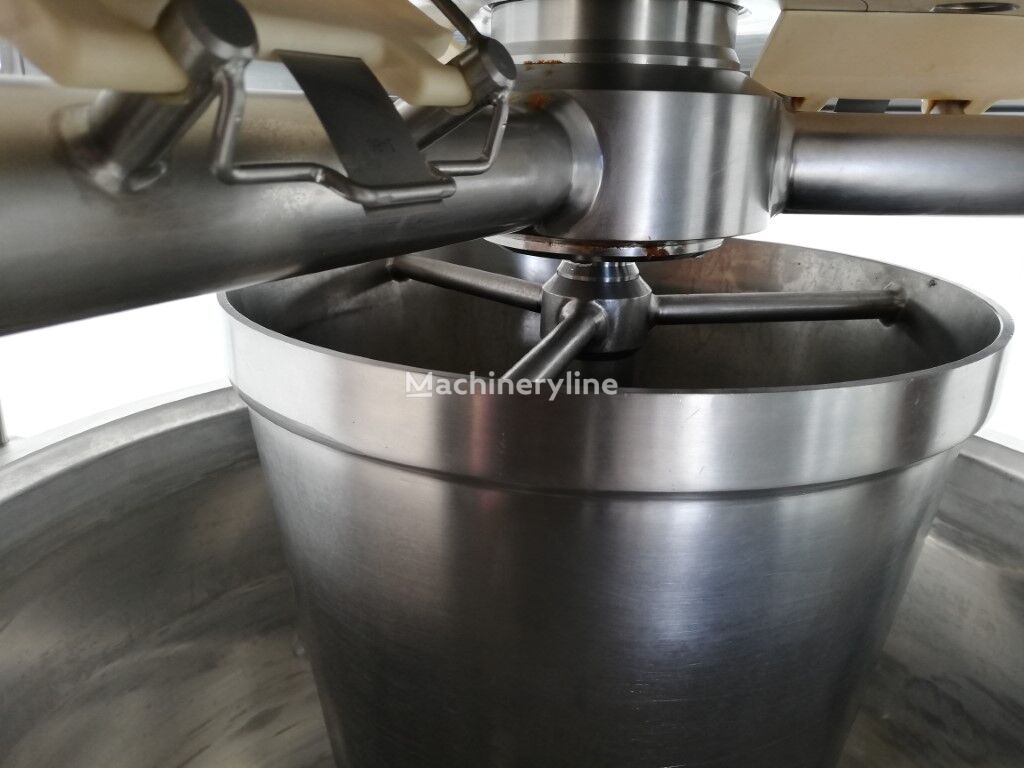

The mixing shaft is driven by a 20 kW motor running at 968 rpm, with the shaft itself turning at selectable speeds of 13 or 26 rpm. The vessel is a closed stirring vessel with a dished bottom, a cover, an anchor stirrer, and an integrated homogeniser. Product outlets are provided at DN25 and DN40.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
