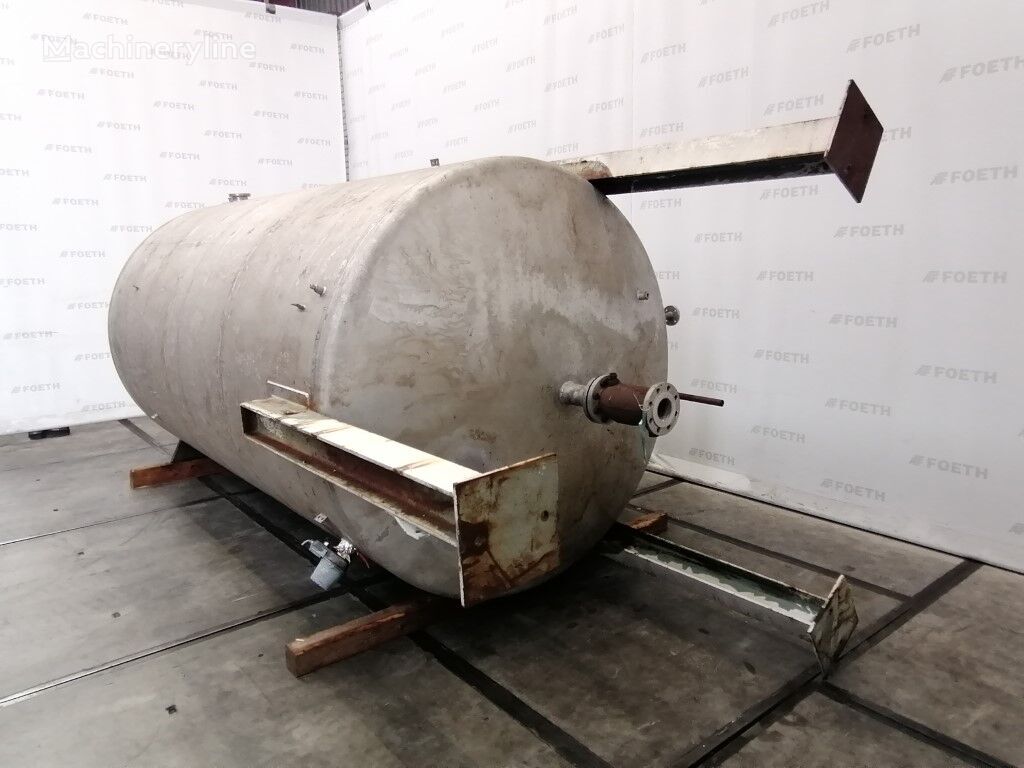

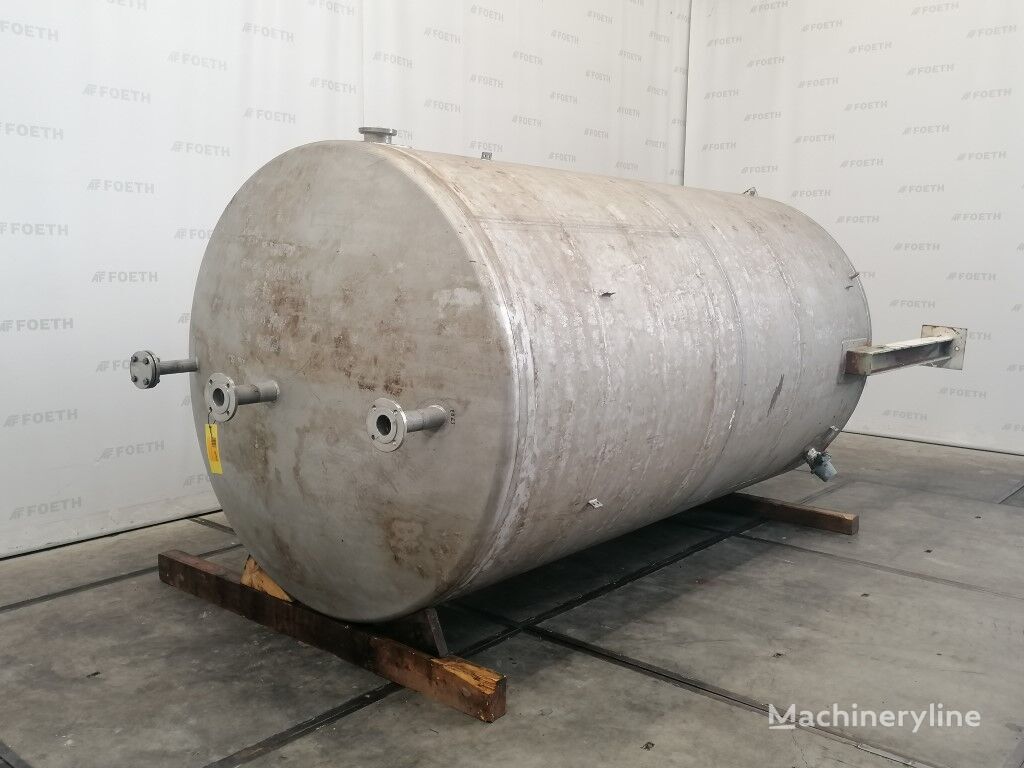

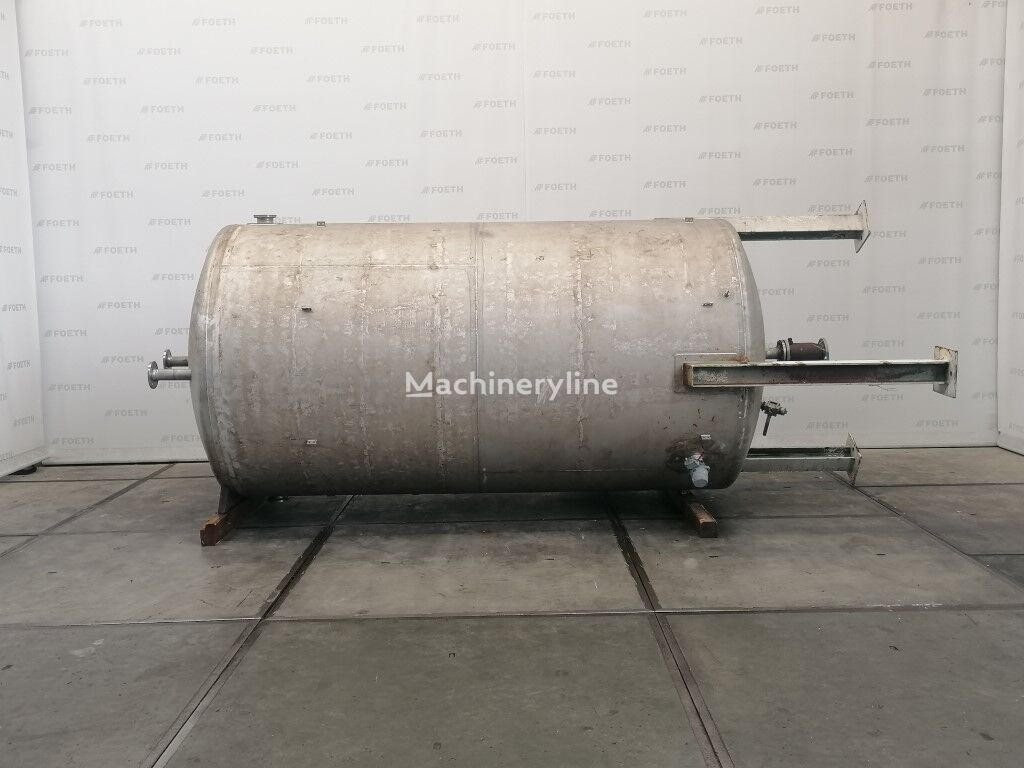

1990 - GmbH (D) 10000 ltr – Vertical tank Tank Container()
- Listing No
- 1177758
- Year
- 1990
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: 10000 ltr No: 14956 Working pressure jacket: 6 Bar Material: Stainless steel 1.4301 (304) Volume: 10000 Ltr Closed vertical tank: check Capacity: 10000 ltr Vessel sizes: dia. 2000x3500mm Dished top: check Dished bottom: check Manhole: in side wall, dia. 600mm Top connections: DN65 (2x), DN50 (1x) Outlet: dia. 80mm Max. temperature: 90 degr. C Internal heating spiral: (3 ltr.) Mounted on legs: check Floorspace: 2,5x2,5 M Total height: 5,4 M merk: Schallex Apparatebau GmbH (D) General Pressure Main Features Specified Features - Vertical tank Information
About this machine
This listing is for a used vertical tank — sometimes referred to as a storage vessel or process tank — manufactured by Schallex Apparatebau GmbH, a German manufacturer of industrial process equipment. Vertical tanks of this type are widely used in food and beverage processing, chemical production, dairy operations, and related industries for the storage, heating, or holding of liquids under controlled conditions.
The tank has a total capacity of 10,000 litres and is constructed from stainless steel grade 1.4301 (AISI 304), making it suitable for hygienic and corrosion-sensitive applications. The vessel is closed and mounted vertically on support legs, with a floor footprint of 2.5 × 2.5 metres and a total installed height of 5.4 metres. The cylindrical body measures 2,000 mm in diameter by 3,500 mm in height, and is fitted with both a dished top and a dished bottom, a configuration that supports effective drainage and pressure distribution.

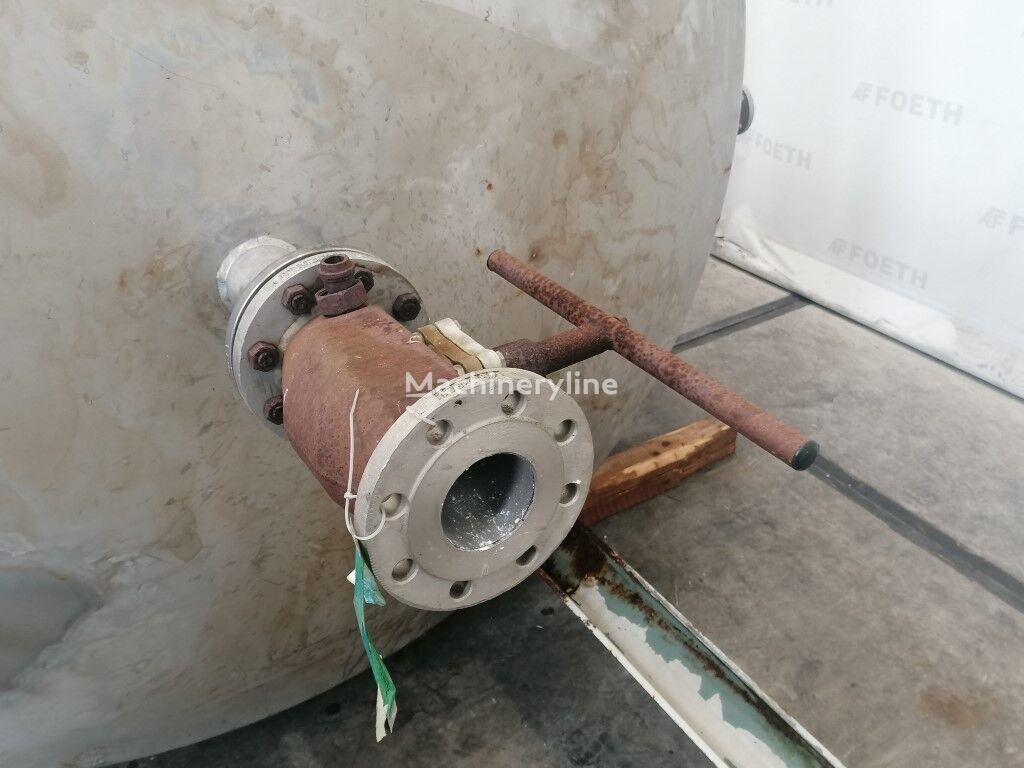

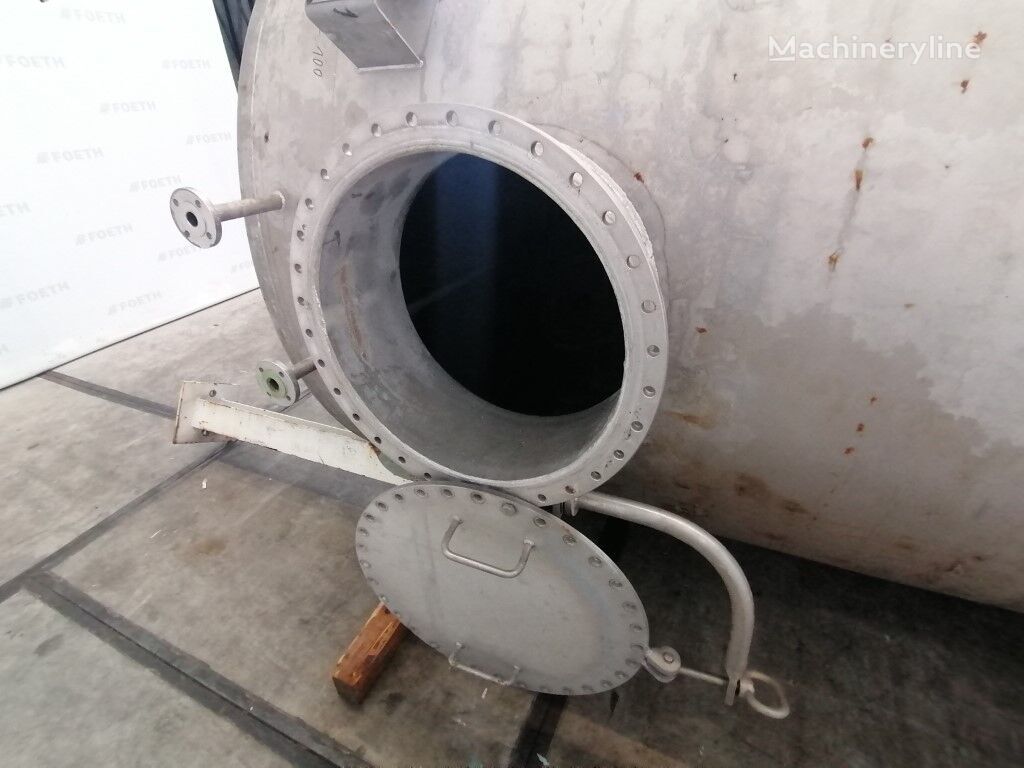

The tank is equipped with an external heating jacket rated to a working pressure of 6 bar, and an internal heating spiral with a volume of 3 litres, providing two independent options for temperature management. The maximum permissible operating temperature is 90 °C. Access to the interior is provided via a side-wall manhole with a diameter of 600 mm. Pipework connections at the top of the vessel include two DN65 ports and one DN50 port, while the bottom outlet has a diameter of 80 mm.
The tank carries internal reference number 14956 and is located in Barneveld, Netherlands. It dates from 1990 and is offered in used condition.
