1998 - Haagen & Rinau 300 Ltr Tank Container()
- Listing No
- 1180049
- Year
- 1998
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 301015/4 Material finish: Polished inside Working pressure: 3 Bar Vacuum possible: check Number of vertical pressure tanks: 1 Material: Stainless steel 1.4435 (316L) Volume: 300 Ltr Pressure: 3 Bar Vacuum: check Notified body: TÜV Capacity: 300 Ltr. ( bruto 380 ltr) Vessel sizes: Dia. 740x997 mm Dished top: check Dished bottom: check With cover: check Manhole: check DN400 Top connections: check Outlet: DN40 Max. temperature: 143°C Mounted on consoles: On wheels Floorspace: 0,95x1,15 m Total height: 2,0 m Extra Specifications: with spray ball. inspection window in mannhole merk: Haagen & Rinau General Specified Features - Pressure vessel Pressure Main Features Pressure vessels Information
About this machine

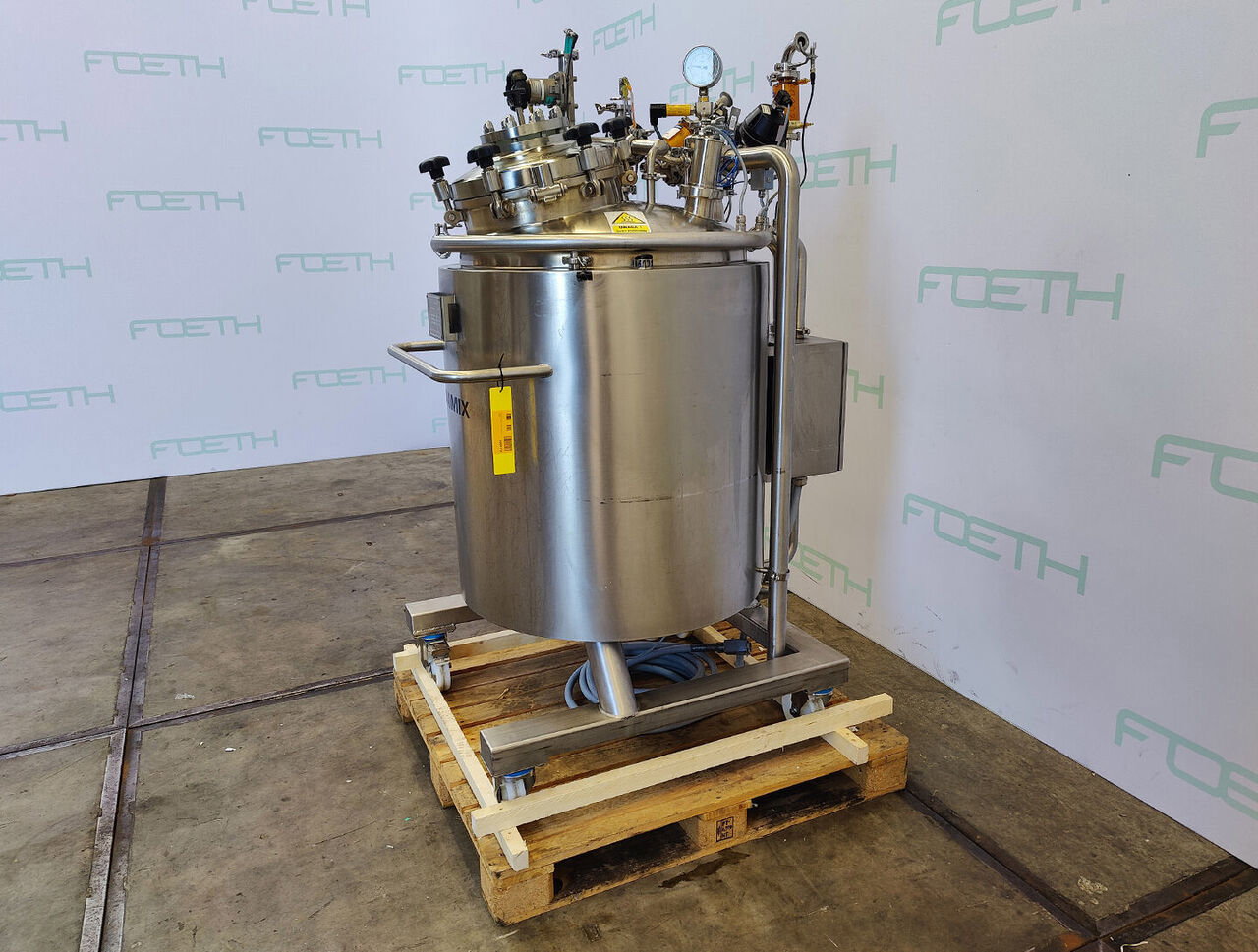

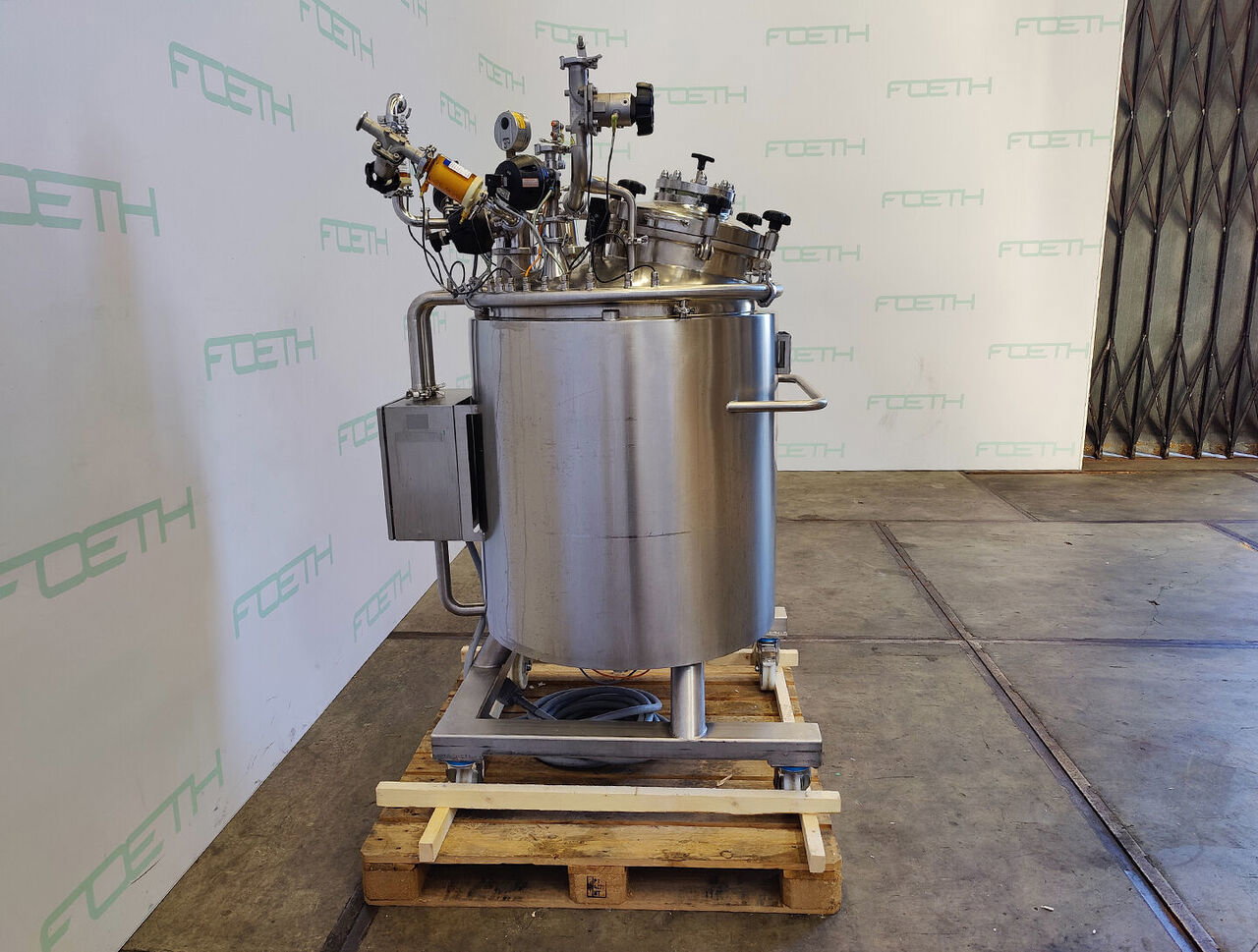

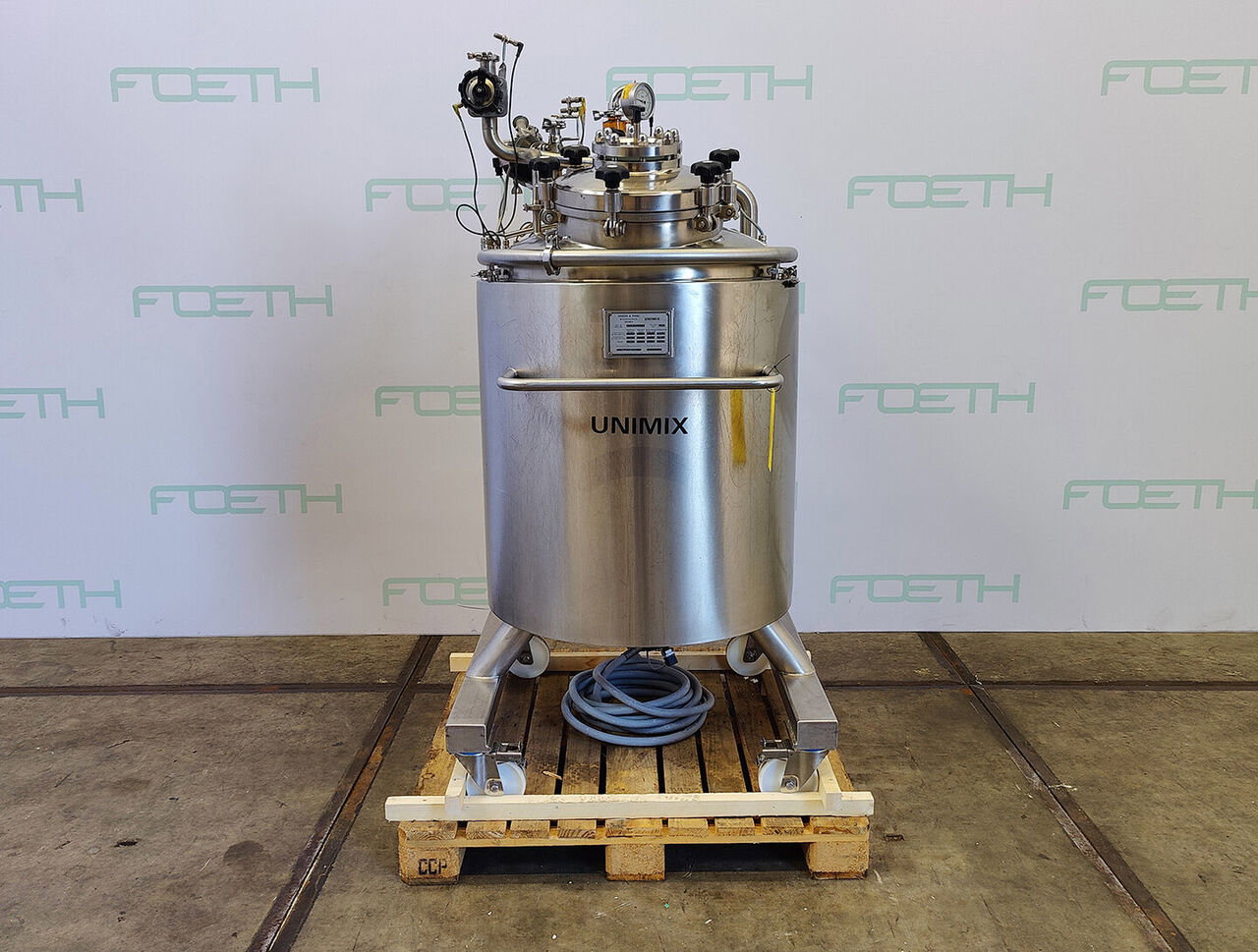

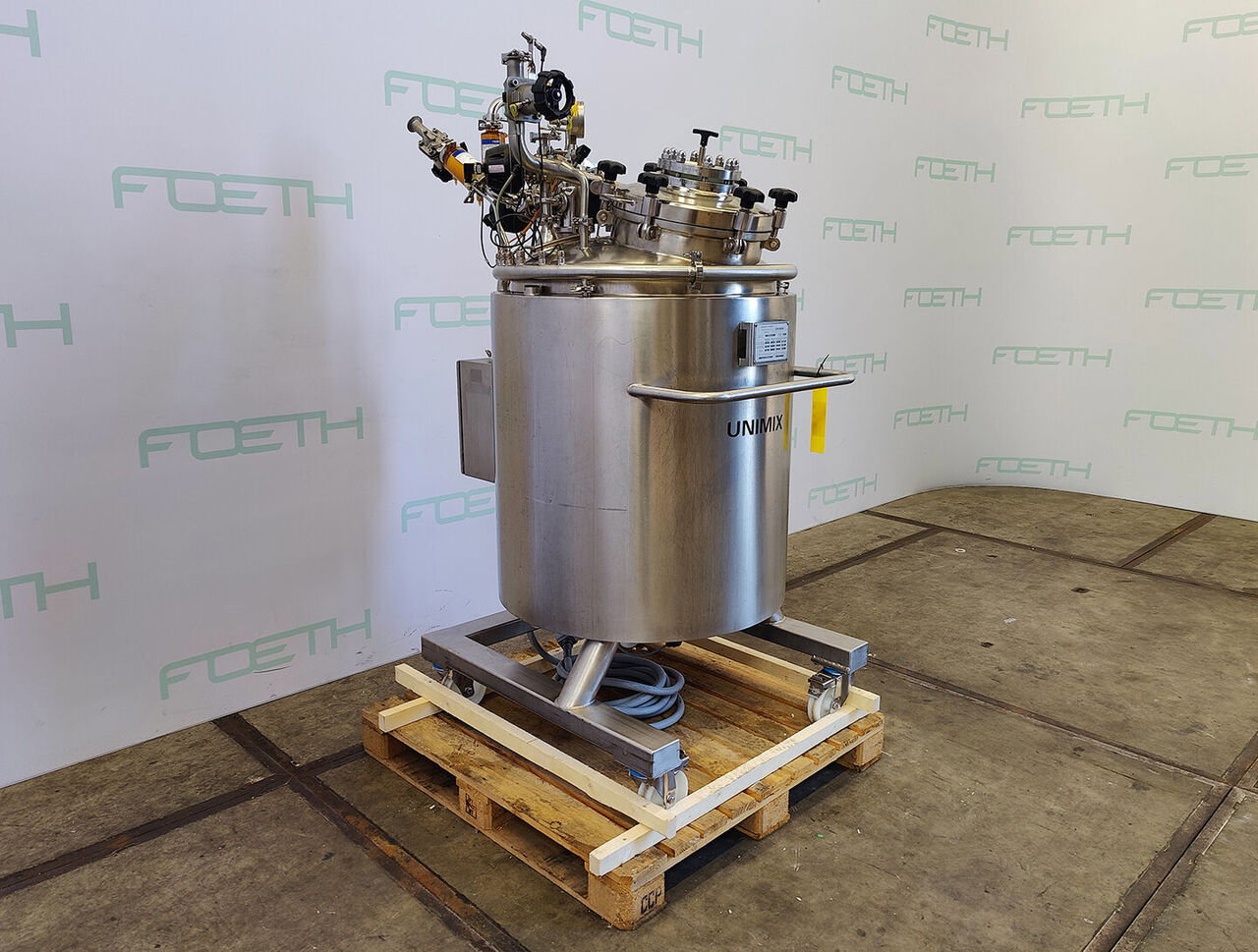

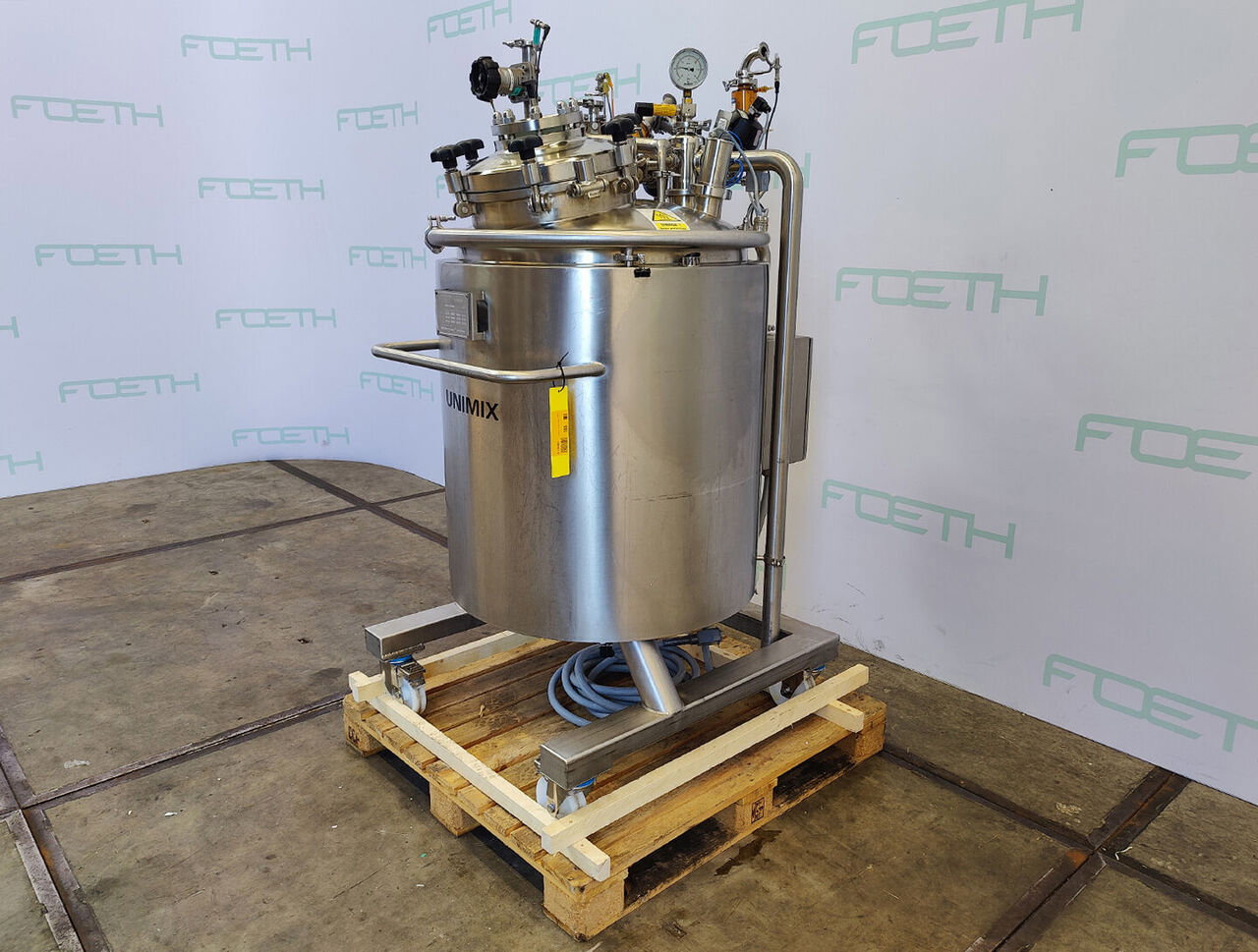

This Haagen & Rinau 300 Ltr Tank Container is a used pressure vessel — sometimes referred to as a pressure tank or pressure container — designed for the storage and processing of liquid or fluid products under controlled pressure and temperature conditions. Haagen & Rinau is a recognised Dutch manufacturer of stainless steel process equipment, producing vessels, tanks, and related process machinery for the food, dairy, pharmaceutical, and chemical industries.
The vessel is constructed from stainless steel grade L), with a polished internal finish, making it well suited to hygienic or product-contact applications. It holds a net volume of 300 litres, with a gross capacity of 380 litres. The cylindrical body measures 740 mm in diameter and 997 mm in height, with a dished top and a dished bottom. The vessel is rated to a working pressure of 3 bar and supports vacuum operation. Its maximum permitted temperature is 143°C. The unit has been certified by TÜV as the notified body, confirming it meets the relevant pressure equipment requirements.
Access to the interior is provided by a DN400 manhole, which incorporates an inspection window. The vessel is also equipped with a spray ball, facilitating internal cleaning-in-place (CIP) procedures. Top connections are present, and the outlet is sized at DN40. The vessel is fitted with a cover.
The unit is mounted on wheels via console supports, allowing it to be repositioned on the factory floor without additional handling equipment. Its footprint measures 0.95 by 1.15 metres, and the total height is 2.0 metres. The vessel is located in Barneveld, Netherlands, and is offered as a single used unit under internal reference number 301015/4.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
