2002 - Hinke Tankbau GmbH Tank Container()
- Listing No
- 1177440
- Year
- 2002
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 8493 Working pressure: 1 Bar Vacuum possible: check Number of vertical pressure tanks: 1 Material: Stainless steel 1.4571 (316Ti) Volume: 340 Ltr Pressure: 1 Bar Vacuum: check Notified body: (TUV) Capacity: 340 Ltr Vessel sizes: dia. 700x1000 mm Dished top: check Dished bottom: check Top connections: DN 100, DN25 (2x) Outlet: DN80, DN50, DN25 Max. temperature: 120 °C With paddle stirrer: check Motor: 0,75 kW 230/400 Volt Speed mixing shaft: 750 rpm Mounted on legs: check Floorspace: 0,9x0,9 m CE: check Total height: 2,3 m merk: Hinke Tankbau GmbH General Pressure Main Features Specified Features - Pressure vessel Information
About this machine

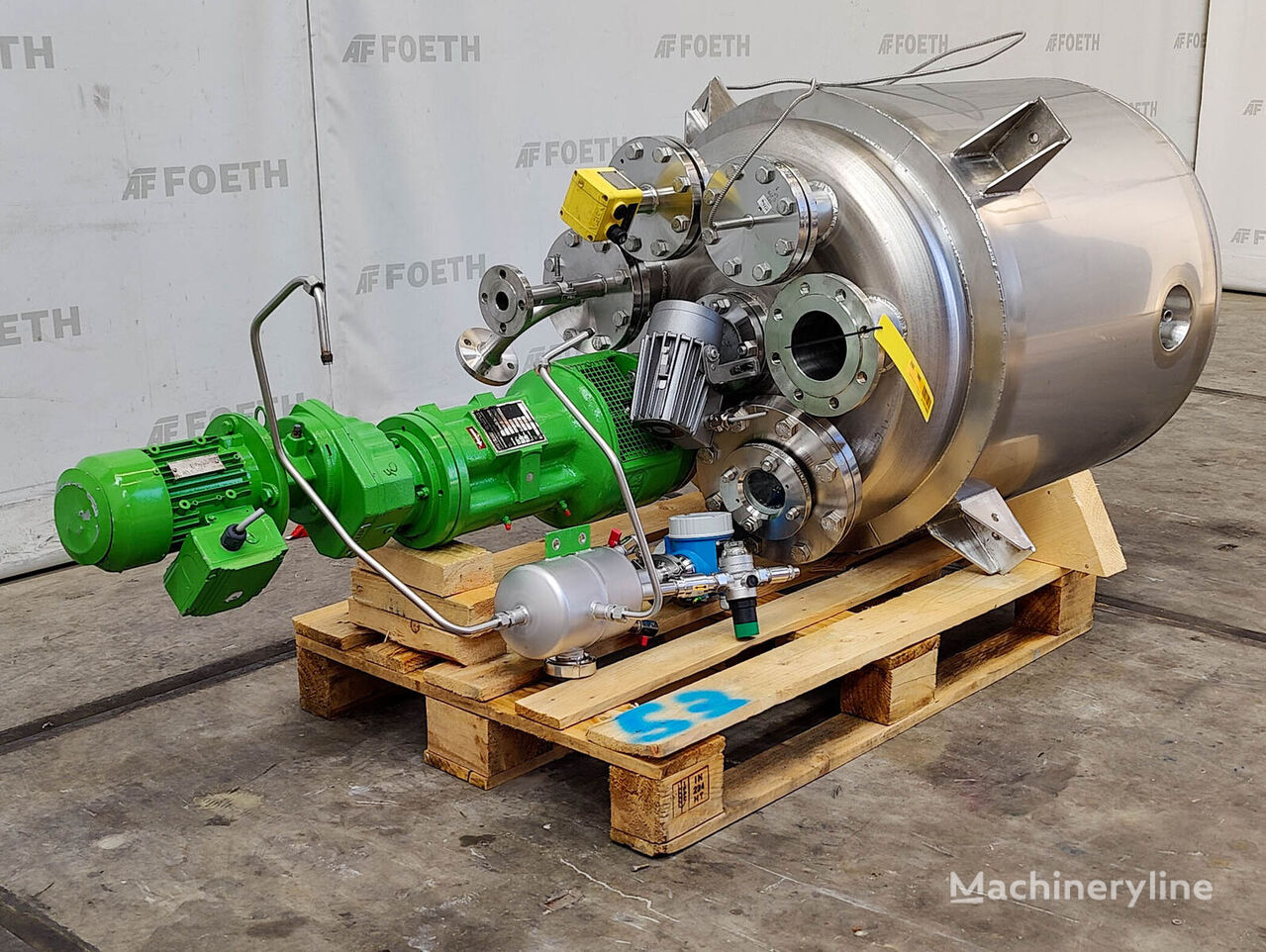

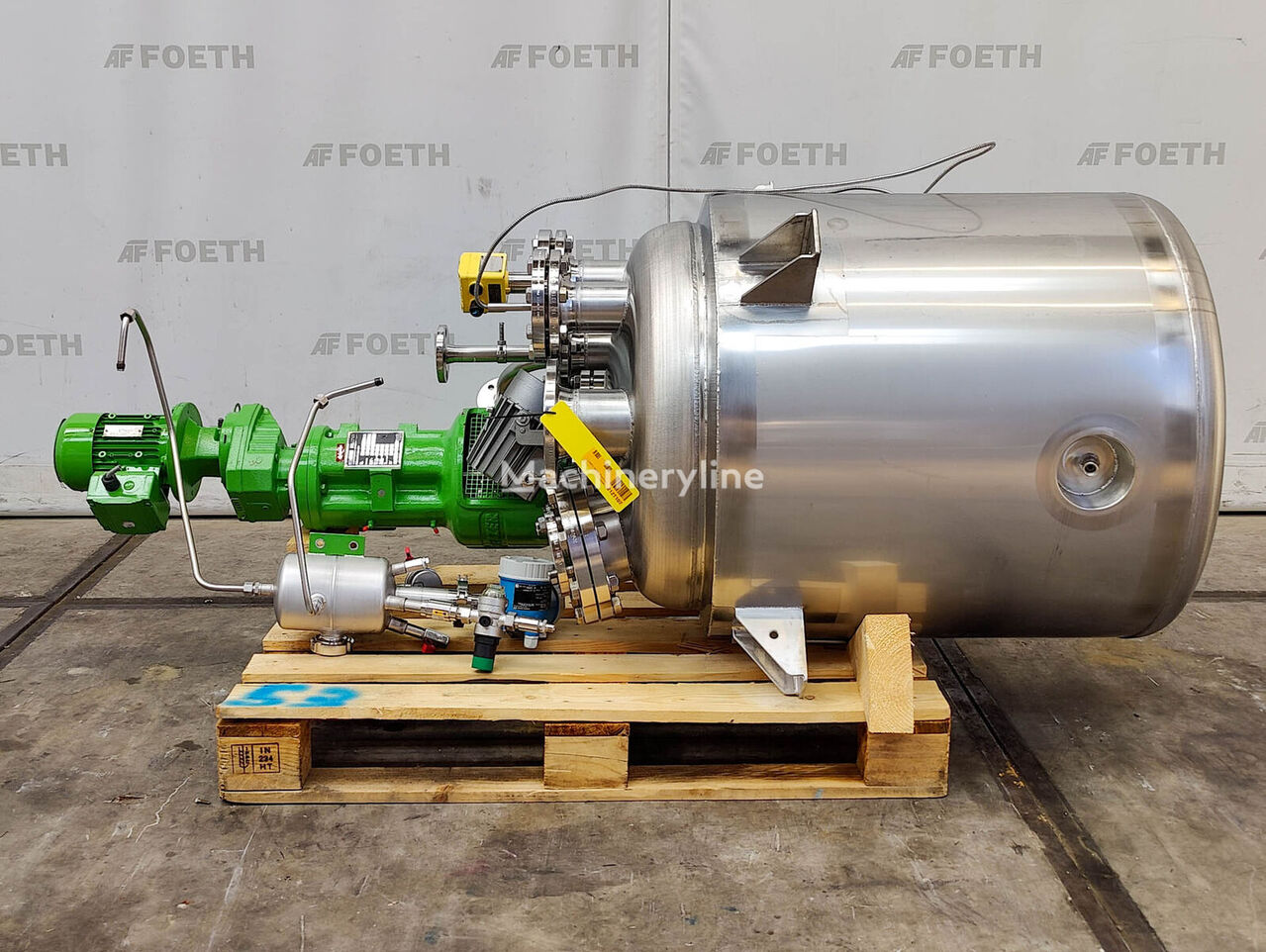

This Hinke Tankbau GmbH Tank Container is a vertical pressure vessel — sometimes referred to as a pressure tank — designed for the storage, mixing, and processing of liquids under controlled pressure or vacuum conditions. Hinke Tankbau GmbH is a German manufacturer specialising in stainless steel tank and vessel fabrication, supplying equipment to the food, chemical, and pharmaceutical industries, among others.

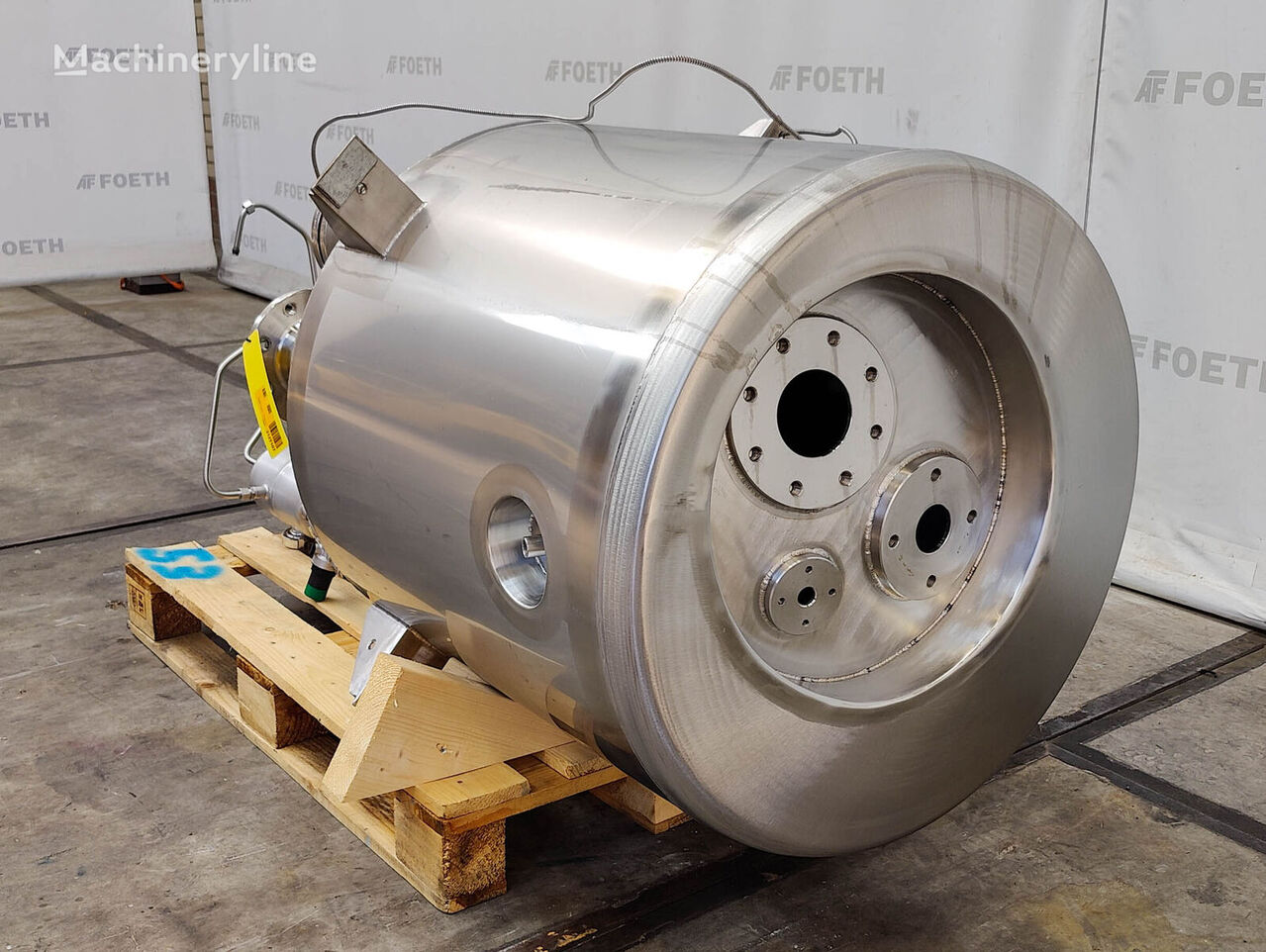

This vessel dates from 2002 and is offered used from stock in Barneveld, Netherlands. It is constructed from stainless steel grade 1.4571 (AISI 316Ti), a titanium-stabilised austenitic alloy well suited to corrosive media and elevated temperatures. The tank has a capacity of 340 litres and a cylindrical body measuring 700 mm in diameter by 1,000 mm in height, fitted with dished top and dished bottom heads. The unit is mounted on legs and occupies a floor area of 0.9 × 0.9 metres, with a total installed height of 2.3 metres.
The working pressure is rated at 1 bar, and the vessel is also suitable for vacuum operation. Maximum permissible temperature is 120 °C. The vessel has been assessed by a notified body (TÜV) and carries CE marking, confirming it meets the relevant European pressure equipment requirements.
Process connections are comprehensive. The top head carries a DN 100 connection and two DN 25 connections. Outlet connections on the body or bottom include DN 80, DN 50, and DN 25 ports, providing flexibility for pipework integration.

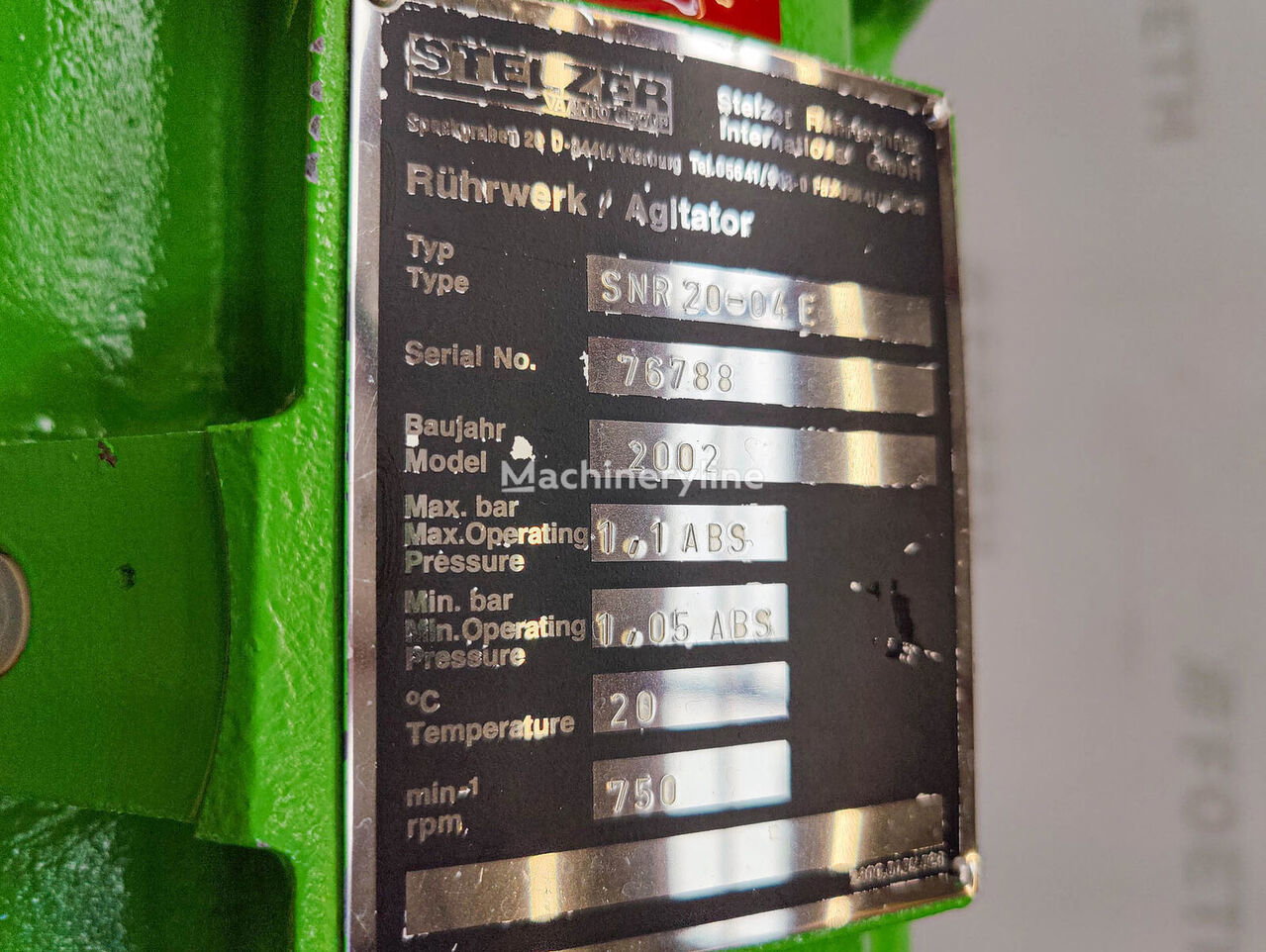

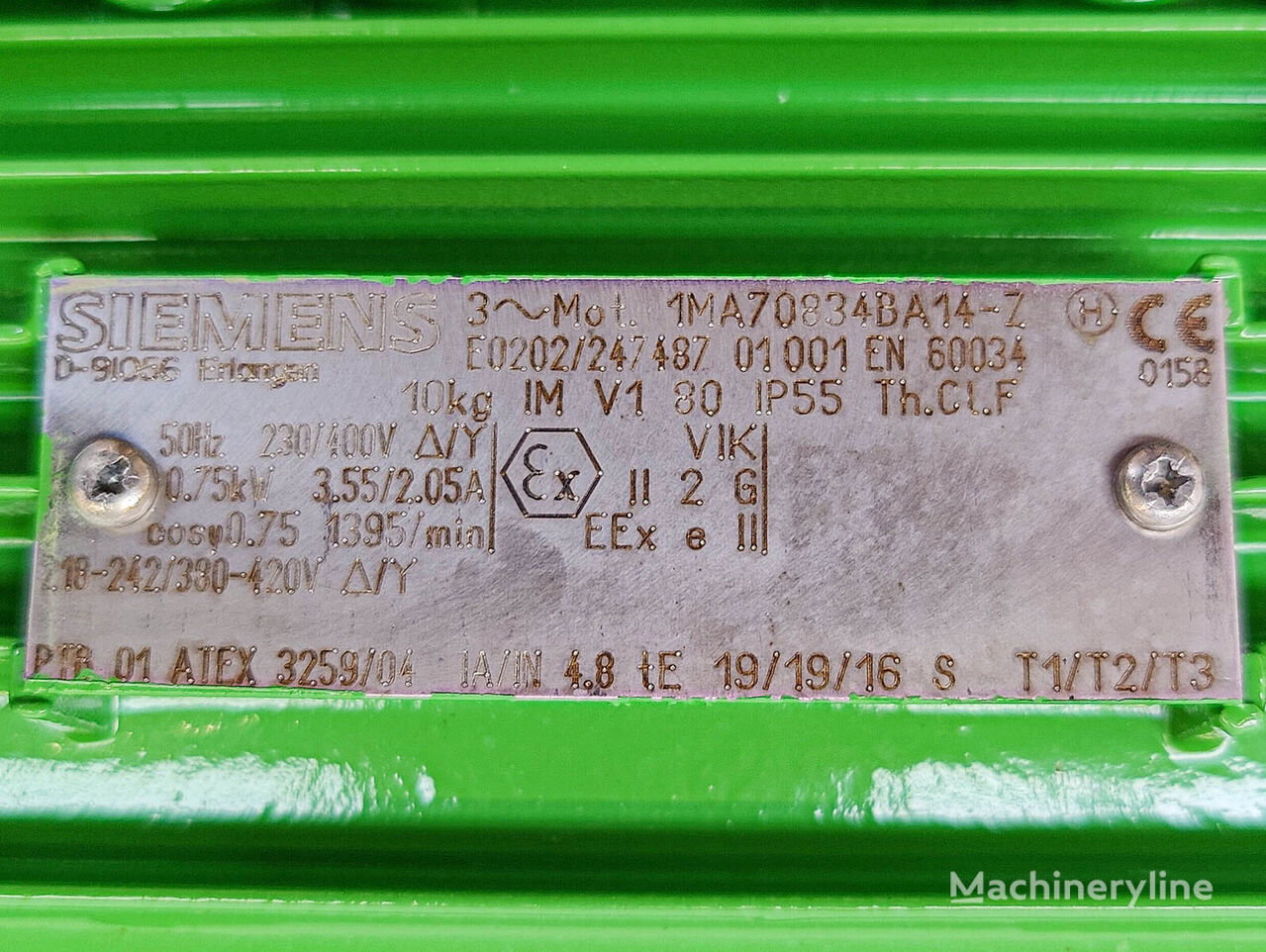

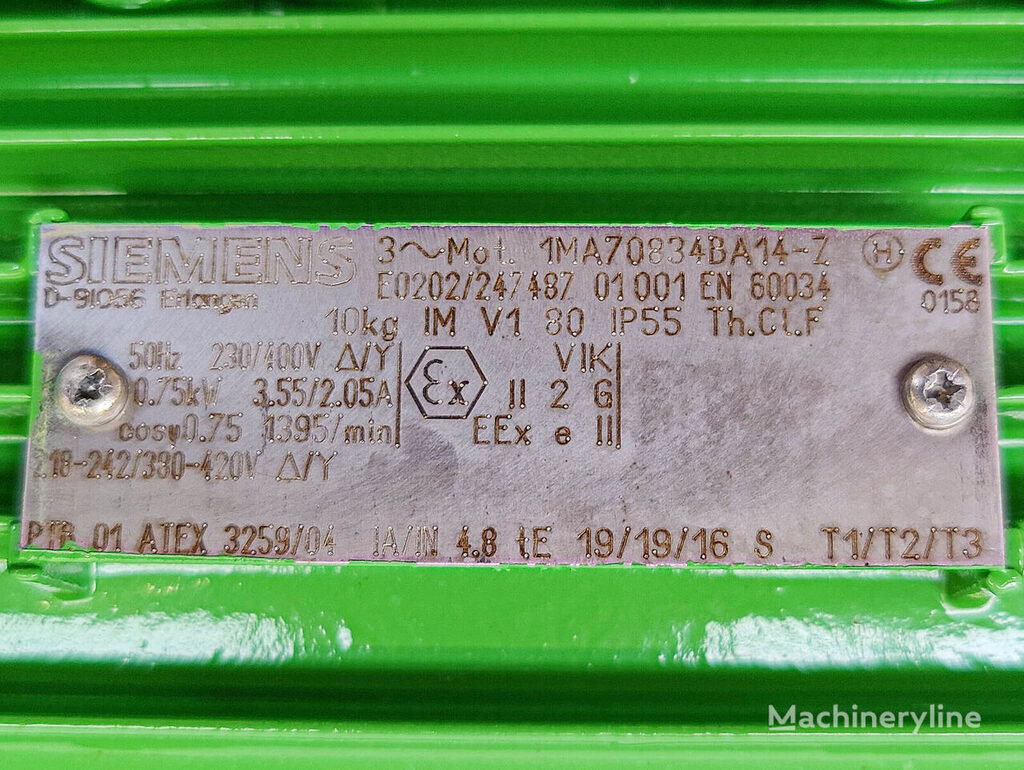

The tank is equipped with a paddle stirrer driven by a 0.75 kW motor rated for 230/400 V supply, with a mixing shaft speed of 750 rpm. This configuration makes the vessel suitable for blending, suspension, or agitation duties in addition to straightforward storage. Internal reference number for this unit is 8493.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
