1994 - Kresta 250 Ltr Tank Container()
- Listing No
- 1177301
- Year
- 1994
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: Vorlagebehalter No: 94146-3 Working pressure: 3.2 Bar Vacuum possible: check Working pressure jacket: 6 Bar Vacuum possible jacket: check Material: Stainless steel Volume: 250 Ltr Pressure: 3.2 Bar Vacuum: check Notified body: TÜV Capacity: 250 Ltr Vessel sizes: dia. 750x1142 mm Dished top: check Top connections: DN150, DN100, DN80 (3x), DN50 (2x) Outlet: DN80, DN50 Max. temperature: 25/40 °C With jacket: check (20 Ltr.) Mounted on legs: check Floorspace: 1,1x1,1 m Total height: 2,2 m merk: Kresta General Pressure Main Features Specified Features - Pressure vessel Information
About this machine
This Kresta 250 Ltr Tank Container is a used tank and container — sometimes referred to as a pressure vessel — manufactured in 1994 and currently located in Barneveld, Netherlands. This type of equipment is used for the storage, holding, and processing of liquids under controlled pressure or vacuum conditions, and finds application across food, chemical, pharmaceutical, and industrial process industries. Kresta is a recognised manufacturer of stainless steel process vessels and related equipment, supplying industries that require hygienic or pressure-rated containment.

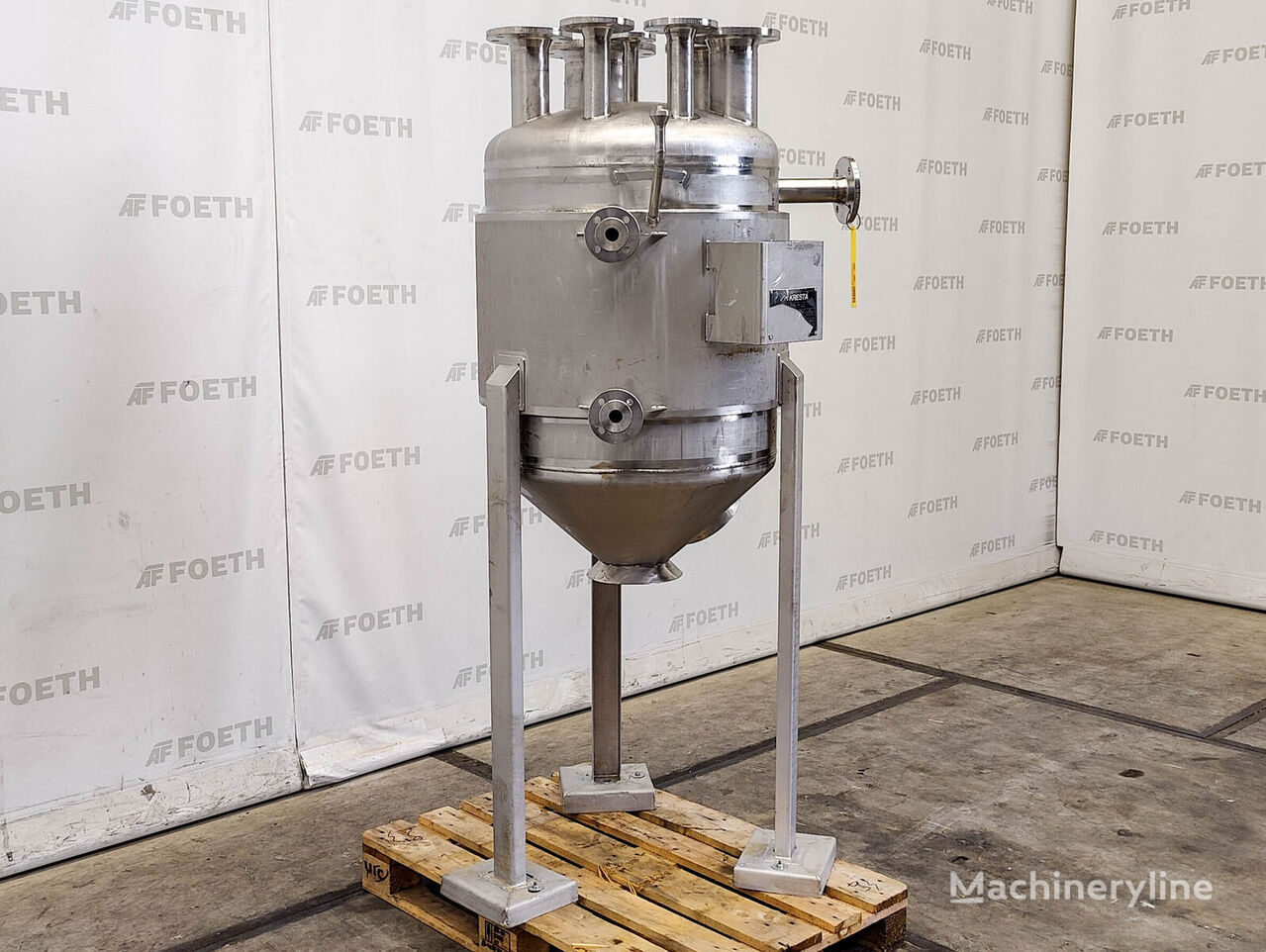

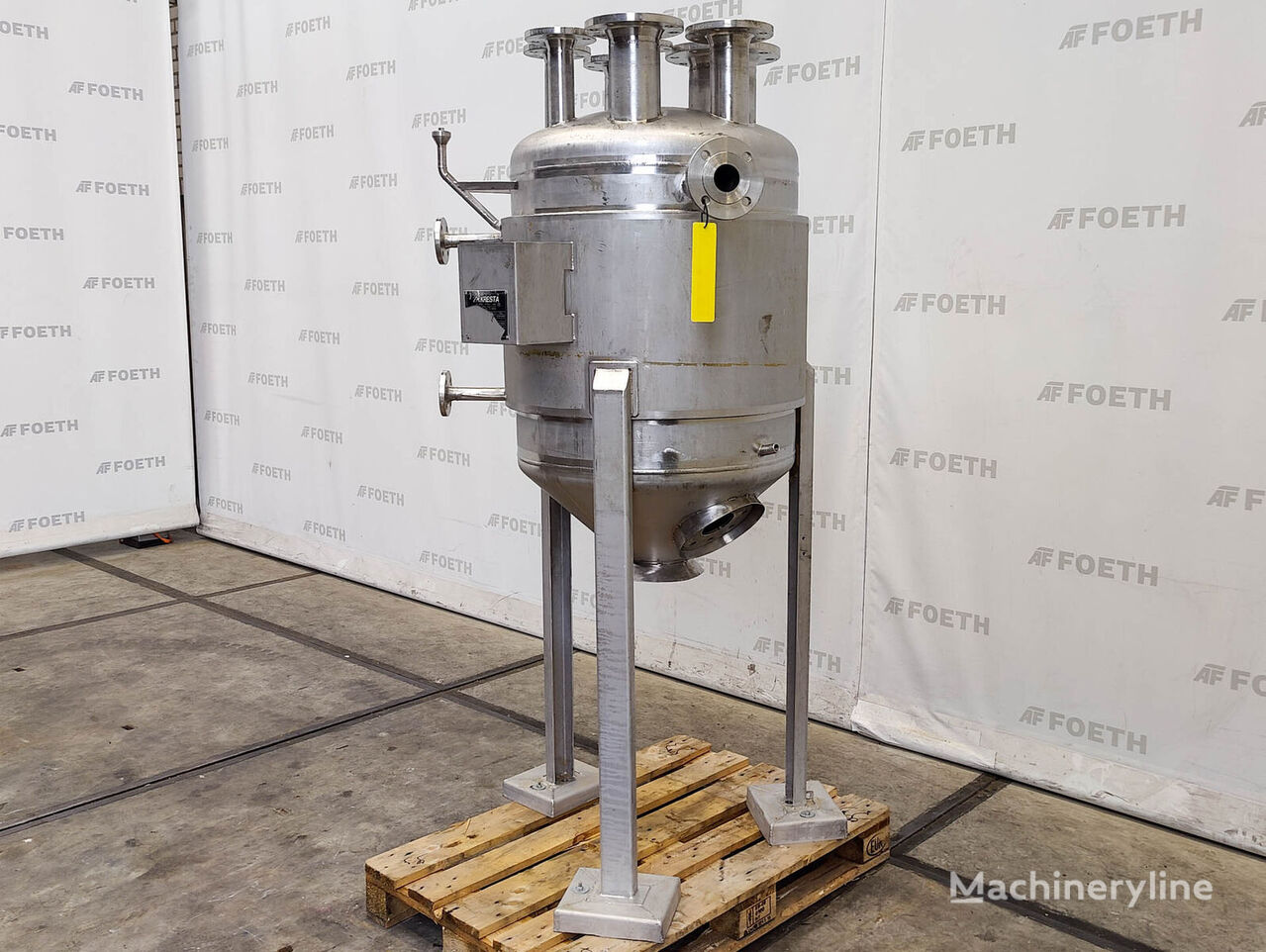

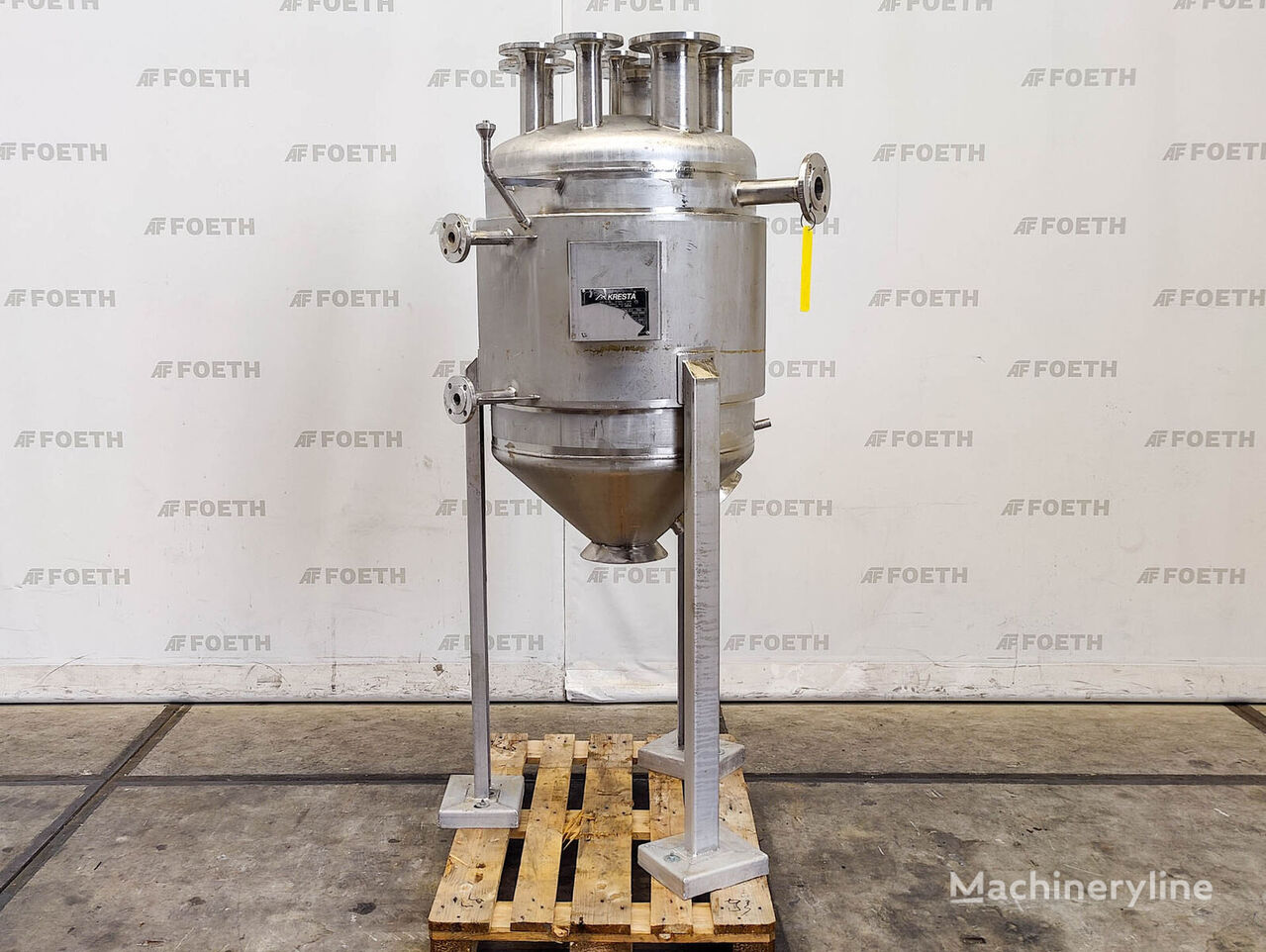

The vessel is designated as a Vorlagebehalter (feed or supply tank), bearing the serial number 94146-3. It is constructed from stainless steel and has a volumetric capacity of 250 litres, with vessel dimensions of 750 mm diameter by 1,142 mm in height. The tank is fitted with a dished top and is mounted on legs, giving a total installed height of 2.2 metres and a floor footprint of 1.1 × 1.1 metres.
On the pressure side, the vessel is rated to a working pressure of 3.2 bar, with vacuum capability also confirmed. The jacket — which has a volume of 20 litres — is rated to a working pressure of 6 bar and is likewise vacuum-capable, enabling temperature-controlled processing through an external heating or cooling medium. The maximum operating temperature is rated at 25/40 °C. The vessel has been certified by TÜV as the notified body, confirming compliance with applicable pressure equipment regulations.

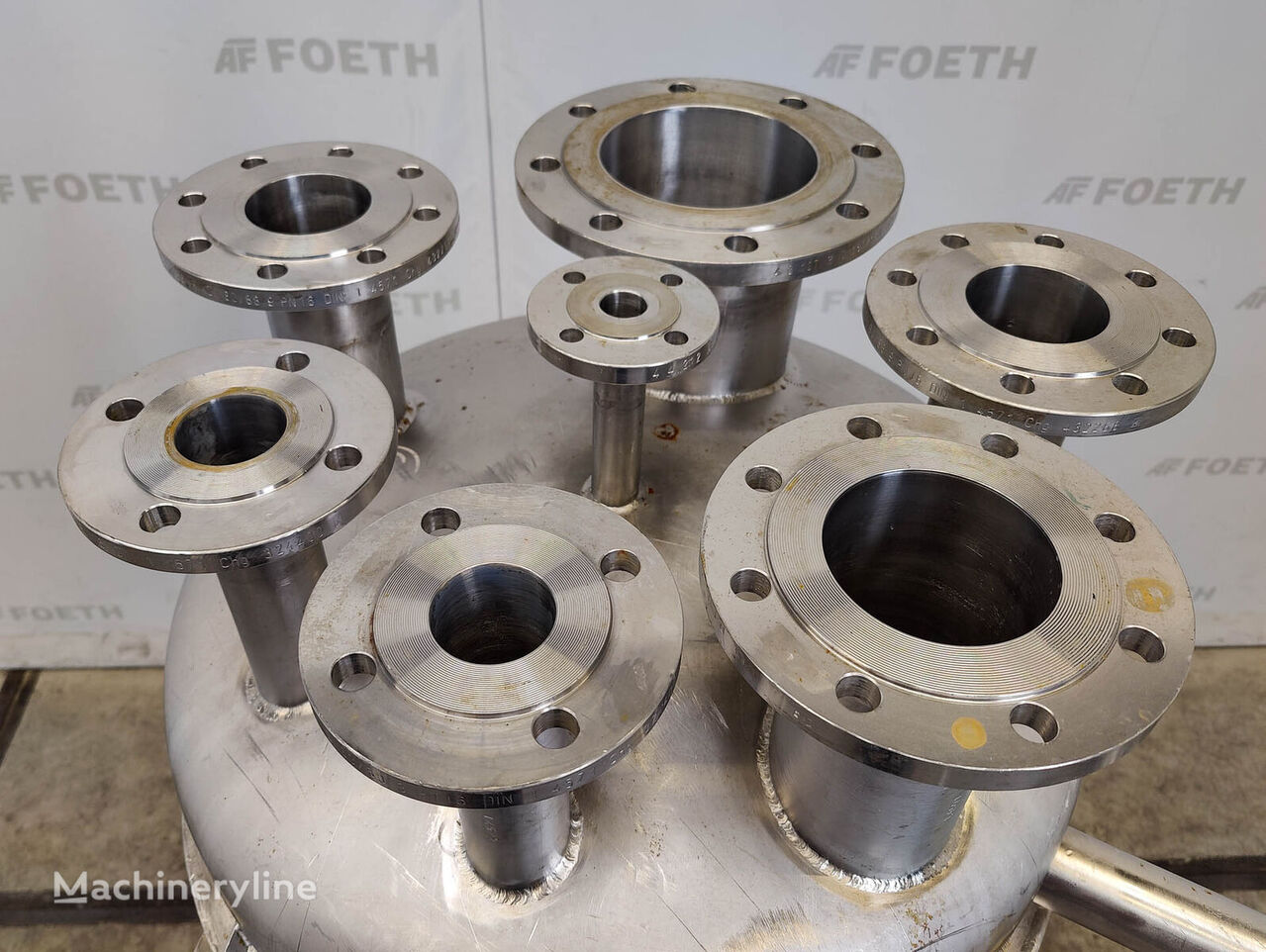

The tank is well-equipped with connection points: the top carries a DN150, a DN100, three DN80, and two DN50 nozzles, providing versatility for inlet, instrumentation, and process line connections. Outlet connections are sized at DN80 and DN50.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
