1986 - Paul Schwingel Pressure vessel Tank Container()
- Listing No
- 1177628
- Year
- 1986
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 8183-3 Working pressure: 3.2 Bar Vacuum possible: check Number of vertical pressure tanks: 1 Material: Stainless steel 1.4571 (316Ti) Volume: 23120 Ltr Pressure: 3.2 Bar Vacuum: check Capacity: 23.120 Ltr Vessel sizes: dia. 2400x4000mm Dished top: check Dished bottom: check Manhole: dia. 600mm Top connections: 6x dia. 100mm + 2x dia. 150mm Outlet: dia. 150mm + dia. 100mm Max. temperature: 65 Degr. C Floorspace: 2,8x2,8 M Total height: 5,5 M merk: Paul Schwingel General Pressure Main Features Specified Features - Pressure vessel Information
About this machine
This Paul Schwingel pressure vessel is a vertical tank and container designed for the storage and processing of liquids under controlled pressure conditions. Sometimes referred to as a pressure tank, this type of vessel is widely used in the food, beverage, chemical, and pharmaceutical industries wherever hygienic, pressure-rated storage capacity is required. Paul Schwingel is a recognised German manufacturer of stainless steel process equipment, supplying tanks and vessels to the dairy, brewing, and food-processing sectors.
This single vertical unit dates from 1986 and is offered in used condition from its current location in Barneveld, Netherlands. It is constructed from stainless steel grade 1.4571, the European equivalent of AISI 316Ti, a titanium-stabilised austenitic steel chosen for its excellent corrosion resistance and suitability for aggressive or high-purity media.

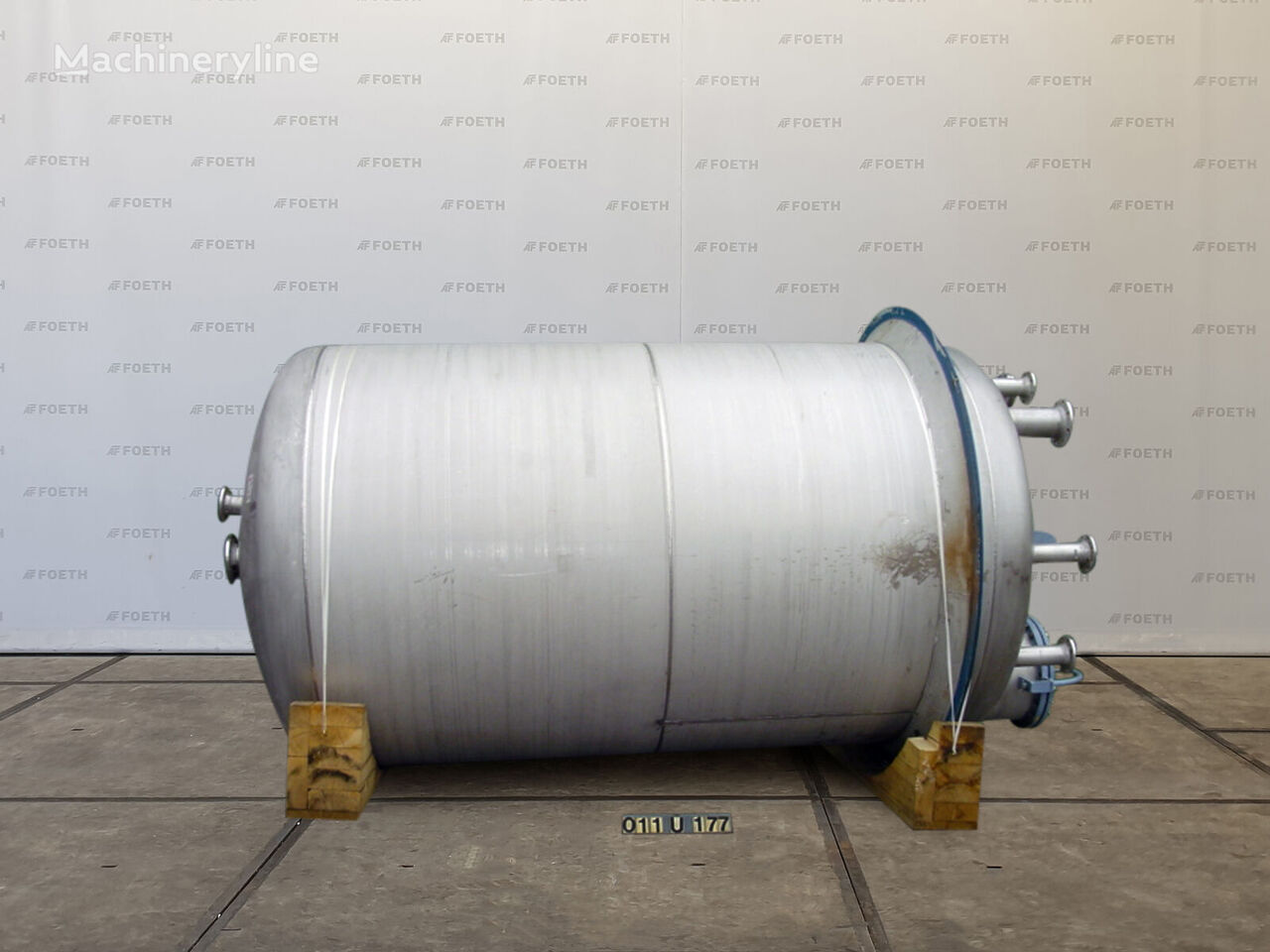

The vessel has a capacity of 23,120 litres and a cylindrical body measuring 2,400 mm in diameter by 4,000 mm in length, with both a dished top and a dished bottom. Overall installed height is 5.5 metres, and the unit occupies a floor footprint of 2.8 × 2.8 metres. A 600 mm diameter manhole provides internal access for inspection and cleaning.

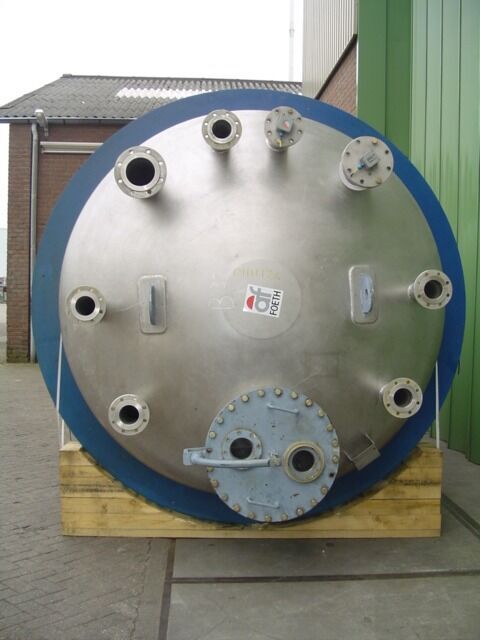

The working pressure is rated at 3.2 bar, and the vessel is noted as capable of vacuum operation. Maximum operating temperature is 65 °C. The connection arrangement is extensive: the top of the vessel carries six nozzles of 100 mm diameter and two nozzles of 150 mm diameter, while the outlet provisions comprise one 150 mm and one 100 mm connection.

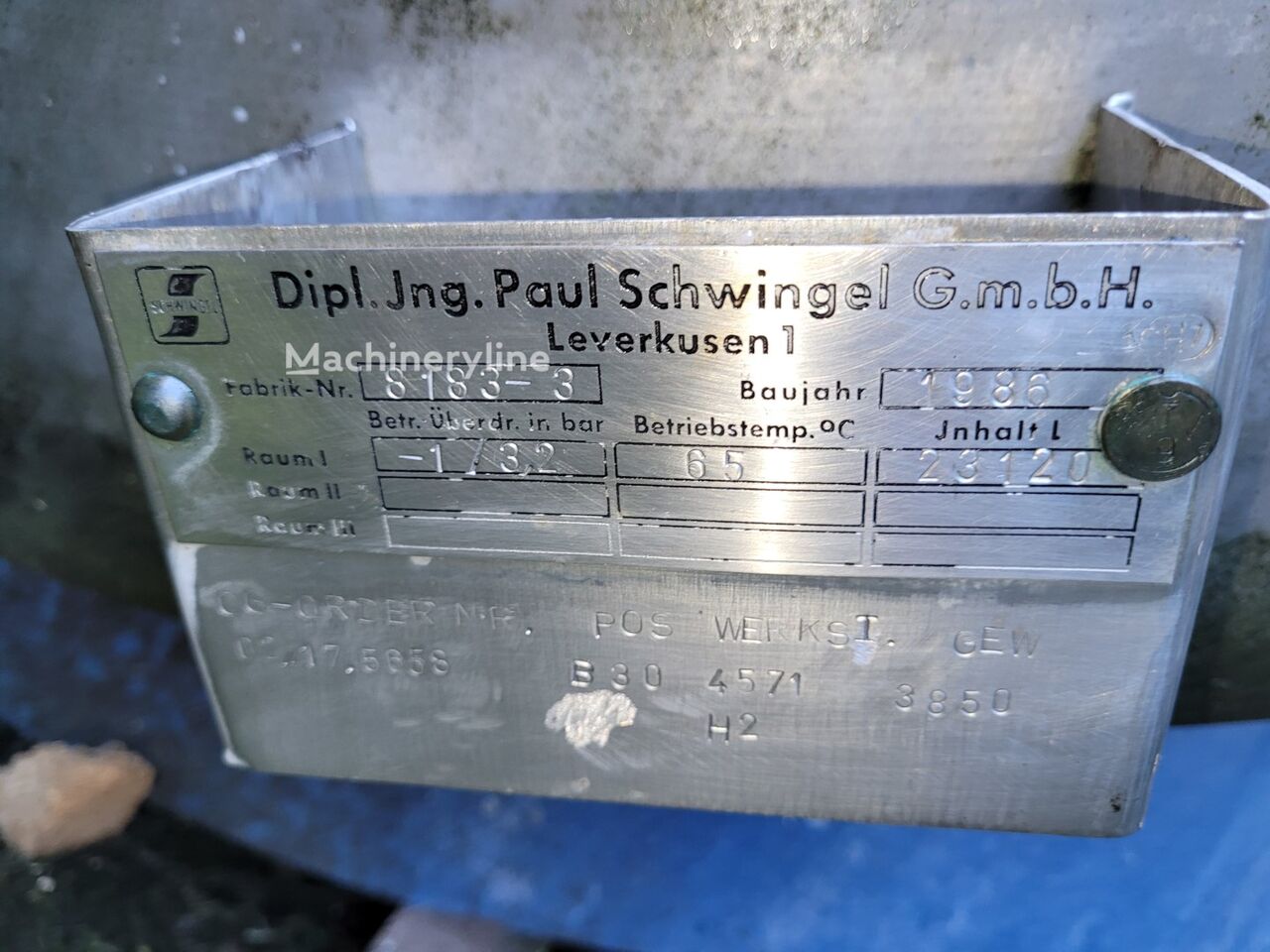

The internal reference number for this listing is 8183-3.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
